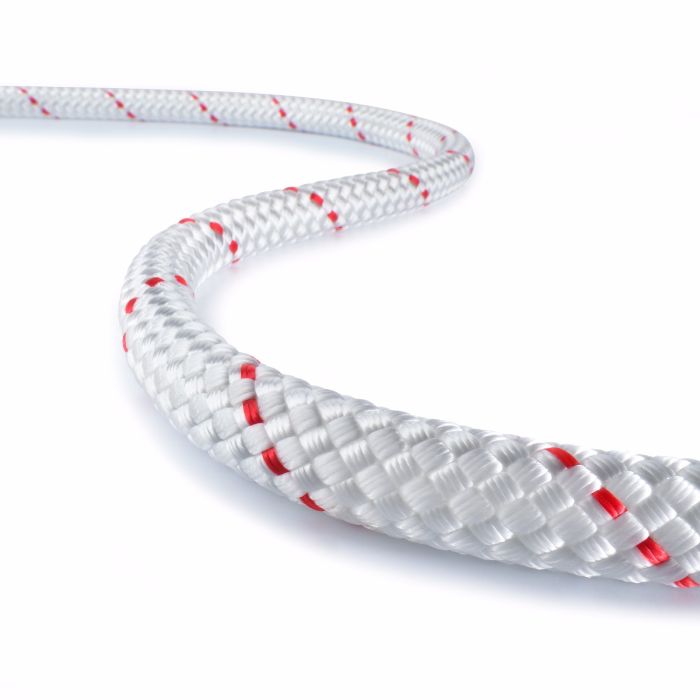

Patron
Our Patron ropes are static ropes certified to EN1891A. Their strong points are low weight and high breaking strength
Specifications
Standards:
- EN 1891A (10, 10.5, 11, 12, 14 mm)
- EN 1891B (9 mm)
Core: polyamide
Cover: polyamide
Braid: 32
Color Images
White/Blue/Red - made to order
9 mm
-
White/Blue - made to order
10 mm
-
Red/Black - made to order
10 mm
-
White/Blue/Red
10.5 mm
-
Red
10.5 mm
-
Blue
10.5 mm
-
Orange/Black
10.5 mm
-
Black
10.5 mm
-
White/Red
11 mm
-
Black
11 mm
-
Blue
11 mm
-
Red
11 mm
-
Red/Black
11 mm
-
Olive
11 mm
-
Black/Grey
11 mm
-
Red/Black - made to order
12 mm
-
Green/Black - made to order
12 mm
-
Black - made to order
14 mm
-
White/Blue/Red - made to order
9 mm
-
White/Blue - made to order
10 mm
-
Red/Black - made to order
10 mm
-
White/Blue/Red
10.5 mm
-
Red
10.5 mm
-
Blue
10.5 mm
-
Orange/Black
10.5 mm
-
Black
10.5 mm
-
White/Red
11 mm
-
Black
11 mm
-
Blue
11 mm
-
Red
11 mm
-
Red/Black
11 mm
-
Olive
11 mm
-
Black/Grey
11 mm
-
Red/Black - made to order
12 mm
-
Green/Black - made to order
12 mm
-
Black - made to order
14 mm
It is low weight and high breaking strength that give the static ropes of our Patron series their exceptional appeal.
Our Patron range ropes are certified to EN 1891B (9 mm rope) and EN 1891A (10 mm, 10.5 mm, and 11 mm ropes), respectively. Due to the high strength and low tearing risk of Patron ropes, they are the right choice for different applications. The twisted 32-strand braided cover provides high dirt resistance, better grip, and high abrasion protection.
Features:
- Lightweight
- High breaking load
- Excellent grip and handling
- 11.0 mm certified with PETZL ASAP (B71, B71AAA, B071AA00), only with ASAP’Sorber 20+40 or Absorbica according to EN 353-2
- 11.0 mm certified with PETZL ASAP LOCK (B071BAA00) in use with ASAP’Sorber AXESS according to EN 353-2
- 11.0 mm certified with Anthron DSD+ according to EN 341 A
- 11.0 mm certified with Climbing Technology Sparrow 200R according to EN341-2A
- 12.0 mm certified with TEUFELBERGER Ropstop 3 according to EN 353-2
| Diameter [mm] | Diameter [inch] | Weight [g/m] | Weight [lbf/100] | Shrinkage [%] | Elongation 50-150kg [%] | Min. breaking strength, free length [daN] | Min. breaking strength, free length [lbf] | Min. breaking strength, with figur 8 knot [daN] | Min. breaking strength, with figur 8 knot [lbf] | Min. breaking strength, sewn [daN] | Min. breaking strength, sewn [lbf] | Cover [%] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9 | 5/16 | 51 | 3.43 | 3 | 3 | 2 000 | 4 495 | 1 300 | 2 920 | - | - | 41 |
| 10 | 3/8 | 66 | 4.44 | 3 | 3 | 2 900 | 6 515 | 1 600 | 3 595 | 2 500 | 5,620 | 40 |
| 10.50 | 13/32 | 72 | 4.84 | 4 | 3 | 3 200 | 7 190 | 1 800 | 4 045 | 2 600 | 5,845 | 46 |
| 11 | 7/16 | 75 | 5.04 | 4 | 3 | 3 300 | 7 415 | 1 800 | 4 045 | 2 700 | 6,070 | 35 |
| 12 | 1/2 | 92.30 | 6.19 | 4 | 3 | 3 800 | 8 540 | 2 400 | 5,395 | 3 400 | 7 640 | 36 |
| 14 | 9/16 | 123 | 8.20 | 4 | 3 | 4 200 | 9 440 | 2 800 | 6 290 | 3 800 | 8 540 | 41 |
