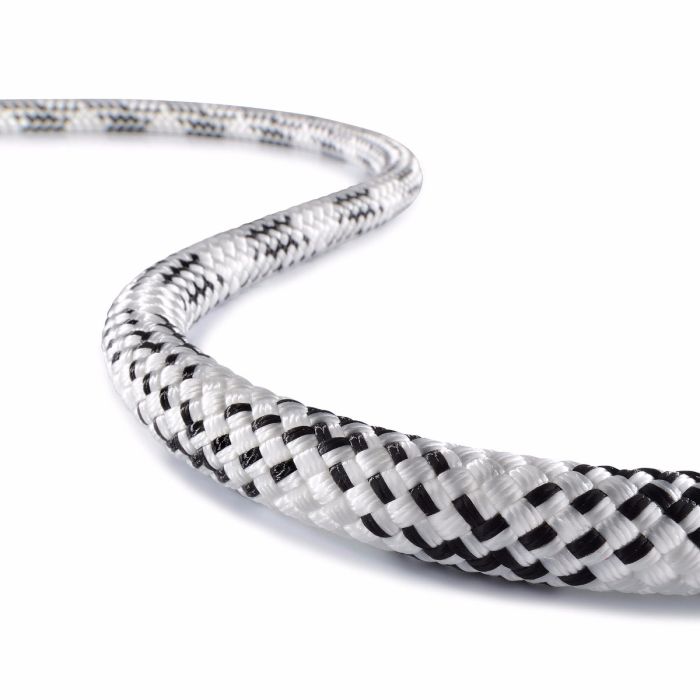

Patron PLUS

Static rope

Patron PLUS is certified to EN 1891A and was developed specifically to withstand heavy loads such as encountered on motor winches.

Specifications

Standard: EN 1891A
Core: polyamid
Cover: polyamid
Braid: 32

Made in

Color Images

  • White/Yellow

    10 mm

  • Black/White

    10 mm

  • Black

    10.5 mm

  • White/Red

    10.5 mm

  • White/Red

    11 mm

  • White/Black

    11 mm

  • Black/White

    11 mm

  • Olive

    11 mm

  • Black

    11 mm

  • Red

    11 mm

  • Blue
    11 mm


Dirt, climatic influences, heavy loads, and dimensional stability requirements raised the requirements.When designing Patron PLUS, we focused on making it extremely robust and compact.

Subsequently, these properties were documented and demonstrated in numerous tests at our customers. Patron PLUS complies with EN 1891A and comes with a sewn termination or a figure eight knot.

The advantages of this static rope are:

  • consists of high quality polyamide
  • high breaking forces despite its extremely low weight
  • robust and compact
  • protection against abrasion and ingress of dirt
  • soft handling
  • easy to transport and store

Info: The 11mm version of Patron PLUS, in combination with the CTL Sparrow (2D646) descender, is certified to EN 341 A.

Diameter
[mm]
Diameter
[inch]
Weight
[g/m]
Weight
[lbs/100']
Shrinkage
[%]
Elongation 50-150kg
[%]
Min. breaking strength, free length
[daN]
Min. breaking strength, free length
[lbf]
Min. breaking strength, with figur 8 knot
[daN]
Min. breaking strength, with figur 8 knot
[lbf]
Min. breaking strength, sewn
[daN]
Min. breaking strength, sewn
[lbf]
Cover
[%]
10 3/8 66 4.44 3 3 2,900 6,525 1,600 3,590 2,200 5,625 40
10.50 13/32 72 4.85 4 3 3,200 7,190 1,800 4,040 2,600 5,850 46
11 7/16 75 5.04 4 3 3,300 7,425 1,900 4,275 2,700 6,075 35
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
