Multiline II

Statisches Seil

Multiline II stands for exceptional durability and strength in conjunction with extremely low weight, unlike other commercially available twisted static ropes.

Specifications

Material: polyolefin, polyester
Braid:



Made in

Color Images


  • White/Orange

    All Diamaters

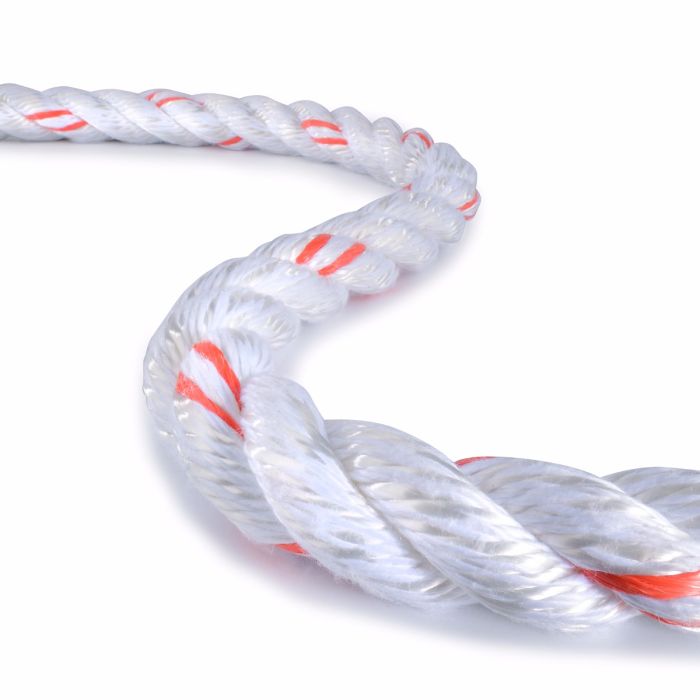

Multiline II is a twisted rope composed of three strands with filament cover around a polyolefin core. The cover of the strands lends to this static rope a fuzzy feel and makes it easier to grip, even when wet. The core makes the rope firm and round without adding weight. This gives Multiline II good abrasion resistance and handling characteristics.

Multiline II comes in nine different diameters and is easily identified by its distinctive orange markers.

This static rope features the following advantages:

  • the filaments in the strand cover improve grip and knot holding properties, even when wet
  • a polyolefin core keeps the strands firm and round, improving knot holding ability and hand
  • available in sizes from 8 mm to over 28 mm
  • easy to splice
  • consistently supple feel throughout the service life of the rope
  • ideal for rigging
Diameter
[mm]
Diameter
[inch]
Weight
[g/m]
Weight
[lbs/100']
Min. breaking strength, free length
[daN]
Min. breaking strength, free length
[lbf]
8 5/16 39.6 2.66 825 1,860
10 3/8 62.5 4.20 1290 2,900
11 7/16 77.40 5.20 1,775 4,000
12 1/2 99.7 6.70 2,265 5,100
16 5/8 154.7 10.40 3,780 8,500
19 3/4 215.7 14.50 4,490 10,100
22 7/8 266.3 17.90 5,780 13,000
25 1.00 313.9 21.10 6895 15,500
28 1 1/8 447.8 30.10 9,340 21,000
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
