KM III
KM-III from TEUFELBERGER boasts a unique polyester cover, which makes it suitable for a variety of safety & rescue tasks.
Specifications
Standards:
- EN 1891A (9.5, 10, 10.5, 11 and 13 mm)
- EN 1891B (8 mm)
- NFPA 1983:2012 (8, 9.5, 10.5, 11, 13 and 14.5 mm)
Core: polyamide
Cover: polyester
Braid: 32
Color Images
-
White
8-14.5 mm
-
Red
9.5-14.5 mm
-
Safety Green
9.5-14.5 mm
-
Blue
9.5-14.5 mm
Black
8-14.5 mm
-
OD Green
9.5-14.5 mm
Orange
9.5-14.5 mm
Yellow
9.5-14.5 mm
-
White
8-14.5 mm
-
Red
9.5-14.5 mm -
Safety Green
9.5-14.5 mm
-
Blue
9.5-14.5 mm
Black
8-14.5 mm
-
OD Green
9.5-14.5 mm
-
Orange
9.5-14.5 mm
-
Yellow
9.5-14.5 mm

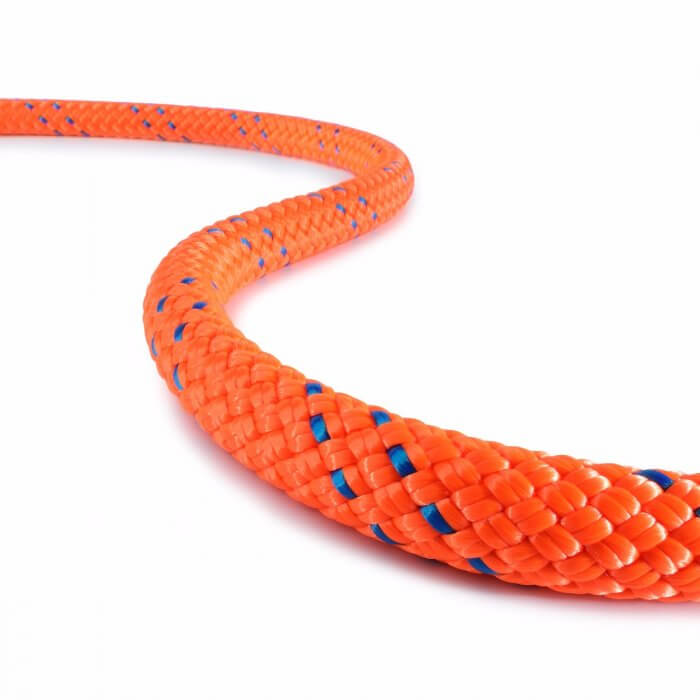

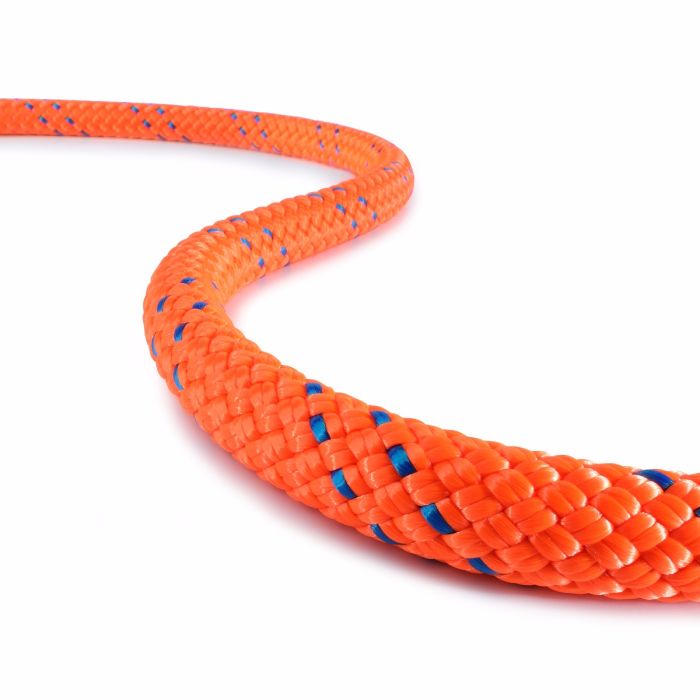

KM-III is an exceptional static rope for rappelling, caving, rescue, top roping, fixed rope applications, hauling, and life safety applications – a true jack-of-all-trades.
The polyester cover of KM-III is balanced with a polyamide core to limit rotation, bouncing, and stretch. Our KM-III is NFPA and CE certified. Thirty-two bobbins produce the right cover for the unique demands required of this static rope and the optimum cover/core ratio. This creates an incredibly smooth cover, higher tensile strengths, and superior handling characteristics.
Our static KM-III excels with:
- 32-strand cover for optimum cover/core ratio
- polyester over polyamide with a balanced, torque free construction
- excellent handling and knot holding characteristics
- high abrasion resistance
- excellent UV protection
| Standard | Diameter [mm] | Diameter [inch] | Elongation at 1.35 kN [%] | Elongation at 2.7 kN [%] | Elongation at 4.4 kN [%] | Approved class |
|---|---|---|---|---|---|---|
| NFPA 1983:2012 | 8 | 5/16 | 4.30 | 7.60 | 11.30 | Fluchtseil/Escape rope |
| NFPA 1983:2012 | 9.50 | 3/8 | 3.50 | 6.20 | 9.20 | Technische Anwendung/Technical use |
| NFPA 1983:2012 | 10 | N/A | 1.80 | 4.20 | 6.70 | Technische Anwendung/Technical use |
| NFPA 1983:2012 | 10.50 | N/A | 3.90 | 7 | 9.70 | Technische Anwendung/Technical use |
| NFPA 1983:2012 | 11 | 7/16 | 2.40 | 4.20 | 6.30 | Technische Anwendung/Technical use |
| NFPA 1983:2012 | 13 | 1/2 | 2.80 | 4.50 | 7 | Generelle Anwendung/Gerneral use |
| NFPA 1983:2012 | 14.50 | 5/8 | 2.50 | 3.40 | 5.20 | Generelle Anwendung/Gerneral use |
| Standard | Diameter [mm] | Diameter [inch] | Weight [g/m] | Weight [lbf/100] | Shrinkage [%] | Elongation 50-150kg [%] | Min. breaking strength, free length [daN] | Min. breaking strength, free length [lbf] | Min. breaking strength, sewn [daN] | Min. breaking strength, sewn [lbf] | Cover [%] | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EN 1891 B | 8 | 5/16 | 59 | 4 | < 5 | 3 | 2 275 | 5 120 | 1 895 | 4 260 | 52 | |
| EN 1891 A | 9.50 | 3/8 | 65 | 4.40 | < 5 | 1.80 | 2 790 | 6 275 | 1 895 | 4 260 | 47 | |
| EN 1891 A | 10 | Nicht verfügbar | 65 | 4.40 | < 5 | 1.70 | 2 790 | 6 275 | Nicht verfügbar | Nicht verfügbar | 52 | |
| EN 1891 A | 10.50 | Nicht verfügbar | 84 | 5.65 | < 5 | 1.60 | 3 335 | 7 500 | Nicht verfügbar | Nicht verfügbar | 48 | |
| EN 1891 A | 11 | 7/16 | 91 | 6.12 | < 5 | 1.80 | 3 765 | 8 465 | 3 085 | 6 935 | 45 | |
| EN 1891 A | 13 | 1/2 | 117 | 7.90 | < 5 | 1.80 | 5 015 | 11 275 | 3 680 | 8 265 | 47 | |
| EN 1891 A | 14.50 | 5/8 | 152 | 10.20 | < 5 | 1.50 | 5 815 | 13 075 | 3 925 | 8 830 | 47 |
