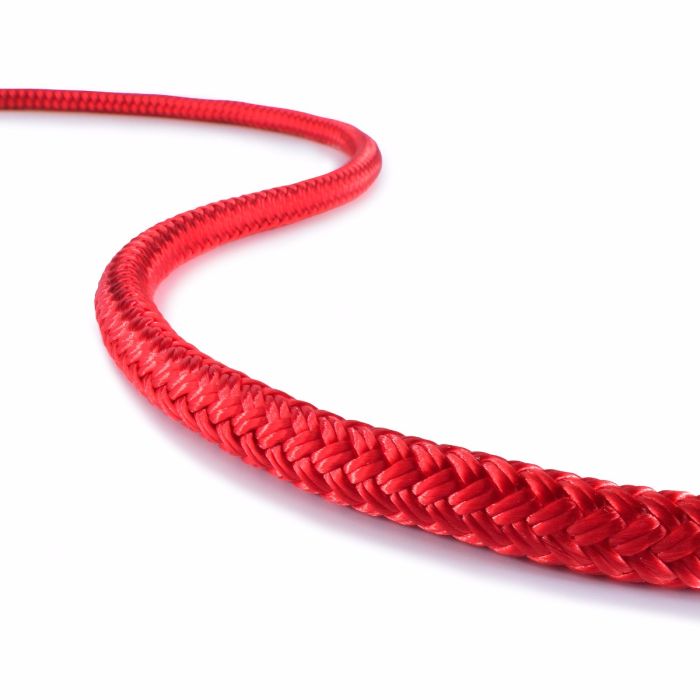

Orion 500
Allround rope
Orion 500 is the "jack-of-all-trades" among our safety and rescue ropes. Its main strengths are good grip and spliceability.
Specifications
Core: polyester
Cover: polyester
Braid: 16
Made in
Color Images
Green
All Diameters
Neonyellow/Black
All Diameters
Navy
All Diameters
Neongreen/Black
All Diameters
Red
All Diameters
Pink/Black
All Diameters
Black
All Diameters
Purple/Black
All Diameters
Orion 500 is an allround rope from TEUFELBERGER and can be used for a variety of safety and rescue tasks.
This allround rope consists of 100% polyester. The braided 16-plait cover and the 8-plait core ensure good grip and ease of splicing.
Our Orion 500 comes in various diameters and stylish colors.
| Diameter [mm] | Diameter [inch] | Weight [g/m] | Weight [lbf/100'] | Min. breaking strength, free length [daN] | Min. breaking strength, free length [lbf] | |
|---|---|---|---|---|---|---|
| 2 | 1/16 | 3 | 0.20 | 60 | 140 | |
| 3 | 1/8 | 6 | 0.40 | 135 | 300 | |
| 4 | 5/32 | 12 | 0.81 | 360 | 810 | |
| 5 | 3/16 | 19 | 1.28 | 540 | 1,215 | |
| 6 | 1/4 | 24 | 1.61 | 720 | 1,620 | |
| 8 | 5/16 | 41 | 2.76 | 1,260 | 2,835 | |
| 10 | 3/8 | 70 | 4.70 | 1,800 | 4,050 | |
| 12 | 1/2 | 89 | 5.98 | 2,250 | 5,060 |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
