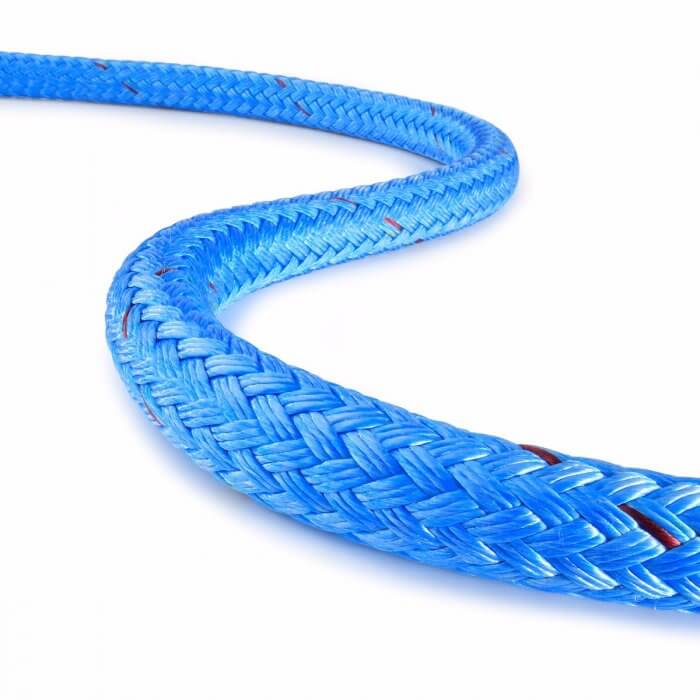

Sta-Set

Allround ropes

Sta-Set, an allround rope from TEUFELBERGER, is known for its low stretch and long service life.

Specifications

Core: polyester
Cover: polyester
Braid: 24

Made in

Color Images

  • Black

    All Diameters

  • Blue Fleck

    All Diameters

  • Green Fleck

    All Diameters

  • Blue

    All Diameters

  • Red Fleck

    All Diameters

  • Green

    All Diameters

  • White

    All Diameters

  • Red

    All Diameters

Sta-Set, our industry leading polyester double braid, is a universally utilizable safety and rescue rope. Sta-Set is ideal for all applications requiring control lines, positioning, lifting, or lowering. This allround rope is available in different color variants and diameters.

Sta-Set features:

  • long service life
  • low stretch
  • softness and flexibility
  • spliceability
Diameter
[mm]
Diameter
[inch]
Weight
[g/m]
Weight
[lbs/100']
Min. breaking strength, free length
[daN]
Min. breaking strength, free length
[lbf]
5 3/16 16.4 1.10 530 1,200
6 1/4 29.8 2 975 2,200
8 5/16 46.1 3.10 1,555 3,500
10 3/8 64.0 4.30 1,775 4,000
11 7/16 89.3 6 2,310 5,200
12 1/2 116.0 7.80 3,935 8,850
14 9/16 150.3 10.10 4,225 9,500
16 5/8 177.0 11.90 5,780 13,000
19 3/4 252.9 17 9,785 22,000
22 7/8 352.6 23.70 11,830 26,600
25 1.00 482.0 32.40 14,855 33,400
28 1 1/8 592.1 39.80 16,680 37,500
32 1 1/4 732.0 49.20 16,945 38,100
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
