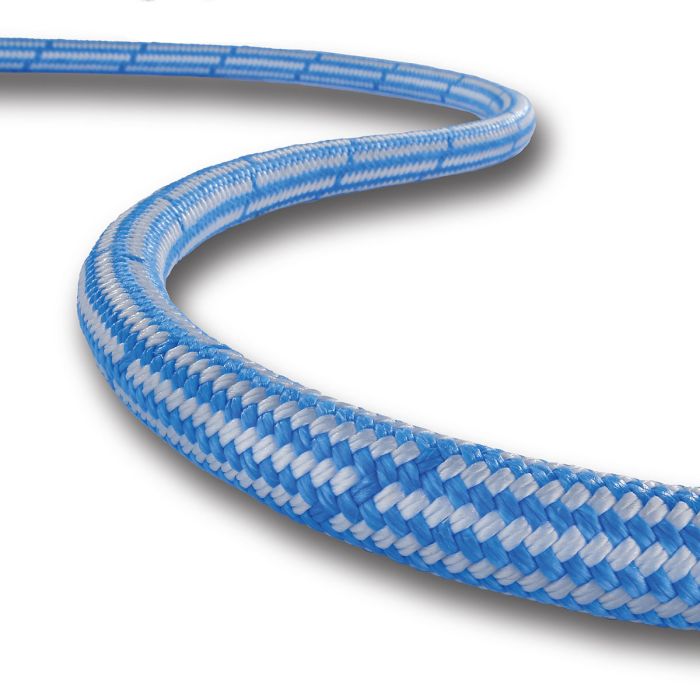

DuraTEN

Mounting rope

Our mounting rope DuraTEN consists of UHMWPE and features high breaking force, low weight and a long service life.

Specifications

Diameter: 5-72 mm
Cover: optionally with (DuraTEN Pro-P) or without PES cover
Core: UHMWPE, not stretched
Colors:

  • Cover: various colors and color combinations including longitudinal and torsion markers possible
  • Core: dark gray

Certification possible for the lifting of loads acc. to the Machinery Directive 2006/42/EC as amended

DuraTEN from TEUFELBERGER is a universally applicable rope that is ideally suitable for mounting purposes. Due to its UHMWPE core it excels with low weight combined with highest breaking force. This mounting rope can be fabricated either with a PES or a UHMWPE cover. The cover is optionally provided with torsion markers which immediately indicate any twisting of the rope during work. Longitudinal markers in the cover permit the easy visual detection of any damage in the core.


DuraTEN is available in various versions, for example provided with

  • Spliced eye with or without steel thimble
  • Potted end piece


The benefits of DuraTEN from TEUFELBERGER:

  • 1/7 of the weight of comparable steel wire ropes Maximum breaking force - comparable with the breaking force of a steel wire rope of the same diameter
  • No corrosion and/or soiling caused by rope grease
  • No danger of injury, easy and quick handling
  • Flexible design
  • Very high abrasion resistance, especially when provided with cover
  • High bending fatigue strength and long service life
  • The kinetic energy released on rope damage is considerably lower than in case of steel wire ropes.

DuraTEN is used as a mounting rope in various applications. It is especially suitable when used as

  • Rope for utility line construction
  • Pulling line in ropeway construction
  • Rope for motor winches

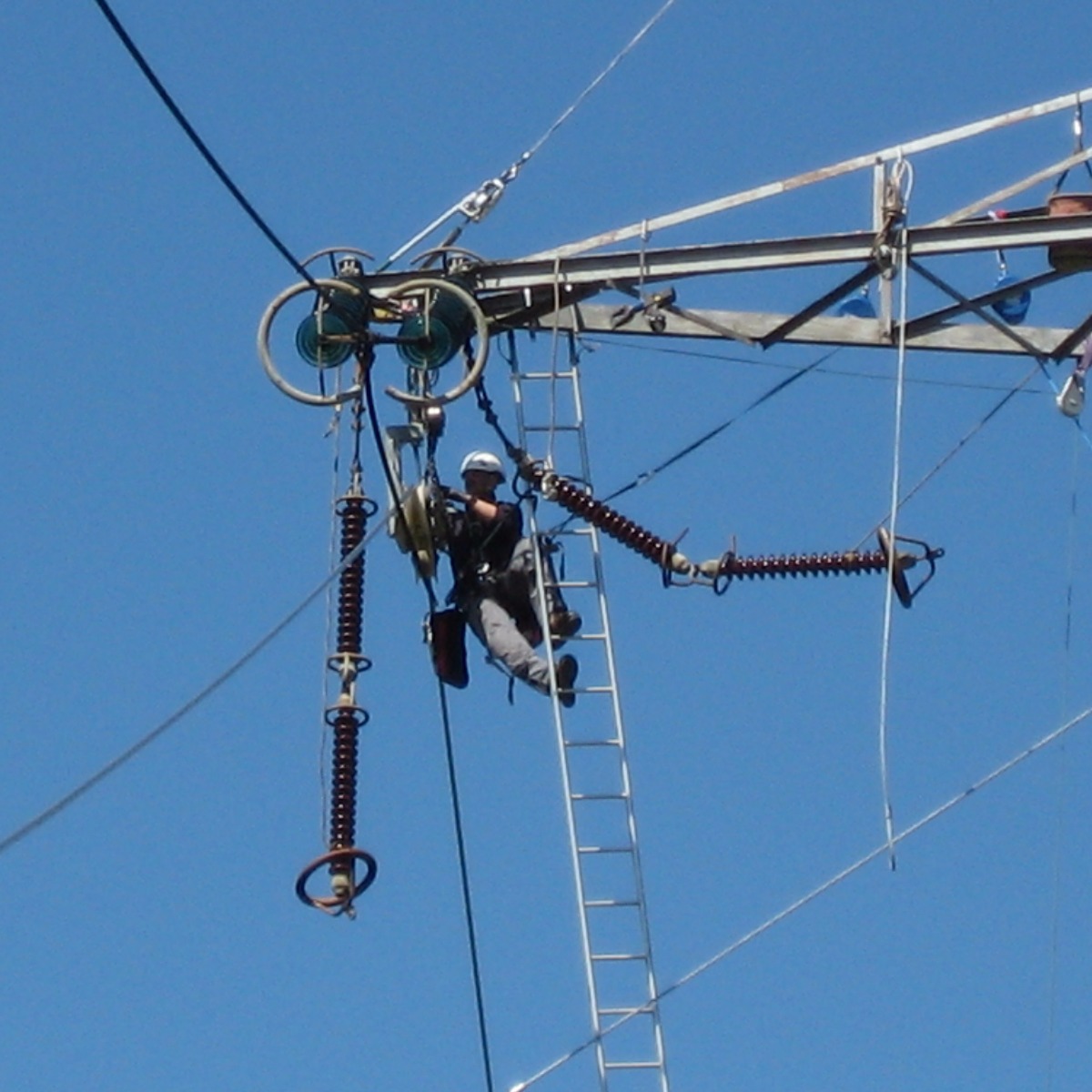

Ropes for utility line construction

For example, our DuraTEN is very well suited as

  • Spill winch or drum winch pilot rope
  • Helicopter pilot rope
  • Drone pilot rope
  • Pilot rope for buried cable installation
  • Auxiliary winch rope

Faserseil für den Leitungsbau

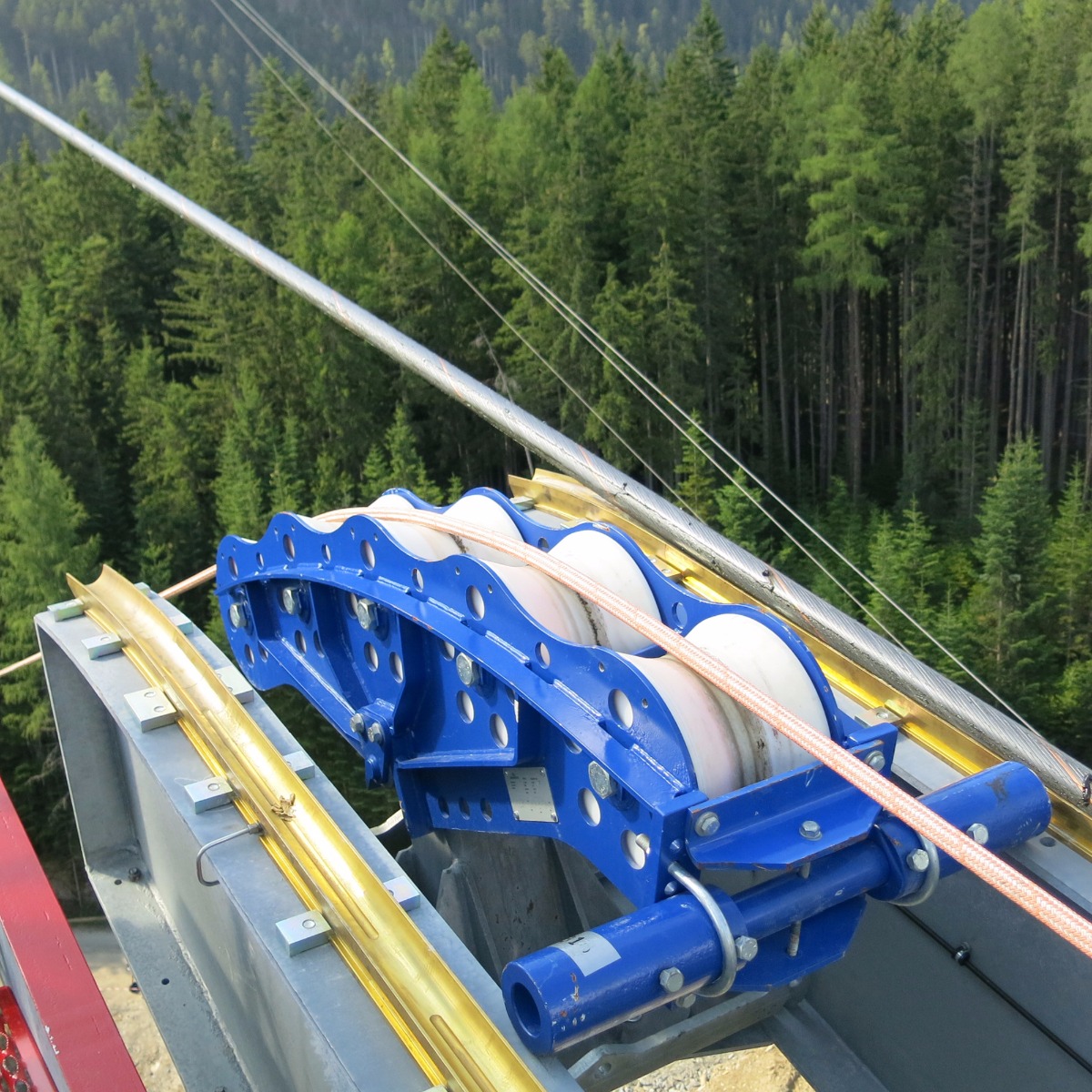

Pulling lines for ropeway construction

For example, our DuraTEN is very well suited as

  • Spill winch or drum winch pilot rope
  • Helicopter pilot rope
  • Drone pilot rope
  • Auxiliary winch rope

Vorzugsseile für den Seilbahnbau

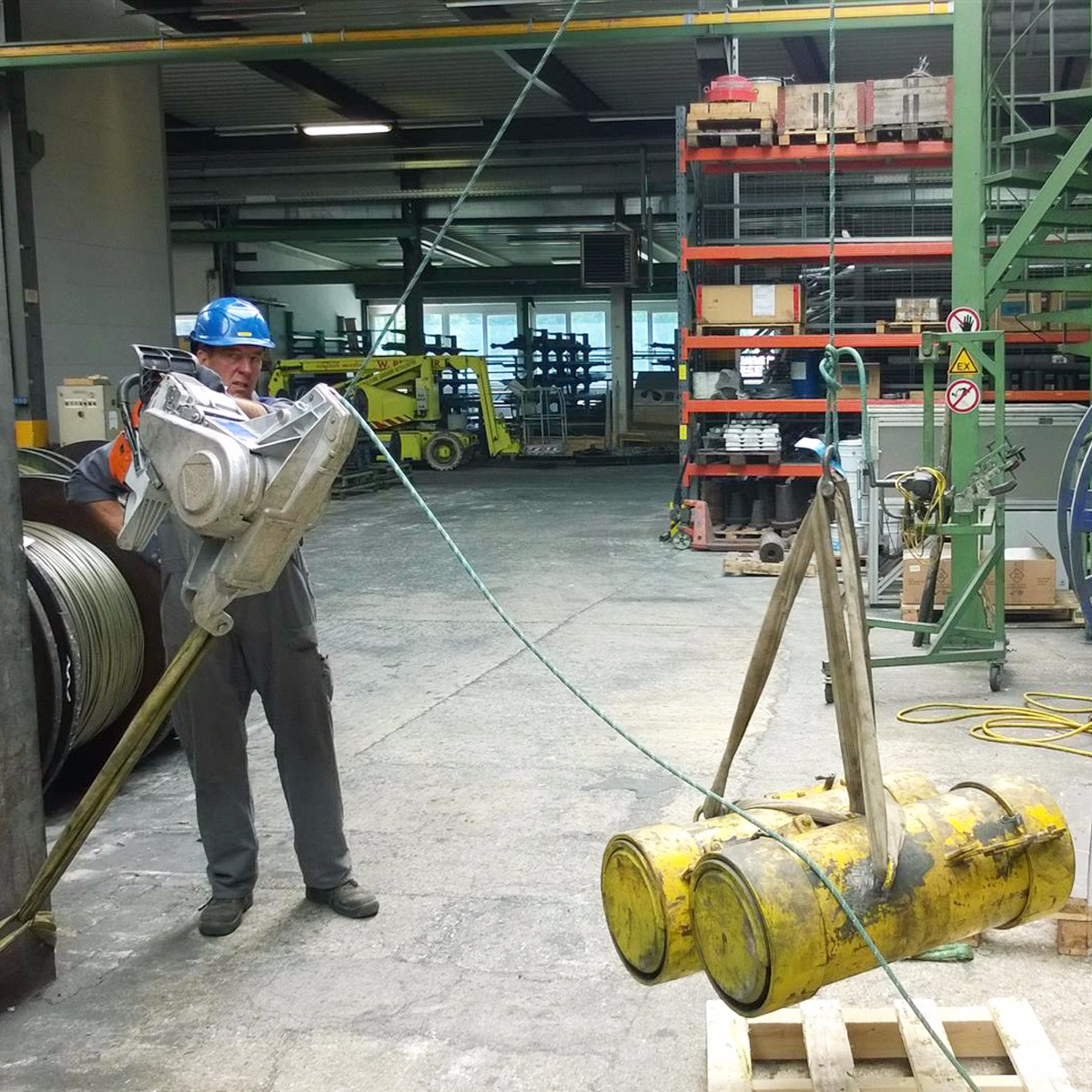

Ropes for motor winches

Our DuraTEN is ideally suited for use in drum winches or spill winches.

Faserseil für Motorwinden

Kern ∅ / Seil ∅ ohne Mantel
[mm]
Seil ∅ mit Mantel
[mm]
Gewicht DuraTEN / DuraTEN+
[g/m]
Gewicht DuraTEN Pro-P / DuraTEN + Pro-P
[g/m]
MBK***
[kN]
5 7 15 35 21
6 8 20 42 35
7 9 27 52 43
8 10 34 61 55
9 11 44 75 72
10 12 54 88 85
11 13 65 101 107
12 15 76 137 125
14 17 107 179 160
16 20 144 259 220
18 23 183 332 275
22 28 248 442 378
24 30 291 508 436
26 32 332 569 500
28 34 392 653 591
30 36 445 749 663
33 40 502 902 738
35 42 564 985 823
36 44 620 1 050 912
40 48 850 1 447 1 134
42 50 1 042 1 657 1 343
48 60 1 223 2 197 1 525
52 64 1 510 2 610 1 810
56 68 1 704 2 848 2 148
60 72 1 914 3 106 2 353
64 77 2 283 3 729 2 651
66 82 2 405 4 255 2 800
72 88 2 817 4 786 3 332
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
