V 12

General purpose ropes

V-12 from TEUFELBERGER is a rope that consists of 100% Vectran® and features high strength and low stretch.

Specifications

Material: Vectran®
Braid: 12

Made in
Color Images
  • Blue

    All Diameters

  • Gold Clear

    All Diameters

  • Grey

    All Diameters

  • Green

    All Diameters

  • Red

    All Diameters

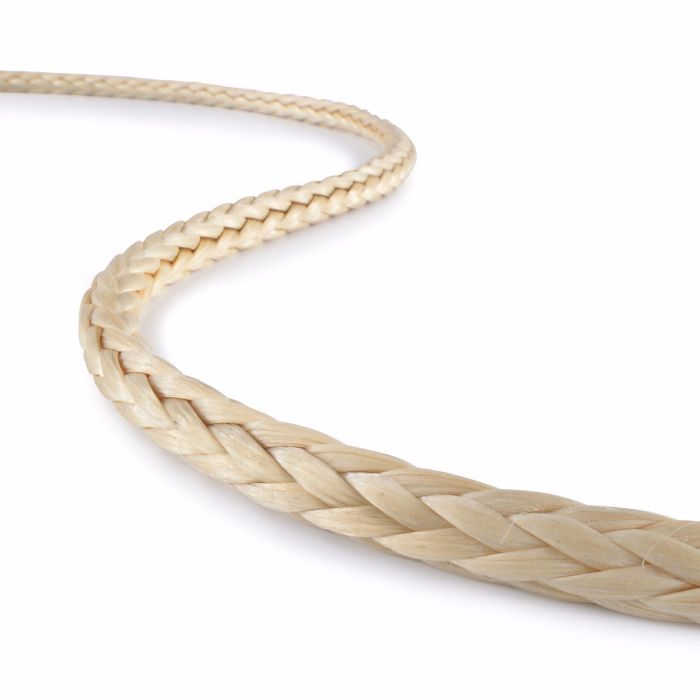

V-12 is a 12-strand single braid consisting of 100% Vectran®

Compared to other 12-strand ropes, this allround rope excels due to its higher strength, lower stretch and lower tendency to creep.  For enhanced abrasion resistance, our V-12 is treated with a proprietary urethane coating.

Diameter
[mm]
Diameter
[inch]
Weight
[g/m]
Weight
[lbf/100]
Min. breaking strength, free length
[daN]
Min. breaking strength, free length
[lbf]
3 1/8 6.8 0.46 710 1 600
4 5/32 11.9 0.80 1 245 2 800
5 3/16 17.9 1.20 1 555 3 500
6 1/4 22.3 1.50 2,580 5 800
8 5/16 49.1 3.30 4 225 9 500
10 3/8 69.9 4.70 6,495 14 600
11 7/16 98.2 6.60 10 450 23 500
12 1/2 111.6 7.50 11 565 26 000
13 19/32 125.0 8.40 12 510 28 130
14 9/16 145.8 9.80 14 145 31 800
16 5/8 183.0 12.30 17 125 38 500
18 23/32 245.5 16.50 27 645 62 150
20 13/16 290.1 19.50 30 780 69 200
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
