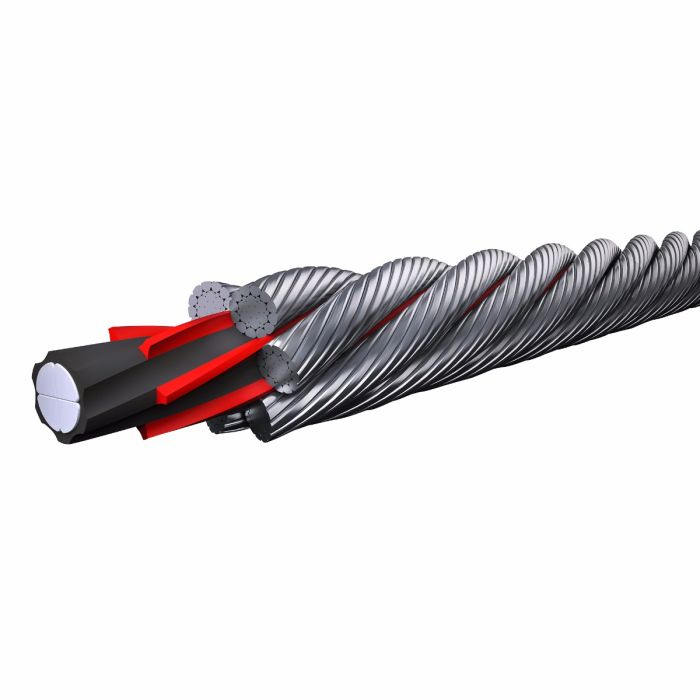

SOLITEC®

Hauling rope, carrying rope and drive rope

Our SOLITEC® rope is suited as hauling/carrying rope and drive rope for material ropeways and material cable belt conveyors.

Specifications

Diameter: 20-68 mm
Common constructions: 6x36 and 6x19; standard or compacted as well as bright and galvanized
SUPERFILL®
Certifications: EN 12.385-4, local certifications possible on request

SOLITEC® is the optimum transportation rope from TEUFELBERGER, which can be used both as hauling rope or carrying rope in material ropeways and as drive rope in material cable belt conveyors.


Our SOLITEC® ropes are available in different variants and are exactly customized to your needs. Due to their technology, these steel wire ropes impress with the following features:

  • Excellent longevity
  • Very low elongation
  • Perfectly round rope geometry
  • Breakproof plastic compound core
  • Permanently greased fiber core without leakage of grease
  • High dimensional stability under lateral pressure
  • Supreme resistance to external influences


For information about the technology behind our SOLITEC® ropes, please click here.

    For more than 2 generations, SOLITEC® transportation ropes have been applied in the field of material handling all over the world. Every year, we implement between 60 and 90 projects in this field.


    Please find below some of our references where SOLITEC® is used as ropeway rope:


    Lukovac, Bosnia (unidirectional aerial cableway)

    • First delivery: 1982
    • Customer: Rudnik/Asamer
    • Carrying rope used: STRESSLESS (1+6+Z15+Z18)
      • Length: 4 x 14,200 m
      • Rope diameter: 28 mm
      • Hauling rope used: SOLITEC®6x36WS
        • Length: 4 x 6,000 m
        • Rope diameter: 29 mm

    Lukovac, Bosnia, is home to one of Europe's longest and oldest material ropeways spanning a length of 14 km. This ropeway has relied on TEUFELBERGER ropes (hauling and carrying rope) for about 40 years. The ropeway's transport capacity is about 150 tons per hour. It carries limestone from a quarry, across a reservoir, and all the way to a cement factory and a soda plant, where it is processed. The ropes withstand the extreme conditions of several climatic zones – from very humid environments above water to frequently changing weather conditions in the mountains.


    Soligorsk, Belarus (material cable belt conveyor)

    • Delivery: July 2014
    • Customer: Belaruskali
    • Hauling rope used: SOLITEC® 6xK26WS
    • Length: 6 x 7,000 m
    • Rope diameter: 38 mm

    In Soligorsk, Belaruskali, Belarus, there is a 20 km cable belt conveyor which transports potash. The potash is conveyed from the mining site all the way to the fertilizer plant. Our SOLITEC® ropes are ideal for such applications of belt conveyors for goods and materials, as they were designed specifically with such scenarios of use in mind.



    Our SOLITEC® ropes are available in various versions depending on your requirements. Our portfolio includes bright and galvanized as well as compacted and non-compacted SOLITEC® ropes.

    Hauling/hoist rope SOLITEC® 6x19S

    Specifications:

    • Variant: round strand rope in Seale design, Lang’s lay, galvanized
    • Number of wires: 114
    • Braiding formula: [SOLITEC] + 6(1+9+9)




    Hauling/hoist rope SOLITEC® 6x25F

    Specifications:

    • Variant: round strand rope in Filler design, Lang’s lay, galvanized
    • Number of wires: 150
    • Braiding formula: [SOLITEC] + 6(1+6+(6)+12)




    Hauling/hoist rope SOLITEC® 6x36WS

    Specifications:

    • Variant: round strand rope in Warrington Seale design, Lang’s lay, galvanized
    • Number of wires without center strand: 216
    • Number of wires with center strand: 252
    • Braiding formula without center strand: [SOLITEC] + 6(1+7+7+7+14)
    • Braiding formula with center strand: [SOLITEC] + 6(1+6+7+7+7+14)




    Hauling/hoist rope SOLITEC® 6xK 19S

    Specifications:

    • Variant: compacted round strand rope in Seale design, Lang’s lay, galvanized
    • Number of wires: 114
    • Braiding formula: [SOLITEC]+ (1+9+9)




    Hauling/hoist rope SOLITEC® 6xK25F

    Specifications:

    • Variant: compacted round strand rope in Filler design, Lang’s lay, galvanized
    • Number of wires: 150
    • Braiding formula: [SOLITEC] + 6(1+6+(6)+12)


    Hauling/hoist rope SOLITEC® 6xK36WS

    Specifications:

    • Variant: compacted round strand rope in Warrington Seale design, Lang’s lay, galvanized
    • Number of wires: 216
    • Braiding formula: [SOLITEC] + (1+7+7+7+14)




    Hauling/hoist rope SOLITEC® 8x19S

    Specifications:

    • Variant: round strand rope in Seale design, Lang’s lay, galvanized
    • Number of wires: 152
    • Braiding formula: [SOLITEC] + 8 (1+9+9)



    Name Diameter
    [mm]
    Diameter
    [inch]
    Weight
    [kg/m]
    Weight
    [lbs/ft]
    Minimum breaking force at a tensile strength of 1770 N/mm²
    [kN]
    Minimum breaking force at a tensile strength of 1770 N/mm²
    [lbs]
    Minimum breaking force at a tensile strength of 1860 N/mm²
    [kN]
    Minimum breaking force at a tensile strength of 1860 N/mm²
    [lbs]
    Minimum breaking force at a tensile strength of 1960 N/mm²
    [kN]
    Minimum breaking force at a tensile strength of 1960 N/mm²
    [lbs]
    SOLITEC® 6xK19S 24 2.28 1.53 390 87,675 410 92,172 432 97,117
    SOLITEC® 6xK19S 25 1" 2.49 1.67 425 95,544 447 100,490 471 105,885
    SOLITEC® 6xK19S 26 2.70 1.81 462 103,862 486 109,257 512 115,102
    SOLITEC® 6xK19S 27 2.83 1.90 483 108,583 508 114,203 535 120,273
    SOLITEC® 6xK19S 28 3.02 2.03 518 116,451 544 122,296 573 128,816
    SOLITEC® 6xK19S 29 1 1/8" 3.24 2.18 554 124,544 582 130,839 614 138,033
    SOLITEC® 6xK19S 30 3.45 2.32 591 132,862 621 139,606 654 147,025
    SOLITEC® 6xK19S 31 3.71 2.49 634 142,529 666 149,723 702 157,816
    SOLITEC® 6xK19S 32 1 1/4" 3.94 2.65 675 151,746 709 159,390 747 167,932
    SOLITEC® 6xK19S 33 4.19 2.82 717 161,188 753 169,281 794 178,498
    SOLITEC® 6xK19S 34 4.45 2.99 762 171,304 801 180,072 844 189,739
    SOLITEC® 6xK19S 35 1 3/8" 4.72 3.17 807 181,421 848 190,638 894 200,979
    SOLITEC® 6xK19S 36 4.99 3.35 853 191,762 896 201,429 944 212,220
    SOLITEC® 6xK19S 37 5.29 3.55 905 203,452 951 213,793 1,002 225,259
    SOLITEC® 6xK19S 38 1 1/2" 5.56 3.74 951 213,793 999 224,584 1,053 236,724
    SOLITEC® 6xK19S 39 5.85 3.93 1,001 225,034 1,052 236,499 1,108 249,088
    SOLITEC® 6xK19S 40 6.18 4.15 1,057 237,623 1,111 249,763 1,171 263,251
    SOLITEC® 6xK19S 41 6.47 4.35 1,107 248,863 1,164 261,678 1,226 275,616
    SOLITEC® 6xK19S 42 1 5/8" 6.78 4.56 1,160 260,778 1,219 274,042 1,285 288,879
    SOLITEC® 6xK19S 43 7.09 4.76 1,213 272,693 1,275 286,631 1,343 301,918
    SOLITEC® 6xK19S 44 7.45 5.01 1,275 286,631 1,340 301,244 1,412 317,430
    SOLITEC® 6xK19S 45 1 3/4" 7.79 5.23 1,332 299,446 1,400 314,733 1,475 331,593
    Name Diameter
    [mm]
    Diameter
    [inch]
    Weight
    [kg/m]
    Weight
    [lbs/ft]
    Minimum breaking force at a tensile strength of 1770 N/mm²
    [kN]
    Minimum breaking force at a tensile strength of 1770 N/mm²
    [lbs]
    Minimum breaking force at a tensile strength of 1860 N/mm²
    [kN]
    Minimum breaking force at a tensile strength of 1860 N/mm²
    [lbs]
    Minimum breaking force at a tensile strength of 1960 N/mm²
    [kN]
    Minimum breaking force at a tensile strength of 1960 N/mm²
    [lbs]
    SOLITEC® 6xK36WS 28 3.11 2.09 538 120,947 565 127,017 596 133,986
    SOLITEC® 6xK36WS 29 1 1/8" 3.33 2.24 577 129,715 606 136,234 639 143,653
    SOLITEC® 6xK36WS 30 3.62 2.43 626 140,730 658 147,924 693 155,793
    SOLITEC® 6xK36WS 31 3.82 2.57 662 148,824 695 156,242 733 164,785
    SOLITEC® 6xK36WS 32 1 1/4" 4.06 2.73 703 158,041 739 166,134 779 175,126
    SOLITEC® 6xK36WS 33 4.30 2.89 744 167,258 782 175,801 824 185,243
    SOLITEC® 6xK36WS 34 4.60 3.09 796 178,948 837 188,165 882 198,281
    SOLITEC® 6xK36WS 35 1 3/8" 4.86 3.27 841 189,064 884 198,731 931 209,297
    SOLITEC® 6xK36WS 36 5.19 3.49 898 201,878 944 212,220 995 223,685
    SOLITEC® 6xK36WS 37 5.46 3.67 945 212,444 993 223,235 1,047 235,375
    SOLITEC® 6xK36WS 38 1 1/2" 5.78 3.88 1,001 225,034 1,052 236,499 1,108 249,088
    SOLITEC® 6xK36WS 39 6.03 4.05 1,044 234,701 1,097 246,615 1,156 259,879
    SOLITEC® 6xK36WS 40 6.35 4.27 1,100 247,290 1,156 259,879 1,218 273,817
    SOLITEC® 6xK36WS 41 6.68 4.49 1,156 259,879 1,215 273,143 1,280 287,755
    SOLITEC® 6xK36WS 42 1 5/8" 6.98 4.69 1,208 271,569 1,270 285,507 1,338 300,794
    SOLITEC® 6xK36WS 43 7.31 4.91 1,265 284,383 1,329 298,771 1,401 314,957
    SOLITEC® 6xK36WS 44 7.70 5.17 1,332 299,446 1,400 314,733 1,475 331,593
    SOLITEC® 6xK36WS 45 1 3/4" 8.02 5.39 1,388 312,035 1,459 327,996 1,537 345,531
    SOLITEC® 6xK36WS 46 8.45 5.68 1,463 328,895 1,538 345,756 1,620 364,190
    SOLITEC® 6xK36WS 47 8.75 5.88 1,515 340,586 1,592 357,896 1,677 377,005
    SOLITEC® 6xK36WS 48 9.19 6.18 1,591 357,671 1,672 375,881 1,761 395,889
    SOLITEC® 6xK36WS 49 9.58 6.44 1,657 372,508 1,742 391,617 1,835 412,524
    SOLITEC® 6xK36WS 50 9.92 6.67 1,717 385,997 1,805 405,780 1,902 427,587
    SOLITEC® 6xK36WS 51 2" 10.34 6.95 1,790 402,408 1,881 422,866 1,982 445,571
    SOLITEC® 6xK36WS 52 10.80 7.26 1,863 418,819 1,957 439,951 2,063 463,781
    SOLITEC® 6xK36WS 53 11.15 7.49 1,930 433,881 2,028 455,913 2,138 480,642
    SOLITEC® 6xK36WS 54 2 1/8" 11.60 7.80 2,007 451,192 2,109 474,122 2,223 499,750
    Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
