HyperTEN

Fiber rope for vehicle winches

The thermally pre-stretched vehicle winch rope HyperTEN consists of UHMWPE fibers and offers maximum breaking forces and an extremely long service life.

Specifications

Diameter: 3-24 mm
STS - Stronger Than Steel® technology
Cover: optionally with PES (HyperTEN-Pro P) or UHMWPE (HyperTEN-Pro U)
Core: UHMWPE, thermally pre-stretched
Colors:

  • Cover: various colors and/or color combinations possible
  • Core: silver gray

Our extremely stable high strength vehicle winch rope HyperTEN is made of UHMWPE fibers. This fiber rope is thermally pre-stretched and available either with PES or UHMWPE cover.


This vehicle winch rope features:

  • 1/7 of the weight of comparable steel wire ropes
  • Extremely high breaking force - higher than that of most steel wire ropes of the same diameter available in the market
  • No corrosion and/or soiling caused by rope grease
  • No danger of injury, easy and quick handling
  • Flexible design
  • Extremely high abrasion resistance due to smooth surface, especially when provided with a cover
  • Very high bending fatigue strength and extremely long service life
  • The kinetic energy released on rope damage is considerably lower than in case of steel wire ropes.
  • Very low initial and working stretch (already eliminated during production)

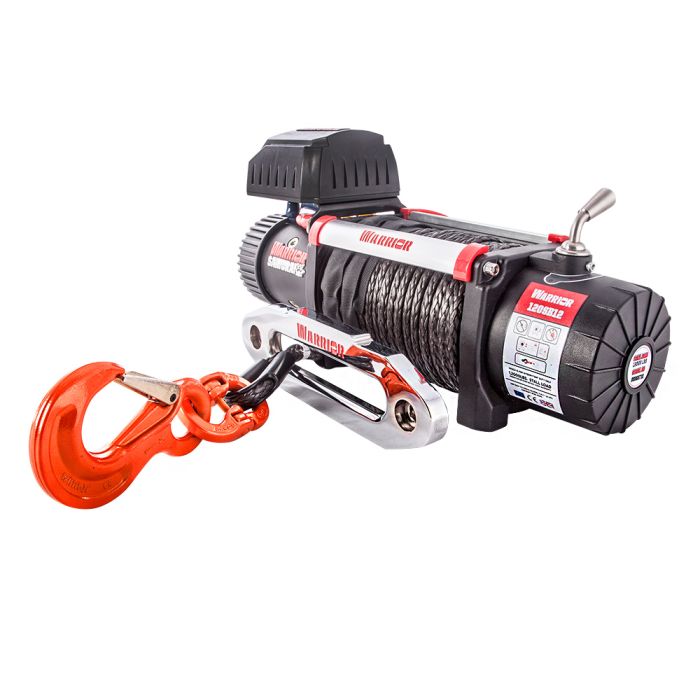

Our HyperTEN is mainly used in vehicle winches and is suited for applications in the field of

  • Offroad Vehicels,
  • Maintenance vehicles, and
  • Recovery vehicles and military vehicles.


Offroad vehicles

Our HyperTEN is ideally suited for:

  • Semi-professional users and
  • Professional users


HyperTEN is available in various versions, for example:

  • Provided with stainless steel or tubular thimble
  • Featuring sliding protective tubes of polyester for rope spots that are subjected to high thermal and mechanical stress
  • With mounting aid
  • Customized branding possible


Our portfolio for the offroad sector includes the following accessories:

  • Different safety hooks
  • Textile shackles
  • Rope extensions
  • Connecting links

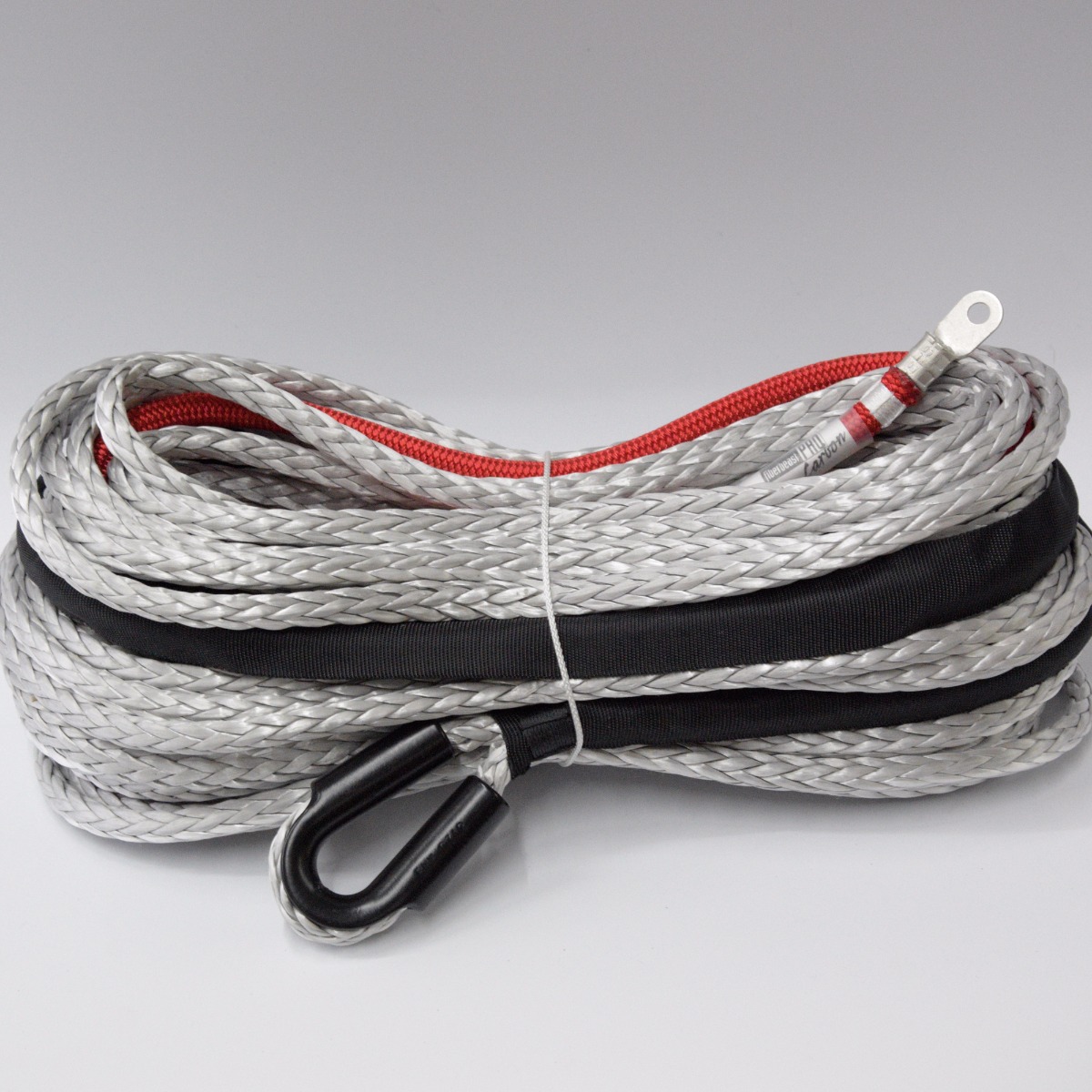

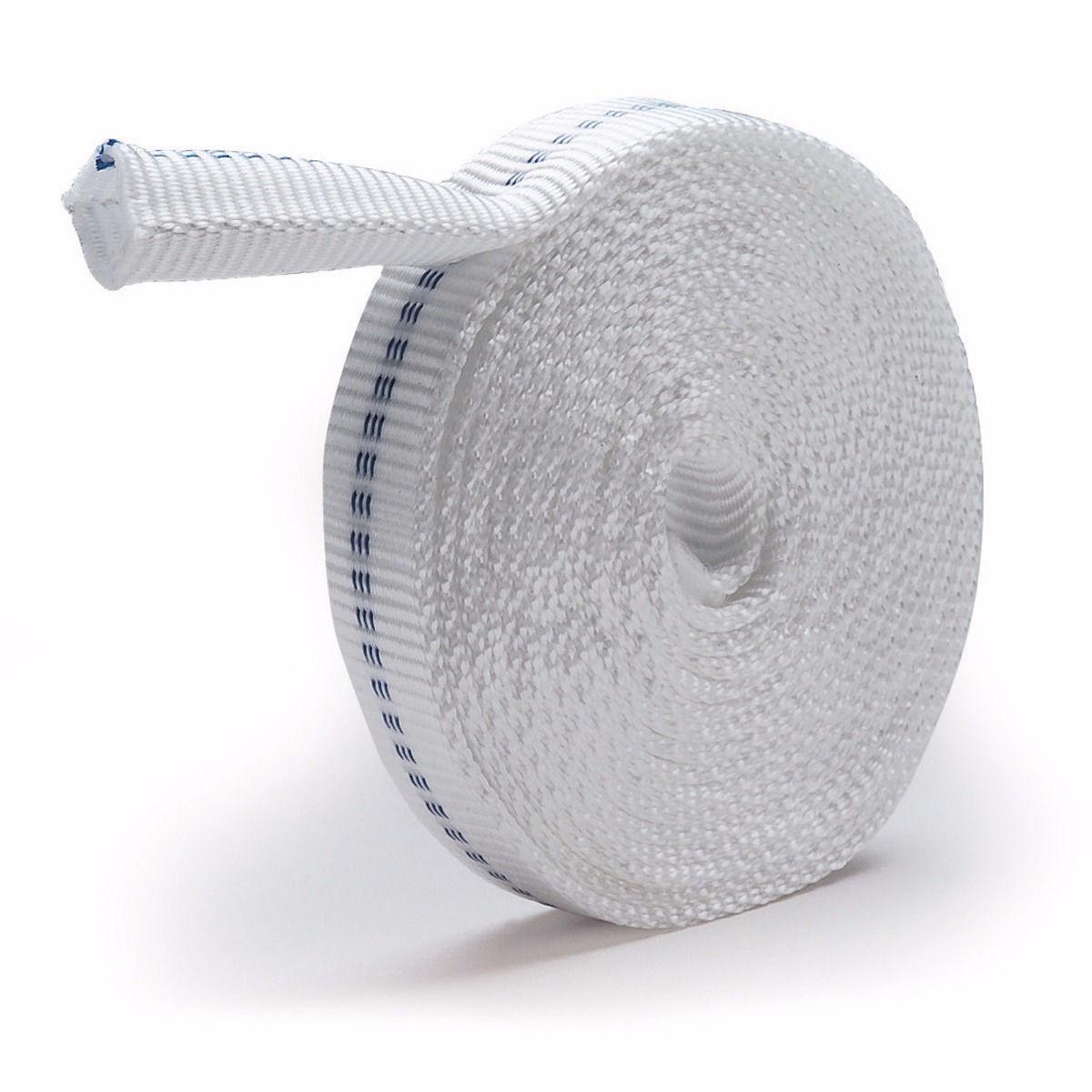

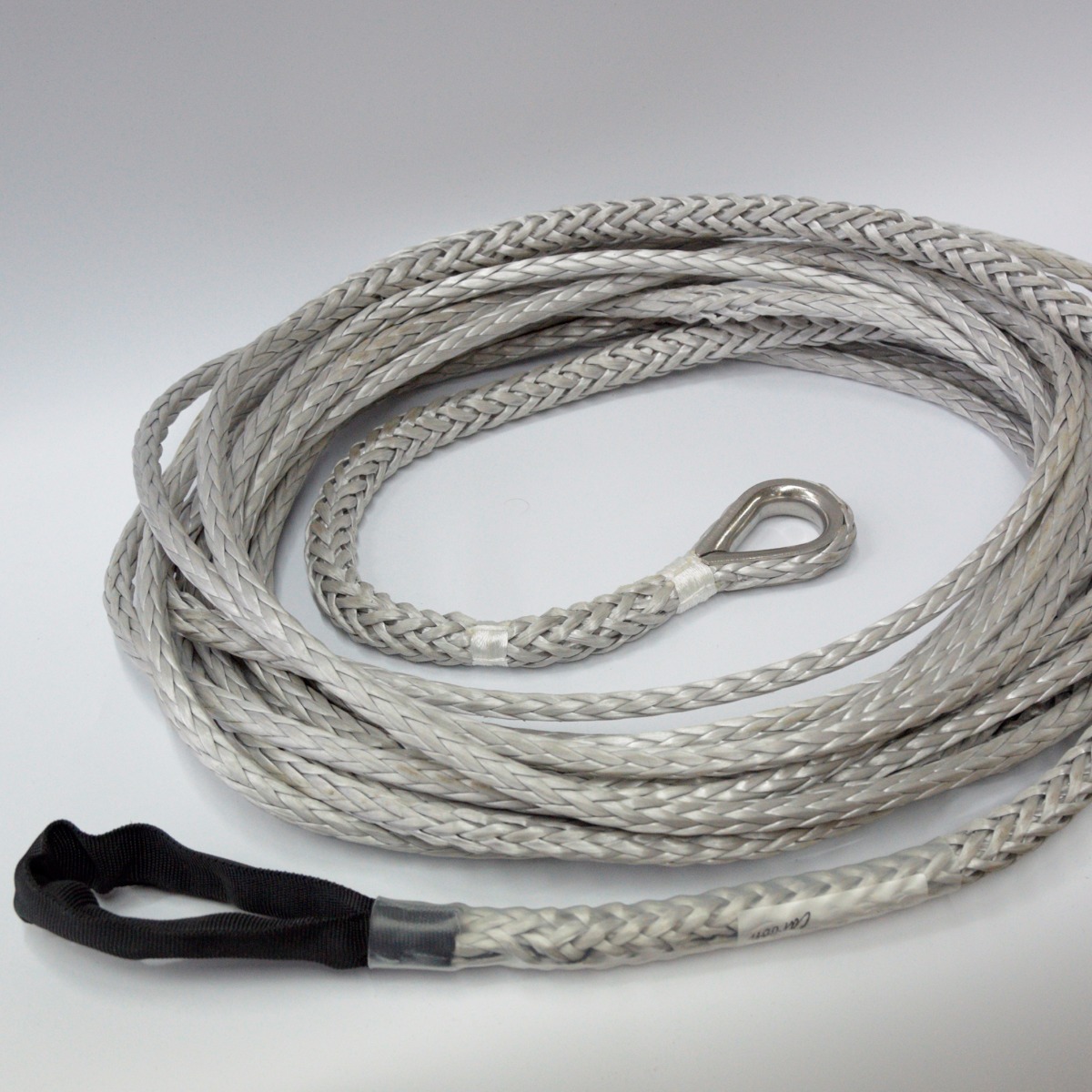

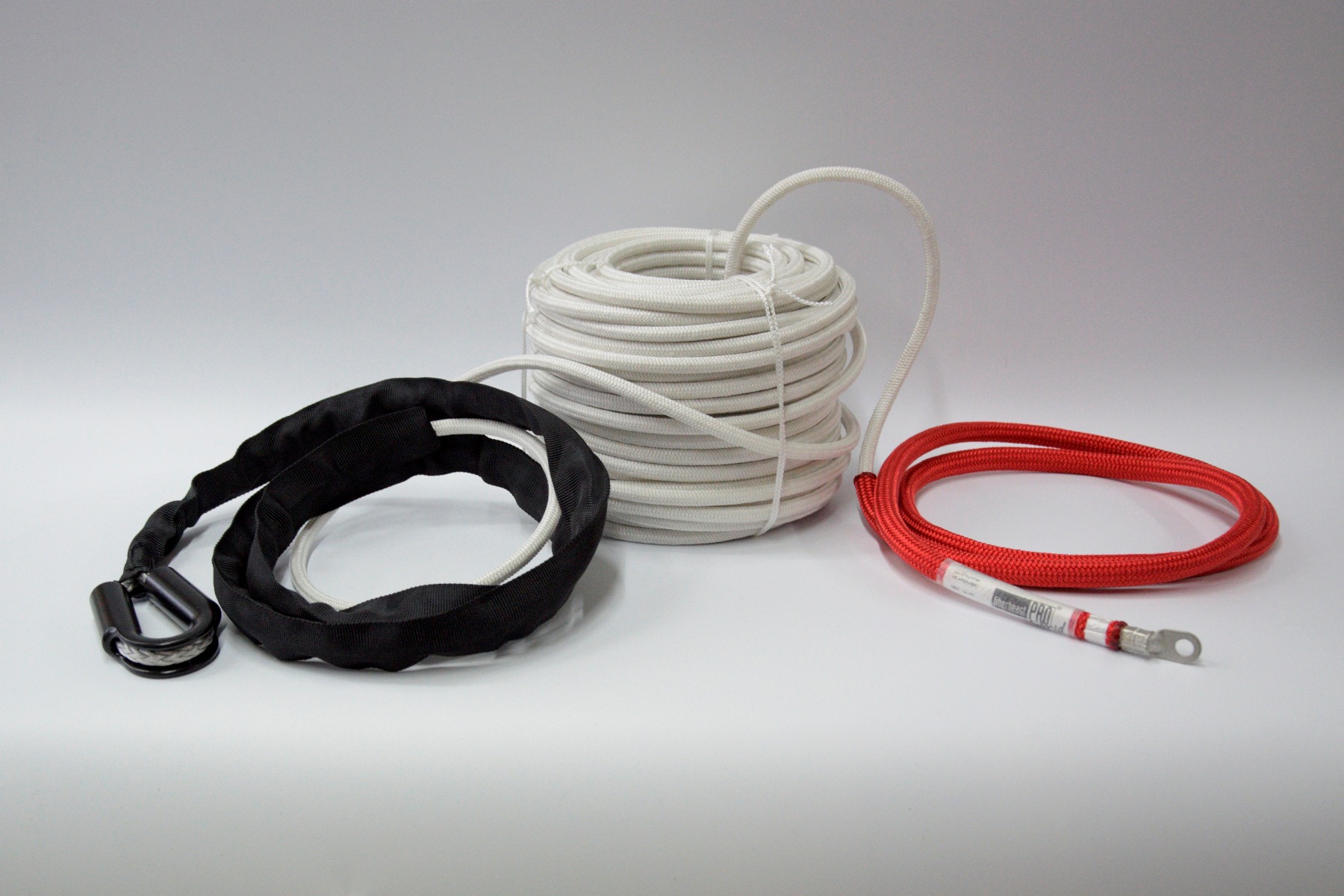

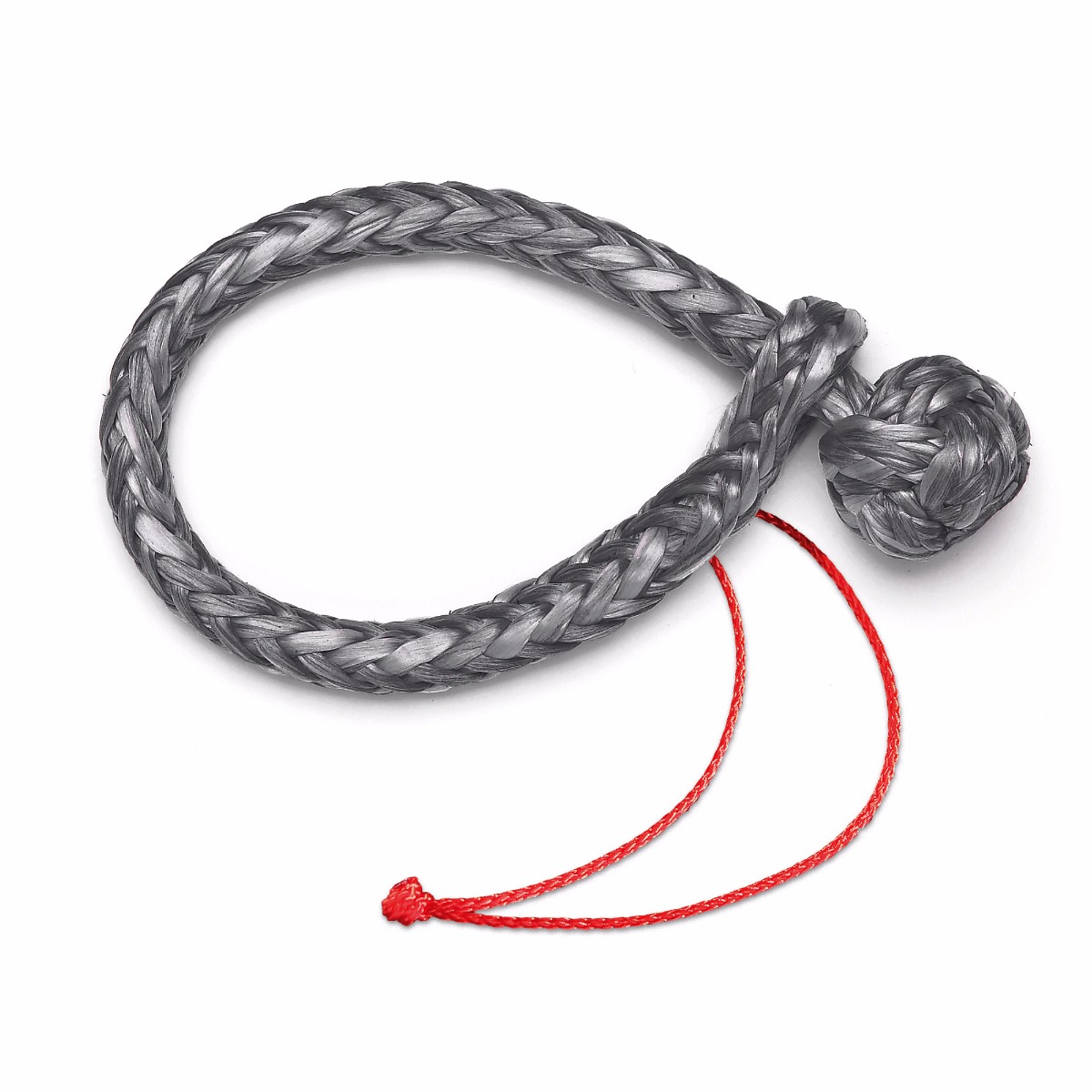

HyperTEN OffroadHyperTEN Pro-U OffroadPolyester protective hoseShoft ShakleRope ExtensionduraTEN mit Haken und Kausche


Maintenance vehicles

The fiber rope HyperTEN can be used without adaptation on almost all steel wire rope winches available in the market.


HyperTEN is available in various versions:

  • Provided with stainless steel or tubular thimble
  • Featuring sliding protective tubes of polyester for rope spots that are subjected to high thermal and mechanical stress
  • With mounting aid
  • Customized branding possible


For maintenance vehicles, our portfolio includes the following accessories for HyperTEN:

  • Different safety hooks
  • Connecting links

Bucket Utility Silhouette

Recovery vehicles and military vehicles

HyperTEN can be used without adaptation on almost all steel wire rope winches available in the market.


Our winch rope HyperTEN is available in various versions, for example:

  • Provided with stainless steel or tubular thimble
  • Featuring sliding protective tubes of polyester for rope spots that are subjected to high thermal and mechanical stress
  • With mounting aid
  • Customized branding possible
  • The rope, hooks and thimbles are also available in special color black.


For the field of recovery vehicles and military vehicles, our portfolio includes the following rope accessories:

  • Different safety hooks
  • Connecting links

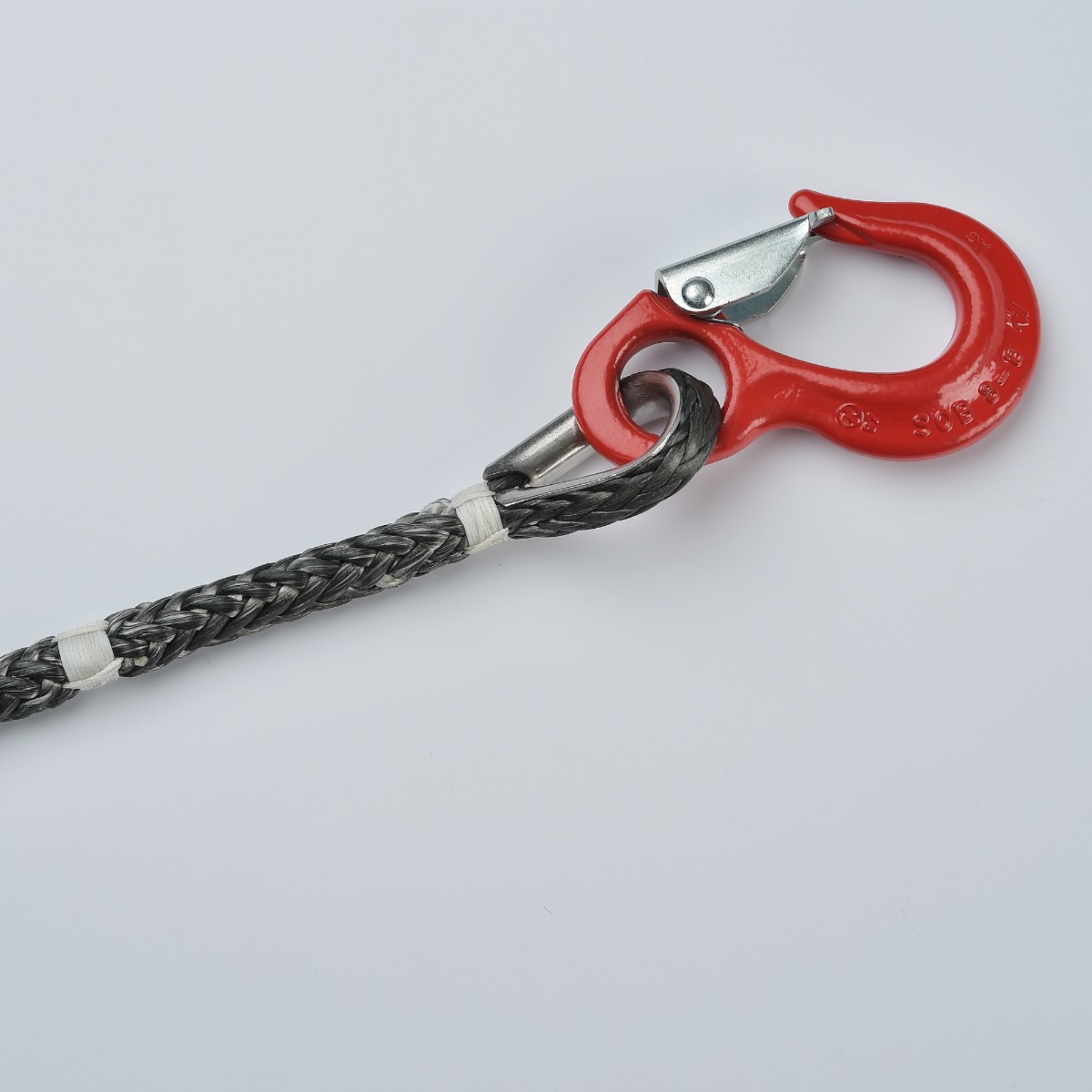

DuraTEN für Berge- und Militärfahrzeuge

HyperTEN Rope-Diameter
[mm]
HyperTEN Weight
[g/m]
HyperTEN Pro-P / Pro-U Core-Diameter
[mm]
HyperTEN Pro-P Rope-Diameter
[mm]
HyperTEN Pro-P Weight
[g/m]
HyperTEN Pro-U Rope-Diameter
[mm]
HyperTEN Pro-U Weight
[g/m]
HyperTEN / HyperTEN Pro Min. breaking strength, spliced
[kN]
3 9 3 5 20 5 15 21
5 19 5 7 42 7 31 40
6 26 6 8 57 8 44 50
7 36 7 9 77 9 58 70
8 49 8 10 98 10 72 90
9 60 9 11 109 11 84 94
10 64 10 12 127 12 96 115
11 76 11 13 165 13 124 135
12 100 12 15 204 15 151 180
14 125 14 17 250 17 188 235
15 146 15 18 286 18 212 250
16 156 16 20 300 20 224 280
18 199 18 23 410 23 301 355
20 209 20 25 445 25 331 440
22 260 22 28 495 28 370 505
24 329 24 30 635 30 470 550
26 366 26 32 790 32 587 610
28 425 28 34 878 34 670 700
30 488 30 36 990 36 756 800
32 555 32 39 1,105 39 846 900
34 626 34 41 1,230 41 939 1,010
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
