FLEXMINE® 460(P)

ROTATION AND WEAR RESISTANT HIGH PERFORMER WITH INCREASED STRENGTH

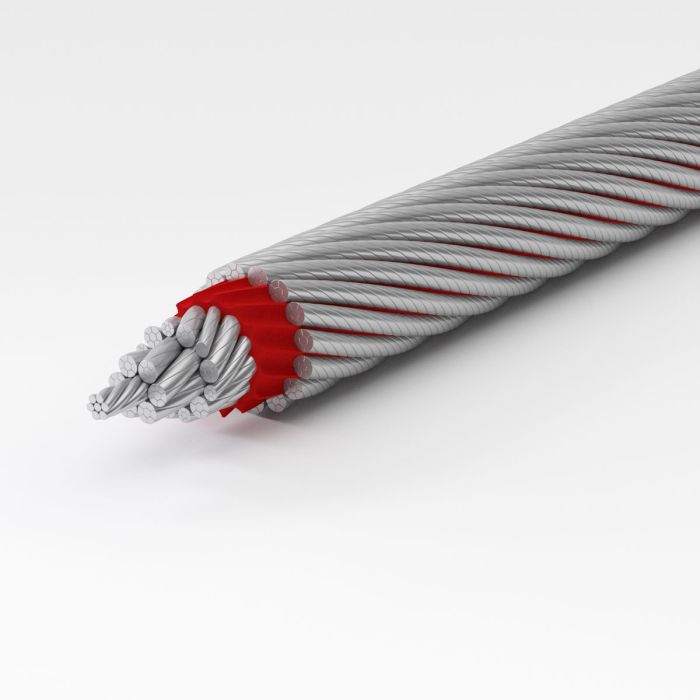

15-strand rotation resistant rope with optional PLASTFILL® insert between the steel core and the outer strands.

Specifications

  • Lang lay or ordinary lay, right and left lay
  • 19 – 65 mm: 15xK7-EPIWRC(K) (or IWRC(K))
  • Conformity: EN 12385-6 (20-65 mm) / EN 12385-4 (19 mm)
    (other standards available upon request)
  • Use with or without rope swivel
  • Rope finish: bright, galvanized class B, ZnAl

✔ SUPERFILL®
✔ PLASTFILL®

15-strand rotation resistant rope with optional PLASTFILL® insert between the steel core and the outer strands. All strands are compacted using Teufelberger-Redaelli SUPERFILL® compaction technology, which significantly increases the rope's wear resistance and breaking force. Suitable for use with friction and drum winders.

Benefits

  • Rotation resistant
  • High breaking force
  • High resistance to wear and drum crushing
  • High flexibility and bending fatigue performance
  • Very low rope elongation
  • Excellent radial stability
  • Improved shock resistance with PLASTFILL®

Alle technischen Daten und Informationen für die perfekte Seil-Auswahl

Förderseile, Ausgleichsseile und Führungsseile. Teufelberger hat einen neuen Bergbaukatalog mit 20 Hochleistungsstahlseilen veröffentlicht, der Ihnen einen Überblick über alle relevanten Seildaten gibt, umfassendes Seil Know-how vermittelt und Ihnen hilft das passende Seil auszuwählen.

Construction Diameter
[mm]
Diameter
[inch]
Außendurchmesser
[mm]
Weight
[kg/m]
Weight
[lbf/ft]
Calculated (= min. aggregated) breaking force at rope grade 1570 N/mm²
[kN]
Berechnete (=min. aggregierte) Bruchkraft bei Seilneigung 1570 N/mm²
[lbf]
Calculated (= min. aggregated) breaking force at rope grade 1770 N/mm²
[kN]
Calculated (= min. aggregated) breaking force at rope grade 1770 N/mm²
[lbf]
Calculated (= min. aggregated) breaking force at rope grade 1960 N/mm²
[kN]
Calculated (= min. aggregated) breaking force at rope grade 1960 N/mm²
[lbf]
Minimum breaking force at rope grade 1570 N/mm²
[kN]
Minimum breaking force at rope grade 1570 N/mm²
[lbf]
Minimum breaking force at rope grade 1770 N/mm²
[kN]
Minimum breaking force at rope grade 1770 N/mm²
[lbf]
Minimum breaking force at rope grade 1960 N/mm²
[kN]
Minimum breaking force at rope grade 1960 N/mm²
[lbf]
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 19 1.08 1.75 1.18 320 71,827 360 81,005 399 89,725 249 56,040 281 63,179 311 69,961
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 19.05 3/4 1.09 1.76 1.18 321 72,206 362 81,433 401 90,199 251 56,335 283 63,512 313 70,329
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 20 1.14 1.94 1.30 354 79,611 399 89,781 442 99,442 276 62,094 311 70,004 345 77,519
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 21 1.20 2.14 1.44 391 87,794 440 99,006 488 109,658 305 68,459 343 77,180 380 85,465
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 22 1.25 2.35 1.58 429 96,376 483 108,682 535 120,372 334 75,134 377 84,705 417 93,798
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 22.23 7/8 1.27 2.40 1.61 438 98,362 493 110,921 546 122,852 341 76,679 385 86,447 426 95,726
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 23 1.31 2.57 1.73 469 105,358 528 118,808 585 131,585 365 82,120 412 92,581 456 102,519
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 24 1.37 2.80 1.88 510 114,738 576 129,383 637 143,296 398 89,416 448 100,806 497 111,627
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 25 1.42 3.03 2.04 554 124,518 625 140,409 692 155,505 432 97,022 487 109,382 539 121,123
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 25.4 1 1.45 3.13 2.10 572 128,542 645 144,945 714 160,528 445 100,152 502 112,910 556 125,030
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 26 1.48 3.28 2.21 599 134,697 676 151,885 748 168,213 467 104,939 526 118,307 583 131,007
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 27 1.54 3.54 2.38 646 145,275 729 163,810 807 181,419 503 113,167 568 127,583 628 141,278
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 28 1.60 3.81 2.56 695 156,253 784 176,186 868 195,123 541 121,705 610 137,208 676 151,937
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 28.58 1 1/8 1.63 3.96 2.66 724 162,745 816 183,506 904 203,228 564 126,755 636 142,902 704 158,241
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 29 1.65 4.08 2.74 746 167,629 841 189,012 931 209,325 581 130,553 655 147,184 725 162,983
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 30 1.71 4.37 2.94 798 179,405 900 202,288 997 224,026 621 139,712 701 157,510 776 174,418
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 31 1.77 4.67 3.13 852 191,580 961 216,013 1064 239,226 664 149,181 748 168,185 828 186,239
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 31.75 1 1/4 1.81 4.89 3.29 894 200,973 1008 226,603 1116 250,952 696 156,487 785 176,422 869 195,360
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 32 1.82 4.97 3.34 908 204,154 1024 230,189 1134 254,923 707 158,961 797 179,211 883 198,448
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 33 1.88 5.29 3.55 966 217,127 1089 244,815 1206 271,119 752 169,051 848 190,587 939 211,045
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 34 1.94 5.61 3.77 1025 230,500 1156 259,891 1280 287,813 798 179,452 900 202,312 997 224,030
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 35 1 3/8 1.99 5.95 4.00 1087 244,271 1225 275,417 1357 305,006 846 190,164 954 214,388 1056 237,402
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 36 2.05 6.29 4.23 1150 258,442 1296 291,393 1435 322,697 895 201,185 1009 226,814 1117 251,161
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 37 2.11 6.65 4.47 1214 273,012 1369 307,819 1516 340,886 945 212,517 1066 239,590 1180 265,308
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 38 1 1/2 2.17 7.01 4.71 1281 287,981 1444 324,695 1599 359,574 997 224,160 1124 252,716 1245 279,843
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 39 2.22 7.38 4.96 1349 303,349 1521 342,021 1685 378,760 1050 236,113 1184 266,191 1311 294,766
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 40 2.28 7.77 5.22 1420 319,117 1600 359,797 1772 398,444 1105 248,377 1246 280,017 1379 310,076
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 41 2.34 8.16 5.48 1491 335,284 1682 378,023 1862 418,626 1161 260,951 1309 294,193 1449 325,773
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 41.28 1 5/8 2.35 8.27 5.56 1512 339,799 1704 383,115 1887 424,264 1176 264,463 1326 298,153 1469 330,158
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 42 2.39 8.56 5.75 1565 351,849 1765 396,700 1954 439,307 1218 273,835 1373 308,719 1521 341,858
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 43 2.45 8.98 6.03 1641 368,814 1850 415,826 2048 460,487 1277 287,031 1439 323,595 1594 358,331
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 44 2.51 9.40 6.32 1718 386,179 1937 435,402 2145 482,164 1337 300,536 1507 338,821 1669 375,191
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 44.45 1 3/4 2.53 9.59 6.45 1753 394,123 1977 444,358 2189 492,082 1364 306,715 1538 345,787 1703 382,905
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 45 2.56 9.83 6.61 1797 403,942 2026 455,428 2243 504,340 1398 314,352 1576 354,397 1746 392,439
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 46 2.62 10.27 6.90 1878 422,105 2117 475,904 2344 527,014 1461 328,478 1647 370,323 1824 410,075
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 47 2.68 10.72 7.21 1960 440,666 2210 496,831 2447 550,187 1525 342,915 1720 386,599 1904 428,098
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 47.63 1 7/8 2.71 11.01 7.40 2013 452,470 2269 510,138 2513 564,923 1566 352,096 1766 396,949 1955 439,559
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 48 2.73 11.18 7.52 2045 459,627 2305 518,207 2553 573,858 1591 357,663 1794 403,225 1986 446,509
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 49 2.79 11.66 7.83 2131 478,987 2402 540,033 2660 598,027 1658 372,721 1869 420,201 2070 465,307
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 50 2.85 12.14 8.16 2219 498,747 2501 562,310 2770 622,695 1726 388,089 1946 437,527 2155 484,493
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 50.8 2 2.89 12.53 8.42 2290 514,841 2582 580,455 2859 642,788 1782 400,607 2009 451,640 2225 500,121
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 51 2.91 12.63 8.48 2308 518,905 2602 585,036 2882 647,861 1796 403,768 2025 455,203 2242 504,067
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 52 2.96 13.13 8.82 2400 539,463 2705 608,213 2996 673,525 1867 419,757 2105 473,229 2331 524,028
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 53 3.02 13.64 9.16 2493 560,419 2811 631,839 3112 699,688 1940 436,057 2187 491,605 2422 544,376
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 54 2 1/8 3.08 14.16 9.51 2588 581,775 2918 655,916 3231 726,349 2014 452,667 2270 510,331 2514 565,113
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 55 3.13 14.69 9.87 2685 603,531 3027 680,442 3352 753,508 2089 469,587 2355 529,408 2608 586,237
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 56 3.19 15.22 10.23 2783 625,685 3138 705,419 3475 781,166 2165 486,819 2441 548,834 2703 607,748
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 57 3.25 15.77 10.60 2884 648,238 3251 730,845 3600 809,322 2244 504,360 2529 568,610 2801 629,647
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 57.15 2 1/4 3.26 15.86 10.65 2899 651,656 3268 734,698 3619 813,588 2255 507,018 2543 571,607 2816 632,965
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 58 3.30 16.33 10.97 2986 671,191 3366 756,722 3728 837,976 2323 522,212 2619 588,736 2900 651,934
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 59 3.36 16.90 11.36 3089 694,543 3483 783,048 3857 867,129 2404 540,375 2710 609,212 3001 674,608
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 60 3.42 17.48 11.74 3195 718,294 3602 809,825 3989 896,780 2486 558,848 2803 630,039 3103 697,670
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 60.33 2 3/8 3.44 17.67 11.87 3230 726,099 3641 818,624 4032 906,523 2513 564,919 2833 636,883 3137 705,249
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 61 3.48 18.06 12.14 3303 742,444 3723 837,052 4123 926,929 2569 577,631 2897 651,215 3208 721,119
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 62 3.53 18.66 12.54 3412 766,994 3847 864,728 4260 957,576 2654 596,725 2993 672,741 3314 744,957
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 63 3.59 19.27 12.95 3523 791,942 3972 892,855 4398 988,722 2741 616,130 3090 694,618 3421 769,181
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 63.5 2 1/2 3.62 19.57 13.15 3579 804,566 4035 907,087 4468 1,004,482 2784 625,948 3139 705,687 3476 781,439
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 64 3.65 19.88 13.36 3635 817,290 4099 921,432 4539 1,020,367 2828 635,845 3189 716,844 3531 793,793
15xK7-IWRC(K) or 15xK7-EPIWRC(K) 65 3.70 20.51 13.78 3750 843,037 4228 950,459 4682 1,052,509 2917 655,870 3289 739,420 3642 818,793
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
