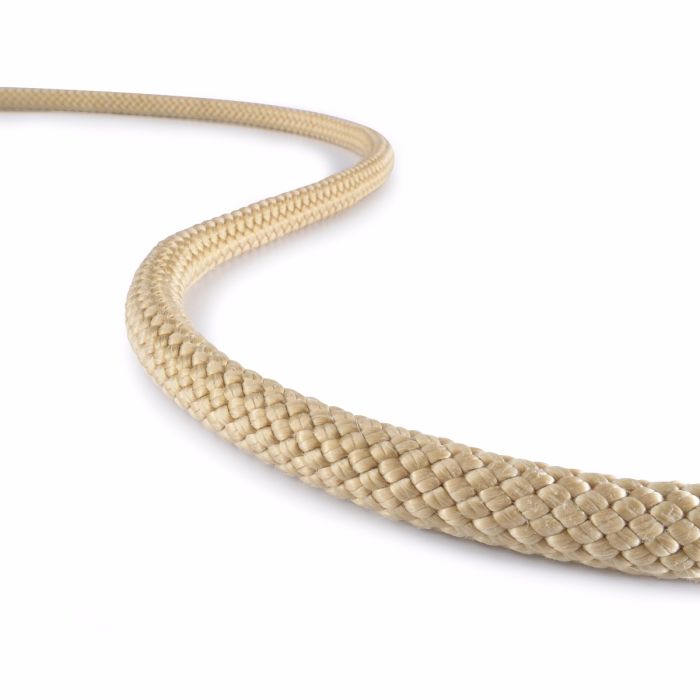

Aramid Escape Line

HitzHeat resistant rope

Aramid Escape Line is certified to NFPA 1983:2012 and is used mainly by fire departments for protection during firefighting operations.

Specifications

Standard: NFPA 1983:2012
Core: Technora®
Cover: Technora®
Braid: 20

Made in

Color Images

  • Gold-Technora® Natura

    7,5 mm

Aramid Escape Line was designed for firefighters, in collaboration with science and safety officers from the largest fire departments in the U.S. and the world’s leading fiber manufacturers. The aim was to develop a rope that improves the safety of firefighters, especially of those working in tall buildings.

Aramid Escape Line fulfills the most important criteria for bailout situations, thanks to its high decomposition point (500°C / 900°F) and durability.  Technora®  is the ideal material for these requirements of a fire escape rope. Consequently, sharp glass, rough materials, or great heat will not be able to threaten the integrity of this rope.

Our Aramid Escape Line is very supple. Hence, it packs tightly into a compact bag which can be worn on a belt and deployed instantly if necessary.

The advantages of this heat resistant rope are:

  • especially designed for firefighters
  • high decomposition point and durability due to Technora® fiber
  • packs tightly into a compact bag
  • limited UV-resistance
Diameter
[mm]
Diameter
[inch]
Weight
[g/m]
Weight
[lbs/100']
Min. breaking strength, free length
[daN]
Min. breaking strength, free length
[lbf]
Cover
[%]
7.50 1/4 45.8 3.08 2,780 6,250 50.30
Diameter
[mm]
Diameter
[inch]
Elongation at 1.35 kN
[%]
Elongation at 2.7 kN
[%]
Elongation at 4.4 kN
[%]
Approved class
7.50 1/4 1.10 1.40 1.60 Fluchtseil/Escape rope
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
