RED 1T

Non-compacted & lightweight

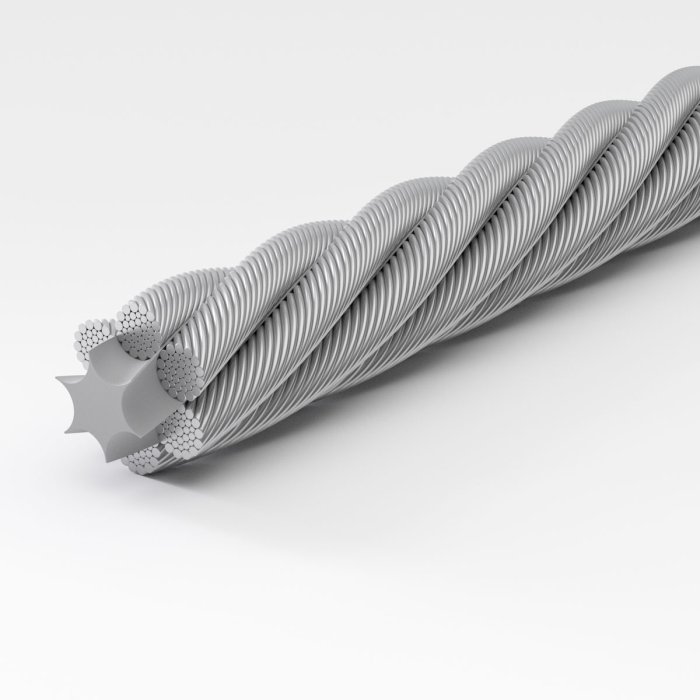

Premium reliable 6-strand rope with non-compacted outer strands and a synthetic fiber core.

Specifications

  • Lang lay or ordinary lay, right and left lay
  • 19 – 26 mm: 6x19S -SFC
  • 27 – 32 mm: 6x26WS-SFC
  • 33 – 38 mm: 6x31WS-SFC
  • 39 – 65 mm: 6x36WS-SFC
  • Conformity: EN 12385-6 (other standards available upon request
  •  Use without rope swivel
  • Rope finish: bright, galvanized class B, ZnAl

✘ SUPERFILL®
✘ PLASTFILL®

Premium reliable 6-strand rope with non-compacted outer strands and a synthetic fiber core. Mainly used on Koepe friction winders and single-layer drum winders.

Benefits

  • Non-rotation resistant rope
  • Medium breaking force
  • High flexibility and bending fatigue performance
  • Medium rope elongation
  • Medium radial stability
  • Good shock resistance

All technical data and information for the perfect rope selection

Hoist ropes, balance ropes, shaft sinking ropes and guide ropes. TEUFELBERGER has published a new mining catalog with 20 high-performance steel wire ropes that gives you an overview of all relevant rope data, provides comprehensive rope know-how and helps you select the right rope.

Construction Diameter
[mm]
Diameter
[inch]
Außendurchmesser
[mm]
Weight
[kg/m]
Weight
[lbf/ft]
Calculated (= min. aggregated) breaking force at rope grade 1570 N/mm²
[kN]
Berechnete (=min. aggregierte) Bruchkraft bei Seilneigung 1570 N/mm²
[lbf]
Calculated (= min. aggregated) breaking force at rope grade 1770 N/mm²
[kN]
Calculated (= min. aggregated) breaking force at rope grade 1770 N/mm²
[lbf]
Calculated (= min. aggregated) breaking force at rope grade 1960 N/mm²
[kN]
Calculated (= min. aggregated) breaking force at rope grade 1960 N/mm²
[lbf]
Minimum breaking force at rope grade 1570 N/mm²
[kN]
Minimum breaking force at rope grade 1570 N/mm²
[lbf]
Minimum breaking force at rope grade 1770 N/mm²
[kN]
Minimum breaking force at rope grade 1770 N/mm²
[lbf]
Minimum breaking force at rope grade 1960 N/mm²
[kN]
Minimum breaking force at rope grade 1960 N/mm²
[lbf]
6x19S-SFC 19 1.51 1.25 0.84 220 49,411 248 55,734 275 61,740 191 43,031 216 48,512 239 53,720
6x19S-SFC 19.05 3/4 1.51 1.26 0.84 221 49,672 249 56,029 276 62,067 192 43,258 217 48,768 240 54,003
6x19S-SFC 20 1.59 1.39 0.93 244 54,773 275 61,779 304 68,435 212 47,679 239 53,753 265 59,523
6x19S-SFC 21 1.67 1.53 1.03 269 60,410 303 68,134 336 75,472 234 52,567 264 59,263 292 65,625
6x19S-SFC 22 1.75 1.68 1.13 295 66,322 333 74,800 369 82,853 257 57,692 289 65,042 320 72,023
6x19S-SFC 22.23 7/8 1.76 1.71 1.15 301 67,691 340 76,342 376 84,561 262 58,878 295 66,379 327 73,504
6x19S-SFC 23 1.83 1.83 1.23 323 72,510 364 81,775 403 90,577 280 63,056 316 71,089 350 78,720
6x19S-SFC 24 1.90 2.00 1.34 351 78,972 396 89,061 439 98,645 305 68,658 344 77,405 381 85,714
6x19S-SFC 25 1.98 2.17 1.46 381 85,709 430 96,656 476 107,056 331 74,499 374 83,990 414 93,005
6x19S-SFC 25.4 1 2.02 2.24 1.50 394 88,481 444 99,781 492 110,516 342 76,902 386 86,699 427 96,005
6x19S-SFC 26 2.06 2.34 1.57 412 92,721 465 104,562 515 115,810 358 80,578 404 90,843 447 100,595
6x26WS-SFC 27 1.97 2.54 1.71 447 100,413 504 113,233 558 125,412 387 86,896 436 97,965 483 108,481
6x26WS-SFC 28 2.05 2.73 1.83 480 108,005 542 121,793 600 134,891 416 93,452 469 105,356 519 116,666
6x26WS-SFC 28.58 1 ¹⁄8 2.09 2.84 1.91 500 112,496 564 126,856 625 140,497 433 97,329 488 109,728 540 121,507
6x26WS-SFC 29 2.12 2.93 1.97 515 115,874 581 130,664 644 144,714 446 100,246 503 113,016 557 125,148
6x26WS-SFC 30 2.19 3.13 2.11 552 124,019 622 139,846 689 154,882 477 107,279 538 120,945 596 133,928
6x26WS-SFC 31 2.26 3.35 2.25 589 132,440 664 149,340 736 165,395 510 114,550 574 129,142 636 143,005
6x26WS-SFC 31.75 1 ¹⁄4 2.32 3.51 2.36 618 138,937 697 156,665 772 173,506 534 120,160 603 135,467 667 150,008
6x26WS-SFC 32 2.34 3.56 2.40 628 141,137 708 159,145 784 176,252 543 122,059 612 137,608 678 152,380
6x31WS-SFC 33 2.09 3.85 2.59 678 152,525 765 171,984 847 190,470 591 132,826 666 149,747 738 165,821
6x31WS-SFC 34 2.15 4.09 2.75 720 161,923 812 182,579 899 202,202 627 140,998 707 158,960 783 176,023
6x31WS-SFC 35 1 3⁄8 2.22 4.33 2.91 763 171,602 861 193,490 953 214,284 665 149,414 749 168,448 830 186,530
6x31WS-SFC 36 2.28 4.58 3.08 808 181,560 911 204,718 1008 226,717 703 158,074 793 178,211 878 197,341
6x31WS-SFC 37 2.34 4.84 3.25 853 191,800 962 216,262 1065 239,500 743 166,978 837 188,249 927 208,457
6x31WS-SFC 38 1 ¹⁄2 2.41 5.11 3.43 900 202,320 1015 228,122 1124 252,634 783 176,126 883 198,562 978 219,877
6x36WS-SFC 39 2.19 5.48 3.68 963 216,493 1086 244,101 1202 270,328 844 189,734 951 213,904 1054 236,865
6x36WS-SFC 40 2.25 5.76 3.87 1013 227,750 1142 256,791 1265 284,380 888 199,589 1001 225,014 1108 249,168
6x36WS-SFC 41 2.30 6.05 4.07 1064 239,291 1200 269,802 1329 298,788 933 209,693 1052 236,405 1164 261,782
6x36WS-SFC 41.28 1 5⁄8 2.32 6.13 4.12 1079 242,515 1216 273,437 1347 302,813 945 212,515 1066 239,587 1180 265,305
6x36WS-SFC 42 2.36 6.35 4.27 1117 251,117 1259 283,135 1395 313,552 979 220,046 1104 248,078 1222 274,708
6x36WS-SFC 43 2.41 6.66 4.47 1171 263,228 1320 296,789 1462 328,672 1026 230,650 1157 260,032 1281 287,945
6x36WS-SFC 44 2.47 6.97 4.68 1226 275,624 1382 310,764 1531 344,147 1074 241,502 1211 272,267 1341 301,493
6x36WS-SFC 44.45 1 3⁄4 2.50 7.11 4.78 1251 281,296 1411 317,158 1562 351,227 1096 246,467 1236 277,864 1369 307,692
6x36WS-SFC 45 2.53 7.29 4.90 1282 288,305 1446 325,061 1601 359,978 1124 252,604 1267 284,783 1403 315,353
6x36WS-SFC 46 2.58 7.62 5.12 1340 301,271 1511 339,679 1673 376,165 1174 263,956 1324 297,581 1466 329,525
6x36WS-SFC 47 2.64 7.95 5.35 1399 314,522 1577 354,618 1747 392,708 1226 275,557 1382 310,660 1530 344,007
6x36WS-SFC 47.63 1 7⁄8 2.67 8.17 5.49 1437 322,949 1620 364,118 1794 403,228 1259 282,934 1419 318,977 1571 353,217
6x36WS-SFC 48 2.70 8.30 5.58 1459 328,058 1645 369,878 1822 409,606 1278 287,408 1441 324,020 1596 358,802
6x36WS-SFC 49 2.75 8.65 5.81 1521 341,879 1715 385,460 1899 426,861 1332 299,508 1502 337,661 1663 373,908
6x36WS-SFC 50 2.81 9.00 6.05 1584 355,985 1785 401,362 1977 444,471 1387 311,857 1564 351,584 1732 389,325
6x36WS-SFC 50.8 2 2.85 9.29 6.24 1635 367,475 1843 414,316 2041 458,815 1432 321,916 1614 362,925 1788 401,883
6x36WS-SFC 51 2.86 9.37 6.29 1648 370,376 1858 417,587 2057 462,436 1443 324,456 1627 365,788 1802 405,054
6x36WS-SFC 52 2.92 9.74 6.54 1713 385,052 1931 434,132 2139 480,758 1500 337,305 1692 380,273 1873 421,094
6x36WS-SFC 53 2.98 10.12 6.80 1779 400,013 2006 450,999 2222 499,435 1559 350,403 1757 395,040 1946 437,445
6x36WS-SFC 54 2 1⁄8 3.03 10.50 7.06 1847 415,259 2083 468,186 2306 518,468 1618 363,750 1824 410,088 2020 454,108
6x36WS-SFC 55 3.09 10.89 7.32 1916 430,789 2160 485,696 2393 537,857 1679 377,347 1892 425,417 2095 471,083
6x36WS-SFC 56 3.14 11.29 7.59 1987 446,605 2240 503,526 2480 557,601 1740 391,194 1962 441,027 2172 488,369
6x36WS-SFC 57 3.20 11.70 7.86 2058 462,706 2321 521,678 2570 577,701 1803 405,289 2032 456,919 2251 505,966
6x36WS-SFC 57.15 2 1⁄4 3.21 11.76 7.90 2069 465,146 2333 524,428 2583 580,747 1812 407,425 2043 459,327 2263 508,633
6x36WS-SFC 58 3.26 12.11 8.14 2131 479,092 2403 540,151 2661 598,157 1867 419,635 2104 473,092 2330 523,875
6x36WS-SFC 59 3.31 12.53 8.42 2205 495,762 2486 558,945 2753 618,969 1932 434,230 2178 489,546 2411 542,096
6x36WS-SFC 60 3.37 12.96 8.71 2281 512,718 2571 578,061 2847 640,137 1998 449,074 2252 506,281 2494 560,628
6x36WS-SFC 60.33 2 3⁄8 3.39 13.10 8.81 2305 518,290 2599 584,342 2878 647,093 2019 453,952 2277 511,781 2521 566,718
6x36WS-SFC 61 3.43 13.40 9.00 2357 529,958 2658 597,498 2943 661,660 2065 464,168 2328 523,298 2578 579,471
6x36WS-SFC 62 3.48 13.84 9.30 2435 547,484 2746 617,256 3041 683,539 2133 479,511 2405 540,596 2663 598,626
6x36WS-SFC 63 3.54 14.29 9.60 2515 565,294 2835 637,335 3139 705,774 2202 495,104 2483 558,175 2749 618,092
6x36WS-SFC 63.5 2 1⁄2 3.57 14.52 9.76 2555 574,306 2880 647,495 3189 717,024 2237 502,994 2522 567,070 2793 627,942
6x36WS-SFC 64 3.59 14.75 9.91 2595 583,390 2926 657,736 3240 728,364 2273 510,947 2562 576,035 2837 637,870
6x36WS-SFC 65 3.65 15.21 10.22 2677 601,770 3018 678,458 3342 751,310 2344 527,039 2643 594,177 2927 657,959
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
