RED 1

Fit for purpose

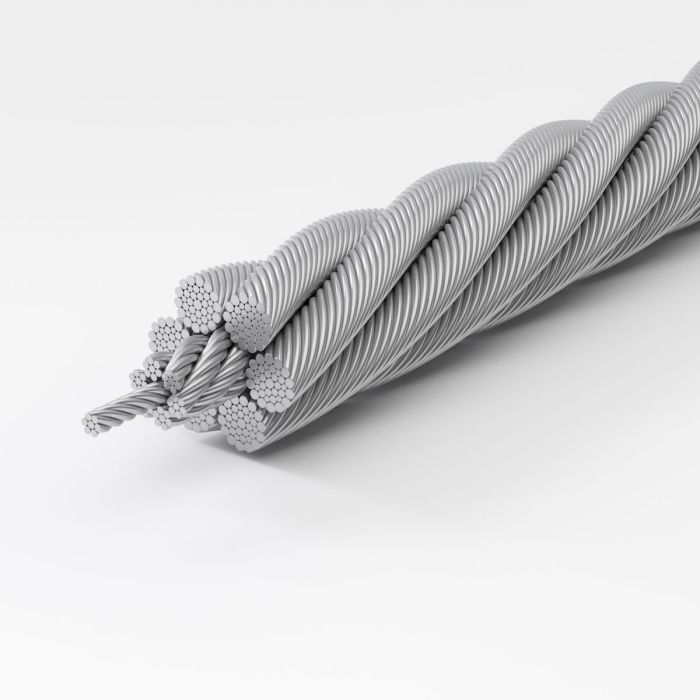

Premium reliable 6-strand rope with non-compacted outer strands and a non-compacted independent wire rope core.

Specifications

  • Lang lay or ordinary lay, right and left lay
  • 19 – 26 mm: 6x19S -IWRC
  • 27 – 32 mm: 6x26WS-IWRC
  • 33 – 38 mm: 6x31WS-IWRC
  • 39 – 65 mm: 6x36WS-IWRC
  • Conformity: EN 12385-6 (other standards available upon request)
  • Use without rope swivel
  • Rope finish: bright, galvanized class B, ZnAl

✘ SUPERFILL®
✘ PLASTFILL®

Premium reliable 6-strand rope with non-compacted outer strands and a non-compacted independent wire rope core. Mainly used on Koepe friction winders and single-layer drum winders.

Benefits

  • Non-rotation resistant rope
  • Good breaking force
  • Medium resistance to wear and drum crushing
  • High flexibility and bending fatigue performance
  • Low rope elongation
  • Good radial stability

All technical data and information for the perfect rope selection

Hoist ropes, balance ropes, shaft sinking ropes and guide ropes. TEUFELBERGER has published a new mining catalog with 20 high-performance steel wire ropes that gives you an overview of all relevant rope data, provides comprehensive rope know-how and helps you select the right rope.

Construction Diameter
[mm]
Diameter
[inch]
Außendurchmesser
[mm]
Weight
[kg/m]
Weight
[lbf/ft]
Calculated (= min. aggregated) breaking force at rope grade 1570 N/mm²
[kN]
Berechnete (=min. aggregierte) Bruchkraft bei Seilneigung 1570 N/mm²
[lbf]
Calculated (= min. aggregated) breaking force at rope grade 1770 N/mm²
[kN]
Calculated (= min. aggregated) breaking force at rope grade 1770 N/mm²
[lbf]
Calculated (= min. aggregated) breaking force at rope grade 1960 N/mm²
[kN]
Calculated (= min. aggregated) breaking force at rope grade 1960 N/mm²
[lbf]
Minimum breaking force at rope grade 1570 N/mm²
[kN]
Minimum breaking force at rope grade 1570 N/mm²
[lbf]
Minimum breaking force at rope grade 1770 N/mm²
[kN]
Minimum breaking force at rope grade 1770 N/mm²
[lbf]
Minimum breaking force at rope grade 1960 N/mm²
[kN]
Minimum breaking force at rope grade 1960 N/mm²
[lbf]
6x19S-IWRC 19 1.53 1.46 0.98 269 60,419 303 68,144 336 75,483 218 49,035 246 55,282 272 61,216
6x19S-IWRC 19.05 3/4 1.54 1.47 0.99 270 60,738 305 68,504 338 75,882 219 49,293 247 55,573 274 61,538
6x19S-IWRC 20 1.61 1.62 1.09 298 66,970 336 75,530 372 83,662 242 54,332 272 61,254 302 67,829
6x19S-IWRC 21 1.69 1.79 1.20 329 73,857 371 83,295 410 92,260 266 59,902 300 67,532 333 74,782
6x19S-IWRC 22 1.77 1.96 1.32 361 81,081 407 91,438 451 101,278 292 65,742 330 74,117 365 82,073
6x19S-IWRC 22.23 ⁷⁄8 1.79 2.00 1.35 368 82,752 415 93,323 460 103,365 298 67,094 336 75,641 373 83,760
6x19S-IWRC 23 1.85 2.15 1.44 394 88,640 445 99,961 492 110,715 320 71,855 360 81,008 399 89,704
6x19S-IWRC 24 1.94 2.34 1.57 429 96,536 484 108,862 536 120,572 348 78,239 392 88,205 434 97,674
6x19S-IWRC 25 2.02 2.54 1.70 466 104,767 526 118,142 582 130,848 378 84,894 426 95,709 471 105,983
6x19S-IWRC 25.4 1 2.05 2.62 1.76 481 108,154 543 121,960 601 135,076 390 87,633 439 98,796 487 109,401
6x19S-IWRC 26 2.10 2.74 1.84 504 113,334 568 127,801 630 141,543 408 91,822 460 103,519 510 114,631
6x26WS-IWRC 27 2.01 2.98 2.00 547 123,046 617 138,749 684 153,667 440 99,021 497 111,635 550 123,618
6x26WS-IWRC 28 2.08 3.20 2.15 589 132,346 664 149,234 735 165,278 474 106,492 534 120,057 591 132,945
6x26WS-IWRC 28.58 1 1⁄8 2.13 3.34 2.24 613 137,847 691 155,436 766 172,145 493 110,910 556 125,039 616 138,461
6x26WS-IWRC 29 2.16 3.44 2.31 632 141,985 712 160,101 789 177,311 508 114,234 573 128,786 634 142,611
6x26WS-IWRC 30 2.23 3.68 2.47 676 151,961 762 171,348 844 189,766 544 122,248 613 137,821 679 152,615
6x26WS-IWRC 31 2.31 3.93 2.64 722 162,276 814 182,977 901 202,643 581 130,534 655 147,162 725 162,959
6x26WS-IWRC 31.75 1 1⁄4 2.36 4.12 2.77 757 170,234 854 191,949 946 212,578 609 136,926 687 154,369 760 170,940
6x26WS-IWRC 32 2.38 4.18 2.81 769 172,929 867 194,987 961 215,942 619 139,091 698 156,810 772 173,642
6x31WS-IWRC 33 2.13 4.51 3.03 829 186,336 935 210,101 1035 232,679 658 147,920 742 166,763 821 184,665
6x31WS-IWRC 34 2.19 4.79 3.22 880 197,814 992 223,041 1099 247,008 698 157,021 787 177,023 872 196,026
6x31WS-IWRC 35 1 3⁄8 2.26 5.07 3.41 932 209,634 1051 236,368 1164 261,765 740 166,393 834 187,590 924 207,726
6x31WS-IWRC 36 2.32 5.37 3.61 987 221,797 1112 250,081 1232 276,950 783 176,037 883 198,462 978 219,766
6x31WS-IWRC 37 2.38 5.67 3.81 1042 234,303 1175 264,180 1301 292,562 827 185,953 933 209,641 1033 232,145
6x31WS-IWRC 38 1 1⁄2 2.45 5.98 4.02 1099 247,152 1240 278,665 1373 308,602 872 196,140 984 221,126 1089 244,863
6x36WS-IWRC 39 2.23 6.37 4.28 1171 263,294 1321 296,864 1462 328,755 919 206,599 1036 232,917 1147 257,920
6x36WS-IWRC 40 2.29 6.70 4.50 1232 276,982 1389 312,294 1538 345,842 967 217,330 1090 245,015 1207 271,316
6x36WS-IWRC 41 2.34 7.04 4.73 1294 291,015 1460 328,116 1616 363,361 1016 228,332 1145 257,419 1268 285,051
6x36WS-IWRC 41.28 1 5⁄8 2.36 7.14 4.80 1312 294,935 1479 332,535 1638 368,255 1029 231,405 1160 260,884 1285 288,888
6x36WS-IWRC 42 2.40 7.39 4.97 1358 305,395 1532 344,328 1696 381,313 1066 239,606 1202 270,129 1331 299,126
6x36WS-IWRC 43 2.46 7.75 5.21 1424 320,122 1605 360,930 1778 399,698 1117 251,152 1259 283,146 1395 313,540
6x36WS-IWRC 44 2.51 8.11 5.45 1491 335,195 1681 377,923 1862 418,516 1170 262,969 1319 296,468 1460 328,293
6x36WS-IWRC 44.45 1 3⁄4 2.54 8.28 5.56 1522 342,091 1716 385,698 1900 427,125 1194 268,375 1346 302,563 1490 335,042
6x36WS-IWRC 45 2.57 8.48 5.70 1560 350,614 1758 395,307 1947 437,766 1224 275,058 1379 310,097 1527 343,384
6x36WS-IWRC 46 2.63 8.87 5.96 1630 366,381 1837 413,082 2035 457,448 1279 287,419 1441 324,032 1596 358,816
6x36WS-IWRC 47 2.69 9.26 6.22 1701 382,493 1918 431,247 2124 477,563 1335 300,051 1505 338,274 1666 374,586
6x36WS-IWRC 47,63 1 7⁄8 2.72 9.50 6.39 1747 392,740 1970 442,799 2181 490,355 1370 308,084 1545 347,330 1711 384,614
6x36WS-IWRC 48 2.74 9.65 6.49 1775 398,952 2001 449,803 2216 498,111 1392 312,955 1569 352,822 1738 390,695
6x36WS-IWRC 49 2.80 10.06 6.76 1849 415,758 2085 468,749 2309 519,091 1451 326,130 1636 367,676 1811 407,144
6x36WS-IWRC 50 2.86 10.47 7.04 1926 432,910 2171 488,086 2404 540,504 1511 339,578 1703 382,836 1886 423,931
6x36WS-IWRC 50.8 2 2.90 10.81 7.27 1988 446,881 2241 503,837 2482 557,946 1559 350,531 1758 395,185 1947 437,606
6x36WS-IWRC 51 2.91 10.90 7.32 2004 450,409 2259 507,814 2501 562,350 1572 353,297 1772 398,303 1962 441,058
6x36WS-IWRC 52 2.97 11.33 7.61 2083 468,254 2348 527,933 2601 584,628 1634 367,287 1842 414,075 2040 458,524
6x36WS-IWRC 53 3.03 11.77 7.91 2164 486,446 2440 548,442 2702 607,338 1697 381,550 1913 430,155 2119 476,329
6x36WS-IWRC 54 2 1⁄8 3.09 12.22 8.21 2246 504,984 2533 569,341 2805 630,481 1762 396,083 1986 446,540 2200 494,474
6x36WS-IWRC 55 3.14 12.67 8.52 2330 523,868 2627 590,632 2909 654,057 1828 410,889 2061 463,232 2282 512,957
6x36WS-IWRC 56 3.20 13.14 8.83 2416 543,100 2724 612,313 3016 678,065 1895 425,966 2136 480,230 2365 531,780
6x36WS-IWRC 57 3.26 13.61 9.15 2503 562,677 2822 634,385 3125 702,506 1963 441,315 2213 497,534 2451 550,941
6x36WS-IWRC 57.15 2 1⁄4 3.27 13.68 9.20 2516 565,644 2837 637,729 3141 706,210 1973 443,641 2225 500,156 2464 553,845
6x36WS-IWRC 58 3.31 14.09 9.47 2592 582,601 2922 656,847 3236 727,380 2033 456,936 2291 515,144 2537 570,442
6x36WS-IWRC 59 3.37 14.58 9.80 2682 602,872 3023 679,700 3348 752,686 2103 472,828 2371 533,061 2626 590,282
6x36WS-IWRC 60 3.43 15.08 10.14 2773 623,489 3127 702,943 3463 778,425 2175 488,992 2452 551,284 2715 610,461
6x36WS-IWRC 60.33 2 3⁄8 3.45 15.25 10.25 2804 630,265 3161 710,582 3500 786,883 2199 494,304 2479 557,272 2745 617,093
6x36WS-IWRC 61 3.49 15.59 10.48 2867 644,453 3232 726,578 3579 804,596 2248 505,427 2535 569,813 2807 630,980
6x36WS-IWRC 62 3.54 16.11 10.82 2961 665,763 3339 750,603 3697 831,200 2323 522,135 2618 588,649 2900 651,837
6x36WS-IWRC 63 3.60 16.63 11.17 3058 687,420 3447 775,018 3818 858,236 2398 539,114 2704 607,791 2994 673,034
6x36WS-IWRC 63.5 2 1⁄2 3.63 16.89 11.35 3107 698,378 3502 787,372 3878 871,917 2436 547,705 2747 617,476 3042 683,759
6x36WS-IWRC 64 3.66 17.16 11.53 3156 709,423 3558 799,824 3940 885,705 2475 556,364 2790 627,239 3090 694,569
6x36WS-IWRC 65 3.71 17.70 11.89 3255 731,773 3670 825,021 4064 913,607 2553 573,886 2878 646,993 3187 716,444
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
