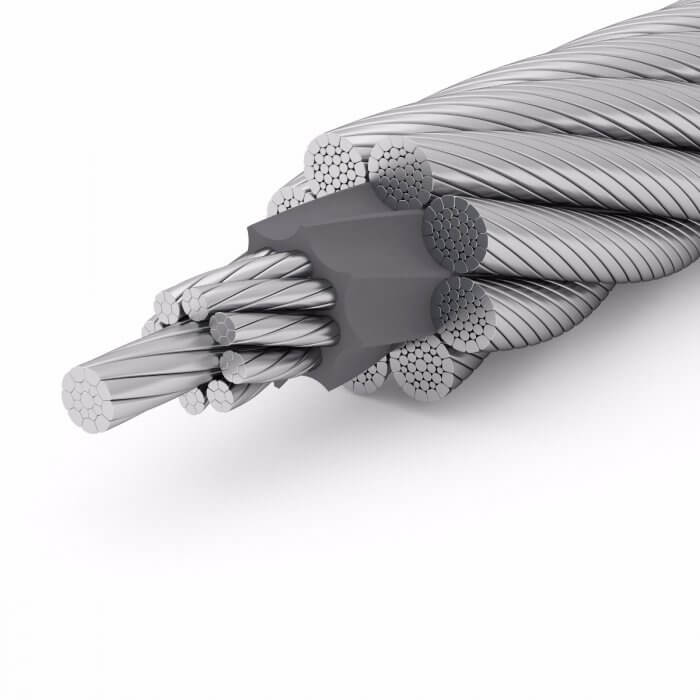

PERFECTION M8
This galvanized 8-strand high-end steel wire rope for marine riser tensioners (MRT) was developed explicitly for high bending cycles in MRT systems. The cost-effective solution!
Specifications
Ordinary or lang's lay, right or left-handed
8 x K36WS EPIWRC, RCN 13
Use without swivel
✔ PLASTFILL®
✔ SUPERFILL®
MRT – marine riser tensioners are essential installations on floating oil platforms to compensate the wave motion of the ocean and to ensure the smooth and profitable operation of the platform.
In this application scenario, the ropes run around rope sheaves in adverse conditions and in a continuously loaded state in order to retain the drilling rig in its position.
Benefits of PERFECTION M8:
- Reduced rope wear and thus longer service life thanks to the eight compacted outer strands
- Less wear on the rope sheaves due to lower surface pressure in the 8-strand rope construction
- Superior performance under reverse bending cycles and very high flexibility due to outer strands with higher number of wires
- Resistant to corrosion thanks to high quality raw materials and the permanent lubrication of the core provided by the PLASTFILL® insert
- Reliability and safe operation of the system ensured by reducing the specific load through the high breaking forces achieved by SUPERFILL® compaction technology
| Product name | Diameter [mm] | Diameter [inch] | Weight [kg/m] | Weight [lbf/ft] | Minimum breaking force at a tensile strength of 1770 N/mm² [kN] | Minimum breaking force at a tensile strength of 1770 N/mm² [lbf] | Minimum breaking force at a tensile strength of 1960 N/mm² [kN] | Minimum breaking force at a tensile strength of 1960 N/mm² [lbf] |
|---|---|---|---|---|---|---|---|---|
| PERFECTION M8 | 38.10 | 1 1/2" | 6.50 | 4.36 | 1 064 | 239 197 | 1 178 | 264 825 |
| PERFECTION M8 | 44.45 | 1 3/4" | 9.14 | 6.13 | 1 600 | 359 694 | 1 770 | 397 912 |
| PERFECTION M8 | 50.80 | 2" | 11.90 | 7.98 | 1 805 | 405 780 | 1 998 | 449 168 |
| PERFECTION M8 | 54 | 2 1/8" | 13.41 | 9 | 2 135 | 479 967 | 2 348 | 527 851 |
| PERFECTION M8 | 57.15 | 2 1/4" | 14.50 | 9.73 | 2 452 | 551 187 | 2 916 | 655 543 |
| PERFECTION M8 | 63.50 | 2 1/2" | 19.48 | 13.07 | 3 250 | 730 629 | 3 600 | 809 312 |
| PERFECTION M8 | 64 | 19.48 | 13.07 | 3 250 | 730 629 | 3 600 | 809 312 | |
| PERFECTION M8 | 69.85 | 2 3/4" | 23.12 | 15.51 | 3 798 | 853 824 | 3 960 | 890 243 |
| PERFECTION M8 | 73.02 | 2 7/8" | 24.15 | 16.20 | 3 971 | 892 716 | 4 326 | 972 523 |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
