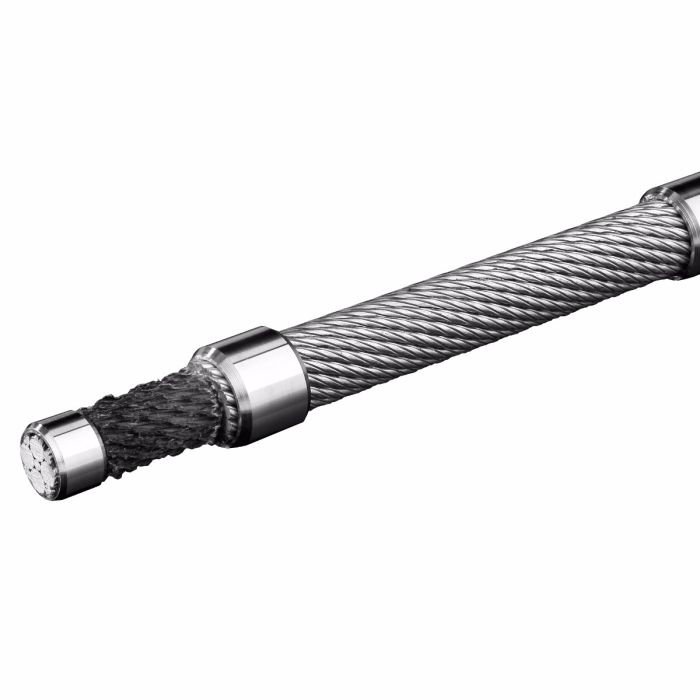

NOROTEC® MT 91
Hoist rope
NOROTEC® MT 91 is a rotation resistant high performance hoist rope featuring an innovative design, high breaking forces, high radial stability and low elongation.
Specifications
- Breaking force: +++++
- Bending fatigue behavior: ++++
- Radial stability: +++++
- Low torsional tendency: +++++
- Low elongation: ++++
- Multilayer spooling: +++++
- Ordinary lay or Lang’s lay, right or left lay, galvanized and bright
- Constructions:
- 20–30 mm: 16 x K6–EPIWRC (K)
- 32–42 mm: 16 x K7–EPIWRC (K)
- 44–70 mm: 16 x K17F–EPIWRC (K)
- Certifications: DIN 21254 and EN12385-6; other certificates gladly provided on request
- SUPERFILL®
- PLASTFILL®
NOROTEC® MT 91 features a revolutionary design and is manufactured of premium materials in a perfectly harmonized production process. It combines all characteristics that a rotation resistant high performance hoist rope needs for your use. Being very versatile, it excels particularly as hoist rope in the following applications:
- Drum applications in single and multilayer spooling
- Friction hoists
- Shaft sinking projects (Galloway, bucket/cage)
Our NOROTEC® MT 91 can be adapted individually to your respective requirements and applications. By adjusting the rope accordingly, the design can be optimally balanced in terms of wear, service life, breaking load, etc.
The hoist rope NOROTEC® MT 91 is characterized by the following benefits:
- Outer strands compacted by means of SUPERFILL® technology making the rope extremely resistant to wear and plastic deformation
- Excellent spooling characteristics due to highest dimensional stability under lateral pressure - even in multilayer spooling use
- In spite of the compact rope design, the rope is very flexible and durable in terms of bending cycles.
- Extremely high resistance to external environmental influences and the ingress of dirt due to PLASTFILL® insert resulting in a perfect lubrication of the inner rope
- Supreme operational safety due to high breaking forces and resistance to torsion
- Long service life even in case of shock loads due to the 4-strand design of the inner rope
- Rotation resistance making the rope suited for use in very deep hoisting shafts
- Low rope elongation
- Rotation resistant rope construction facilitating installation and ensuring protection of the drive sheave linings of friction hoists.
| Diameter | Weight | Mindestbruchkräfte | |||||
|---|---|---|---|---|---|---|---|
| Festigkeitsklasse 1770 N/mm² | Festigkeitsklasse 1960 N/mm² | ||||||
| [mm] | [inch] | [kg/m] | [lbs/ft] | [kN] | [lbf] | [kN] | [lbf] |
| 20 | 2.03 | 1.37 | 335 | 75 226 | 370 | 83 238 | |
| 21 | 2.22 | 1.49 | 369 | 83 015 | 409 | 91 918 | |
| 22 | 7/8 | 2.46 | 1.65 | 404 | 90 805 | 447 | 100 598 |
| 24 | 2.88 | 1.93 | 478 | 107 497 | 530 | 119 070 | |
| 25 | 1.00 | 3.09 | 2.07 | 532 | 119 515 | 589 | 132 424 |
| 26 | 3.41 | 2.29 | 561 | 126 192 | 621 | 139 546 | |
| 27 | 3.67 | 2.46 | 603 | 135 540 | 667 | 150 006 | |
| 28 | 3.96 | 2.66 | 648 | 145 777 | 718 | 161 357 | |
| 28.57 | 1 1/8 | 4.06 | 2.73 | 661 | 148 671 | 737 | 165 585 |
| 29 | 4.18 | 2.81 | 694 | 156 015 | 769 | 172 930 | |
| 30 | 4.52 | 3.04 | 742 | 166 698 | 822 | 184 726 | |
| 32 | 1 1/4 | 5.14 | 3.45 | 844 | 189 844 | 935 | 210 097 |
| 34 | 5.78 | 3.88 | 948 | 213 213 | 1 050 | 236 137 | |
| 36 | 6.51 | 4.37 | 1 061 | 238 585 | 1 175 | 264 180 | |
| 38 | 1 1/2 | 7.20 | 4.83 | 1 225 | 275 308 | 1 355 | 304 686 |
| 40 | 7.97 | 5.35 | 1 304 | 293 113 | 1 443 | 324 494 | |
| 42 | 8.79 | 5.90 | 1 437 | 323 158 | 1 592 | 357 878 | |
| 44.45 | 1 3/4 | 9.29 | 6.23 | 1 625 | 365 222 | 1 799 | 404 393 |
| 46 | 10.04 | 6.73 | 1 740 | 391 262 | 1 940 | 436 219 | |
| 48 | 10.90 | 7.31 | 1 895 | 425 981 | 2 099 | 471 606 | |
| 50 | 12.15 | 8.15 | 2 055 | 462 036 | 2 276 | 511 667 | |
| 50.80 | 2 | 12.72 | 8.54 | 2 122 | 476 948 | 2 350 | 528 359 |
| 52 | 13.34 | 8.95 | 2 224 | 499 872 | 2 462 | 553 509 | |
| 54 | 2 1/8 | 14.19 | 9.52 | 2 398 | 539 042 | 2 655 | 596 908 |
| 56 | 14.97 | 10.05 | 2 579 | 579 771 | 2 855 | 641 866 | |
| 58 | 16.46 | 11.05 | 2 766 | 621 835 | 3 063 | 688 603 | |
| 60 | 2 3/8 | 17.56 | 11.78 | 2 960 | 665 457 | 3 278 | 736 899 |
| 62 | 18.52 | 12.43 | 3 161 | 710 637 | 3 501 | 786 975 | |
| 64 | 20.02 | 13.43 | 3 368 | 757 152 | 3 729 | 838 387 | |
| 66 | 20.71 | 13.90 | 3 582 | 805 225 | 3 966 | 891 579 | |
| 68 | 21.99 | 14.75 | 3 803 | 854 856 | 4 210 | 946 551 | |
| 70 | 23.43 | 15.72 | 4 029 | 905 823 | 4 462 | 1 003 082 | |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
