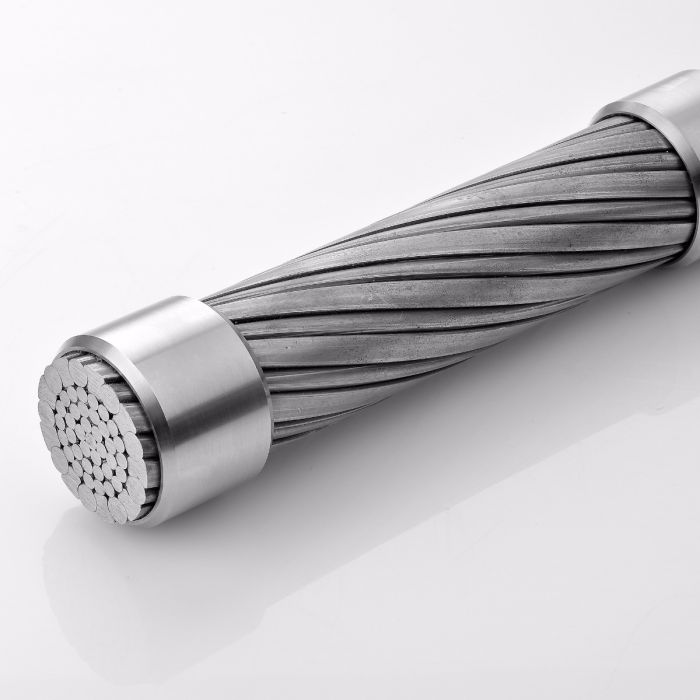

Half-locked coil guide rope of wear resistant high-grade materials featuring a stressless rope structure achieved by means of our STRESSLESS technology

Specifications

Certification: EN12385-7; other certificates gladly provided on request

Our half-locked coil guide rope excels both in drum hoists and in friction hoist installations all over the world. Of course, this guide rope is equipped with the STRESSLESS technology developed by TEUFELBERGER.


In case of wire breakage in the outer layer, the STRESSLESS rope structure achieved by means of the STRESSLESS technology ensures that all wires remain within the rope structure, thus allowing operation to be continued safely and smoothly.


We can customize the half-locked coil guide rope individually to your respective requirements and needs to thus optimally balance the design in terms of service life, breaking load, etc. Moreover, our steel wire ropes excel due to the use of high grade and wear resistant materials, which, in turn, influence the service life and much more.


Therefore, our half-locked coil guide ropes with STRESSLESS technology feature the following benefits:

  • Big wear resistant outer wires
  • Very low elongation
  • Closed round rope surface ensuring best guiding properties
  • Due to the STRESSLESS technology, any broken wires in the outer layer will remain within the rope structure (safe and smooth continuation of operation is possible).
  • Low torsional tendency making the rope safe and easy to install
  • Optimally balanced wire dimensions to avoid pipe and arch formation inside the rope
  • Resistance to external environmental influences and ingress of dirt due to the closed rope surface
            Diameter
            [mm]
            Diameter
            [inch]
            Weight
            [kg/m]
            Weight
            [lbs/ft]
            Minimum breaking force at a tensile strength of 1080 N/mm²
            [kN]
            Minimum breaking force at a tensile strength of 1080 N/mm²
            [lbs]
            Minimum breaking force at a tensile strength of 1180 N/mm²
            [kN]
            Minimum breaking force at a tensile strength of 1180 N/mm²
            [lbs]
            Minimum breaking force at a tensile strength of 1270 N/mm²
            [kN]
            Minimum breaking force at a tensile strength of 1270 N/mm²
            [lbs]
            22 7/8" 2.67 1.79 311 69,916 340 76,480 365 82,145
            28 4.31 2.90 502 112,950 549 123,408 591 132,821
            29 1 1/8" 4.62 3.11 539 121,162 589 132,380 634 142,477
            30 4.95 3.33 577 129,662 630 141,668 678 152,473
            32 1 1/4" 5.63 3.78 634 142,609 693 155,813 746 167,697
            34 6.36 4.27 716 160,992 782 175,899 842 189,315
            35 1 3/8" 6.74 4.53 759 170,601 829 186,398 892 200,615
            36 7.13 4.79 803 180,489 877 197,201 944 212,242
            38 1 1/2" 7.94 5.34 895 201,101 977 219,721 1,052 236,480
            40 8.80 5.91 991 222,826 1,083 243,458 1,166 262,027
            41 9.24 6.21 1,017 228,725 1,112 249,903 1,196 268,964
            42 1 5/8" 9.70 6.52 1,068 240,019 1,167 262,242 1,255 282,244
            44 10.65 7.15 1,172 263,422 1,280 287,813 1,378 309,764
            45 1 3/4" 11.20 7.53 1,239 278,538 1,353 304,211 1,457 327,524
            46 11.64 7.82 1,281 287,913 1,399 314,572 1,506 338,565
            48 1 7/8" 12.70 8.53 1,401 314,957 1,530 343,958 1,647 370,328
            50 13.75 9.24 1,513 340,162 1,653 371,659 1,779 400,006
            51 2" 14.20 9.54 1,559 350,477 1,704 383,131 1,833 412,176
            52 14.78 9.93 1,624 365,090 1,774 398,800 1,910 429,374
            54 2 1/8" 16 10.75 1,764 396,563 1,928 433,387 2,075 466,445
            56 17.24 11.59 1,898 426,700 2,074 466,209 2,232 501,767
            58 18.50 12.43 2,036 457,722 2,225 500,104 2,395 538,248
            60 2 3/8" 19.80 13.30 2,179 489,834 2,381 535,189 2,562 576,008
            Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
