FLEXMINE® 440(P)

Rotation and wear resistant high performer

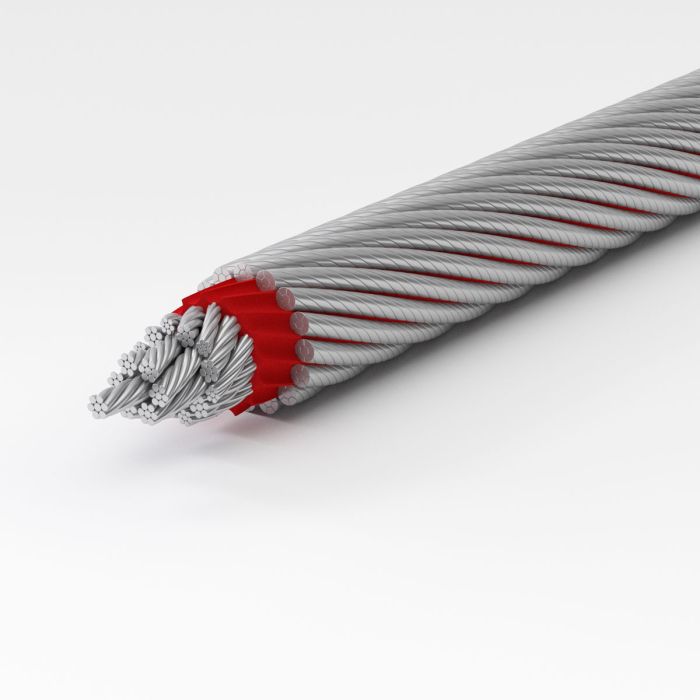

15-strand rotation resistant rope with optional PLASTFILL® insert between the steel core and the outer strands.

Specifications

  • Lang lay or ordinary lay, right and left lay
  • 19 – 65 mm: 15xK7-EPIWRC (or IWRC)
  • Conformity: EN 12385-6 (22-65 mm) / EN 12385-4 (19-21 mm)
    (other standards available upon request)
  • Use with or without rope swivel
  • Rope finish: bright, galvanized class B, ZnAl

✔ SUPERFILL®
✔ PLASTFILL®

15-strand rotation resistant rope with optional PLASTFILL® insert between the steel core and the outer strands. Compacted outer strands with Teufelberger-Redaelli SUPERFILL® compaction technology make the rope wear resistant and ideal for multi-layer drum winders but also suitable for single-layer drum and Koepe friction winders.

Benefits

  • Rotation resistant
  • Good breaking force
  • High resistance to wear and drum crushing
  • High flexibility and bending fatigue performance
  • Very low rope elongation
  • Excellent radial stability
  • Improved shock resistance with PLASTFILL®

All technical data and information for the perfect rope selection

Hoist ropes, balance ropes, shaft sinking ropes and guide ropes. TEUFELBERGER has published a new mining catalog with 20 high-performance steel wire ropes that gives you an overview of all relevant rope data, provides comprehensive rope know-how and helps you select the right rope.

Construction Diameter
[mm]
Diameter
[inch]
Außendurchmesser
[mm]
Weight
[kg/m]
Weight
[lbf/ft]
Calculated (= min. aggregated) breaking force at rope grade 1570 N/mm²
[kN]
Berechnete (=min. aggregierte) Bruchkraft bei Seilneigung 1570 N/mm²
[lbf]
Calculated (= min. aggregated) breaking force at rope grade 1770 N/mm²
[kN]
Calculated (= min. aggregated) breaking force at rope grade 1770 N/mm²
[lbf]
Calculated (= min. aggregated) breaking force at rope grade 1960 N/mm²
[kN]
Calculated (= min. aggregated) breaking force at rope grade 1960 N/mm²
[lbf]
Minimum breaking force at rope grade 1570 N/mm²
[kN]
Minimum breaking force at rope grade 1570 N/mm²
[lbf]
Minimum breaking force at rope grade 1770 N/mm²
[kN]
Minimum breaking force at rope grade 1770 N/mm²
[lbf]
Minimum breaking force at rope grade 1960 N/mm²
[kN]
Minimum breaking force at rope grade 1960 N/mm²
[lbf]
15xK7-IWRC or 15xK7-EPIWRC 19 1.08 1.63 1.09 294 66,123 332 74,574 367 82,604 225 50,636 254 57,087 281 63,215
15xK7-IWRC or 15xK7-EPIWRC 19.05 3/4 1.09 1.64 1.10 296 66,472 333 74,969 369 83,040 226 50,903 255 57,387 283 63,548
15xK7-IWRC or 15xK7-EPIWRC 20 1.14 1.80 1.21 326 73,290 368 82,655 407 91,552 250 56,107 281 63,254 312 70,044
15xK7-IWRC or 15xK7-EPIWRC 21 1.20 1.99 1.34 360 80,826 405 91,150 449 100,959 275 61,857 310 69,737 344 77,223
15xK7-IWRC or 15xK7-EPIWRC 22 1.25 2.18 1.47 395 88,728 445 100,060 493 110,825 302 67,889 340 76,537 377 84,753
15xK7-IWRC or 15xK7-EPIWRC 22.23 7/8 1.27 2.23 1.50 403 90,557 454 102,122 503 113,108 308 69,285 347 78,111 385 86,496
15xK7-IWRC or 15xK7-EPIWRC 23 1.31 2.39 1.60 431 96,999 487 109,384 539 121,150 330 74,201 372 83,653 412 92,633
15xK7-IWRC or 15xK7-EPIWRC 24 1.37 2.60 1.75 470 105,637 530 119,123 587 131,934 359 80,793 405 91,086 449 100,863
15xK7-IWRC or 15xK7-EPIWRC 25 1.43 2.82 1.89 510 114,643 575 129,275 637 143,176 390 87,666 440 98,834 487 109,444
15xK7-IWRC or 15xK7-EPIWRC 25.4 1 1.45 2.91 1.96 526 118,348 594 133,452 657 147,802 403 90,494 454 102,022 503 112,974
15xK7-IWRC or 15xK7-EPIWRC 26 1.48 3.05 2.05 552 124,016 622 139,843 689 154,878 422 94,820 476 106,899 527 118,374
15xK7-IWRC or 15xK7-EPIWRC 27 1.54 3.29 2.21 595 133,756 671 150,824 743 167,038 455 102,254 513 115,280 568 127,655
15xK7-IWRC or 15xK7-EPIWRC 28 1.60 3.54 2.38 640 143,865 722 162,220 799 179,658 489 109,969 551 123,978 611 137,286
15xK7-IWRC or 15xK7-EPIWRC 28.58 1 1/8 1.63 3.68 2.47 667 149,844 752 168,961 832 187,122 509 114,532 574 129,122 636 142,982
15xK7-IWRC or 15xK7-EPIWRC 29 1.65 3.79 2.55 687 154,341 774 174,031 857 192,736 525 117,964 592 132,991 655 147,267
15xK7-IWRC or 15xK7-EPIWRC 30 1.71 4.06 2.73 735 165,184 829 186,255 918 206,273 562 126,240 633 142,321 701 157,599
15xK7-IWRC or 15xK7-EPIWRC 31 1.77 4.33 2.91 785 176,395 885 198,895 980 220,269 600 134,796 676 151,967 749 168,280
15xK7-IWRC or 15xK7-EPIWRC 31.75 1 1/4 1.81 4.55 3.06 823 185,045 928 208,646 1028 231,067 629 141,397 709 159,410 785 176,521
15xK7-IWRC or 15xK7-EPIWRC 32 1.82 4.62 3.10 836 187,974 943 211,948 1044 234,724 639 143,633 720 161,930 798 179,312
15xK7-IWRC or 15xK7-EPIWRC 33 1.88 4.91 3.30 889 199,920 1003 225,416 1110 249,638 679 152,750 766 172,209 848 190,694
15xK7-IWRC or 15xK7-EPIWRC 34 1.94 5.21 3.50 944 212,234 1064 239,299 1179 265,010 721 162,148 813 182,804 900 202,427
15xK7-IWRC or 15xK7-EPIWRC 35 1 3/8 2.00 5.52 3.71 1000 224,915 1128 253,595 1249 280,842 764 171,826 862 193,715 954 214,509
15xK7-IWRC or 15xK7-EPIWRC 36 2.05 5.85 3.93 1059 237,964 1193 268,307 1322 297,132 809 181,785 912 204,943 1009 226,942
15xK7-IWRC or 15xK7-EPIWRC 37 2.11 6.17 4.15 1118 251,381 1261 283,432 1396 313,881 854 192,025 963 216,486 1066 239,725
15xK7-IWRC or 15xK7-EPIWRC 38 1 1/2 2.17 6.51 4.38 1180 265,165 1330 298,972 1473 331,090 901 202,545 1016 228,347 1125 252,858
15xK7-IWRC or 15xK7-EPIWRC 39 2.22 6.86 4.61 1242 279,316 1401 314,927 1551 348,757 949 213,345 1070 240,523 1185 266,342
15xK7-IWRC or 15xK7-EPIWRC 40 2.28 7.22 4.85 1307 293,836 1474 331,296 1632 366,883 998 224,426 1125 253,016 1246 280,175
15xK7-IWRC or 15xK7-EPIWRC 41 2.34 7.58 5.09 1373 308,722 1548 348,079 1715 385,467 1049 235,788 1182 265,824 1309 294,359
15xK7-IWRC or 15xK7-EPIWRC 41,28 1 5/8 2.35 7.68 5.16 1392 312,881 1569 352,767 1738 390,659 1063 238,961 1198 269,402 1327 298,321
15xK7-IWRC or 15xK7-EPIWRC 42 2.39 7.96 5.35 1441 323,977 1625 365,276 1799 404,511 1101 247,430 1241 278,950 1374 308,893
15xK7-IWRC or 15xK7-EPIWRC 43 2.45 8.34 5.60 1511 339,599 1703 382,888 1886 424,014 1154 259,353 1301 292,391 1440 323,778
15xK7-IWRC or 15xK7-EPIWRC 44 2.51 8.73 5.87 1582 355,588 1783 400,915 1975 443,975 1208 271,556 1362 306,149 1508 339,012
15xK7-IWRC or 15xK7-EPIWRC 44.45 1 3/4 2.53 8.91 5.99 1614 362,904 1820 409,162 2016 453,107 1233 277,139 1390 312,443 1539 345,982
15xK7-IWRC or 15xK7-EPIWRC 45 2.57 9.13 6.14 1654 371,945 1865 419,356 2066 464,395 1263 284,039 1424 320,223 1577 354,597
15xK7-IWRC or 15xK7-EPIWRC 46 2.62 9.54 6.41 1729 388,670 1949 438,211 2159 485,275 1320 296,804 1488 334,613 1648 370,532
15xK7-IWRC or 15xK7-EPIWRC 47 2.68 9.96 6.69 1805 405,762 2035 457,481 2254 506,613 1378 309,848 1554 349,320 1721 386,817
15xK7-IWRC or 15xK7-EPIWRC 47.63 1 7/8 2.71 10.23 6.87 1853 416,632 2089 469,734 2314 520,182 1415 318,144 1595 358,672 1767 397,173
15xK7-IWRC or 15xK7-EPIWRC 48 2.74 10.39 6.98 1883 423,222 2123 477,165 2350 528,410 1438 323,174 1621 364,342 1795 403,453
15xK7-IWRC or 15xK7-EPIWRC 49 2.79 10.83 7.28 1962 441,050 2212 497,263 2449 550,666 1498 336,780 1689 379,681 1870 420,438
15xK7-IWRC or 15xK7-EPIWRC 50 2.85 11.28 7.58 2043 459,245 2303 517,776 2551 573,380 1560 350,666 1759 395,337 1947 437,774
15xK7-IWRC or 15xK7-EPIWRC 50.8 2 2.90 11.64 7.82 2109 474,065 2378 534,484 2633 591,883 1610 361,977 1815 408,089 2010 451,895
15xK7-IWRC or 15xK7-EPIWRC 51 2.91 11.73 7.88 2125 477,807 2396 538,703 2654 596,554 1623 364,833 1830 411,308 2026 455,460
15xK7-IWRC or 15xK7-EPIWRC 52 2.96 12.20 8.19 2210 496,737 2491 560,045 2759 620,187 1687 379,280 1902 427,596 2106 473,496
15xK7-IWRC or 15xK7-EPIWRC 53 3.02 12.67 8.51 2295 516,035 2588 581,801 2866 644,278 1753 394,008 1976 444,200 2188 491,883
15xK7-IWRC or 15xK7-EPIWRC 54 2 1/8 3.08 13.15 8.84 2383 535,700 2687 603,971 2975 668,828 1819 409,017 2051 461,121 2271 510,620
15xK7-IWRC or 15xK7-EPIWRC 55 3.14 13.64 9.17 2472 555,733 2787 626,556 3086 693,837 1887 424,306 2128 478,358 2356 529,707
15xK7-IWRC or 15xK7-EPIWRC 56 3.19 14.14 9.50 2563 576,134 2889 649,555 3200 719,306 1957 439,875 2206 495,910 2443 549,144
15xK7-IWRC or 15xK7-EPIWRC 57 3.25 14.65 9.85 2655 596,902 2994 672,969 3315 745,232 2027 455,726 2285 513,780 2531 568,931
15xK7-IWRC or 15xK7-EPIWRC 57.15 2 1/4 3.26 14.73 9.90 2669 600,049 3009 676,517 3332 749,161 2038 458,127 2297 516,487 2544 571,930
15xK7-IWRC or 15xK7-EPIWRC 58 3.31 15.17 10.20 2749 618,037 3100 696,797 3432 771,618 2099 471,856 2366 531,965 2620 589,069
15xK7-IWRC or 15xK7-EPIWRC 59 3.36 15.70 10.55 2845 639,540 3207 721,039 3552 798,463 2172 488,267 2449 550,467 2711 609,557
15xK7-IWRC or 15xK7-EPIWRC 60 3.42 16.24 10.91 2942 661,411 3317 745,696 3673 825,767 2246 504,959 2532 569,285 2804 630,395
15xK7-IWRC or 15xK7-EPIWRC 60.33 2 3/8 3.44 16.41 11.03 2974 668,598 3353 753,799 3713 834,739 2271 510,444 2560 575,469 2835 637,242
15xK7-IWRC or 15xK7-EPIWRC 61 3.48 16.78 11.28 3041 683,650 3429 770,767 3797 853,529 2322 521,931 2617 588,419 2898 651,583
15xK7-IWRC or 15xK7-EPIWRC 62 3.53 17.34 11.65 3142 706,255 3542 796,253 3922 881,751 2398 539,184 2704 607,870 2994 673,121
15xK7-IWRC or 15xK7-EPIWRC 63 3.59 17.90 12.03 3244 729,229 3657 822,153 4050 910,431 2476 556,717 2792 627,637 3092 695,010
15xK7-IWRC or 15xK7-EPIWRC 63.5 2 1/2 3.62 18.19 12.22 3295 740,853 3715 835,258 4114 924,943 2516 565,589 2836 637,639 3141 706,086
15xK7-IWRC or 15xK7-EPIWRC 64 3.65 18.47 12.41 3348 752,570 3774 848,467 4179 939,570 2556 574,531 2881 647,720 3190 717,249
15xK7-IWRC or 15xK7-EPIWRC 65 3.71 19.06 12.80 3453 776,279 3893 875,196 4311 969,168 2636 592,626 2972 668,119 3291 739,838
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
