EVOLUTION Q9 XT

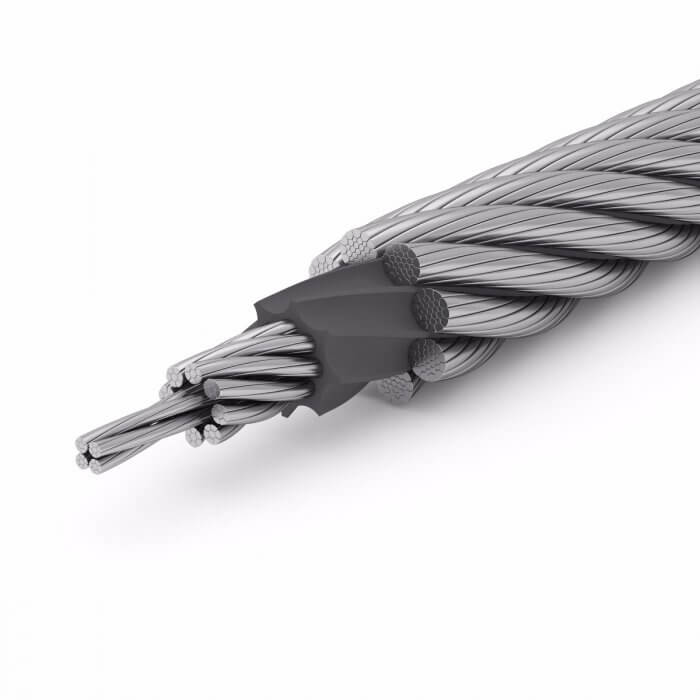

Thanks to its radially elastic 4-strand core, this steel wire rope copes brilliantly with external influences such as shock loads, vibrations, and twisting.

Specifications

Ordinary lay, right or left-lay
8 x K31WS - EPIWRC, RCN 11
Use without swivel

✔ SUPERFILL®
✔ PLASTFILL®
✔ Radially elastic core

Cranes in steel mills have primarily one thing in common: unscheduled downtimes of the cranes entail huge costs, and cases where backup cranes are available are rare. EVOLUTION Q9 XT is extremely reliable and guarantees long lifetimes, thanks to this rope construction's excellent performance under reversed bending cycles. And that even in the case of twisting caused by the reeving system. The PLASTFILL® insert ensures permanent lubrication of the core and exceptional longevity. Used on request, the special Pro Active rope lubrication with heat-resistant grease provides permanent lubrication even in high temperature environments.

Benefits of EVOLUTION Q9 XT:

  • High resistance to external influences such as twisting, fleet angles, and small d/D ratios
  • Highest cost-effectiveness thanks to this rope construction's excellent performance under reversed bending cycles and the radially elastic 4-strand core
  • Long lifetime in complex reeving systems with many bends and large fleet angles causing twisting in the system
  • Safety, reliability, and added resistance to internal corrosion, even at high operating temperatures, due to the use of galvanized high-quality wires and the permanent lubrication of the core provided by the PLASTFILL® insert
  • High resistance to mechanical wear and damage
  • High flexibility of the rope construction results in excellent longevity - especially in single-layer spooling systems
Diameter
[mm]
Diameter
[inch]
Weight
[kg/m]
Weight
[lbs/ft]
Minimum breaking force at a tensile strength of 1770 N/mm²
[kN]
Minimum breaking force at a tensile strength of 1770 N/mm²
[lbs]
Minimum breaking force at a tensile strength of 1960 N/mm²
[kN]
Minimum breaking force at a tensile strength of 1960 N/mm²
[lbs]
32 1 1/4 4.70 3.15 772 173,579 855 192,212
34 5.63 3.78 939 211,137 1,040 233,801
36 6.08 4.08 964 216,821 1,068 240,096
38 1 1/2 6.56 4.40 1,063 238,952 1,177 264,602
40 7.27 4.88 1,178 264,767 1,304 293,188
42 8.02 5.38 1,298 291,906 1,438 323,240
44 1 3/4 8.95 6.01 1,453 326,653 1,609 361,718
48 10.47 7.03 1,696 381,264 1,878 422,191
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
