8MINE

Endurance ist everything

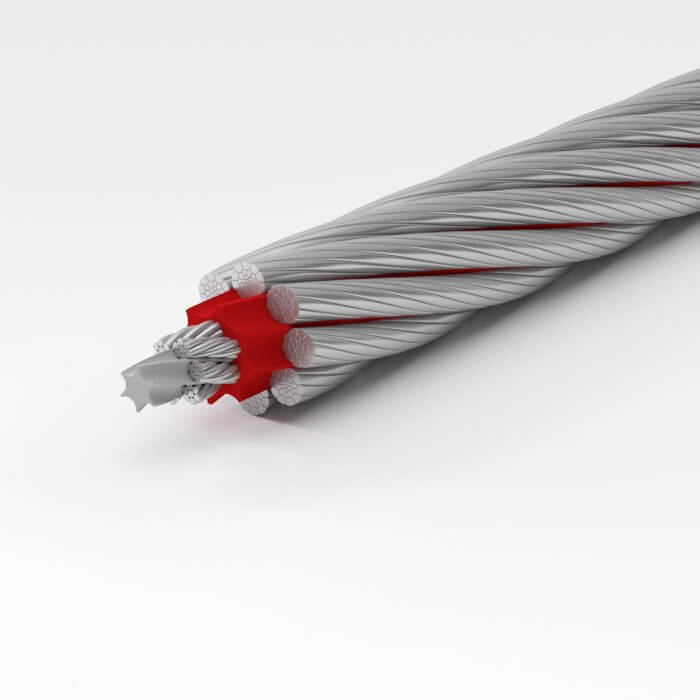

An 8-strand rope designed to replace conventional triangular strand ropes without changing existing hoisting performance parameters (custom fit).

Specifications

  • Lang lay or ordinary lay, right or left lay
  • 20 – 30 mm: 8xK19S -EPIWRC
  • 31 – 48 mm: 8xK26WS-EPIWRC
  • 49 – 59 mm: 8xK31WS-EPIWRC
  • 60 – 65 mm: 8xK36WS-EPIWRC
  • Conformity: EN 12385-6 (other standards available upon request)
  • Use without rope swivel
  • Rope finish: bright, galvanized class B, ZnAl

✔ SUPERFILL®
✔ PLASTFILL®

An 8-strand rope designed to replace conventional triangular strand ropes without changing existing hoisting performance parameters (custom fit). Compacted outer strands with Teufelberger-Redaelli SUPERFILL® compaction technology and our unique core ensure good resistance against drum crushing and the best-in-class weight to breaking strength ratio.

Benefits

  • Non-rotation resistant rope
    (builds up significantly less torque than triangular strand ropes)
  • Good breaking force
  • Good resistance to wear and drum crushing
  • High flexibility and bending fatigue performance
  • Low rope elongation
  • Good radial stability
  • Good shock resistance

All technical data and information for the perfect rope selection

Hoist ropes, balance ropes, shaft sinking ropes and guide ropes. TEUFELBERGER has published a new mining catalog with 20 high-performance steel wire ropes that gives you an overview of all relevant rope data, provides comprehensive rope know-how and helps you select the right rope.

Construction Diameter
[mm]
Diameter
[inch]
Außendurchmesser
[mm]
Weight
[kg/m]
Weight
[lbf/ft]
Calculated (= min. aggregated) breaking force at rope grade 1570 N/mm²
[kN]
Berechnete (=min. aggregierte) Bruchkraft bei Seilneigung 1570 N/mm²
[lbf]
Calculated (= min. aggregated) breaking force at rope grade 1770 N/mm²
[kN]
Calculated (= min. aggregated) breaking force at rope grade 1770 N/mm²
[lbf]
Calculated (= min. aggregated) breaking force at rope grade 1960 N/mm²
[kN]
Calculated (= min. aggregated) breaking force at rope grade 1960 N/mm²
[lbf]
Minimum breaking force at rope grade 1570 N/mm²
[kN]
Minimum breaking force at rope grade 1570 N/mm²
[lbf]
Minimum breaking force at rope grade 1770 N/mm²
[kN]
Minimum breaking force at rope grade 1770 N/mm²
[lbf]
Minimum breaking force at rope grade 1960 N/mm²
[kN]
Minimum breaking force at rope grade 1960 N/mm²
[lbf]
8xK19S-EPIWRC 20 1.36 1.68 1.13 300 67,524 339 76,155 375 84,354 252 56,550 284 63,754 314 70,598
8xK19S-EPIWRC 21 1.43 1.85 1.24 331 74,469 374 83,984 414 93,023 277 62,346 313 70,289 346 77,834
8xK19S-EPIWRC 22 1.50 2.03 1.36 364 81,752 410 92,195 454 102,115 304 68,426 343 77,142 380 85,423
8xK19S-EPIWRC 22.23 7/8 1.51 2.07 1.39 371 83,437 419 94,095 464 104,219 311 69,832 350 78,728 388 87,179
8xK19S-EPIWRC 23 1.57 2.22 1.49 398 89,374 448 100,787 497 111,630 333 74,787 375 84,315 415 93,365
8xK19S-EPIWRC 24 1.63 2.42 1.62 433 97,334 488 109,762 541 121,568 362 81,432 408 91,806 452 101,660
8xK19S-EPIWRC 25 1.70 2.62 1.76 470 105,633 530 119,118 587 131,929 393 88,360 443 99,616 491 110,309
8xK19S-EPIWRC 25.4 1 1.73 2.71 1.82 485 109,048 547 122,968 606 136,192 406 91,210 457 102,829 507 113,867
8xK19S-EPIWRC 26 1.77 2.84 1.91 508 114,271 573 128,857 635 142,713 425 95,570 479 107,744 531 119,310
8xK19S-EPIWRC 27 1.84 3.06 2.05 548 123,248 618 138,977 685 153,920 458 103,063 517 116,192 572 128,664
8xK19S-EPIWRC 28 1.91 3.29 2.21 590 132,564 665 149,479 736 165,549 493 110,838 556 124,958 616 138,371
8xK19S-EPIWRC 28.58 1 1/8 1.95 3.42 2.30 614 138,073 693 155,691 767 172,428 513 115,437 579 130,143 641 144,113
8xK19S-EPIWRC 29 1.97 3.53 2.37 633 142,218 713 160,364 790 177,602 529 118,897 596 134,043 660 148,431
8xK19S-EPIWRC 30 2.04 3.78 2.54 677 152,211 763 171,630 846 190,077 566 127,238 638 143,446 707 158,845
8xK26WS-EPIWRC 31 1.97 4.08 2.74 733 164,732 826 185,746 915 205,709 610 137,194 688 154,670 762 171,273
8xK26WS-EPIWRC 31.75 1 1⁄4 2.02 4.28 2.88 769 172,811 867 194,854 960 215,794 640 143,912 722 162,245 799 179,661
8xK26WS-EPIWRC 32 2.04 4.35 2.92 781 175,547 880 197,938 975 219,209 650 146,188 733 164,810 812 182,502
8xK26WS-EPIWRC 33 2.10 4.63 3.11 831 186,704 936 210,516 1037 233,138 692 155,467 780 175,272 863 194,086
8xK26WS-EPIWRC 34 2.16 4.91 3.30 882 198,205 994 223,482 1101 247,496 734 165,032 828 186,055 916 206,027
8xK26WS-EPIWRC 35 1 3/8 2.23 5.21 3.50 934 210,049 1053 236,835 1167 262,282 778 174,883 877 197,161 971 218,325
8xK26WS-EPIWRC 36 2.29 5.51 3.70 989 222,236 1115 250,575 1234 277,497 823 185,019 928 208,588 1027 230,979
8xK26WS-EPIWRC 37 2.35 5.82 3.91 1044 234,766 1177 264,702 1304 293,140 869 195,440 980 220,337 1085 243,989
8xK26WS-EPIWRC 38 1 1/2 2.42 6.14 4.12 1102 247,640 1242 279,215 1375 309,212 917 206,147 1034 232,408 1145 257,356
8xK26WS-EPIWRC 39 2.48 6.47 4.34 1160 260,857 1308 294,116 1449 325,712 966 217,140 1089 244,801 1206 271,079
8xK26WS-EPIWRC 40 2.54 6.80 4.57 1221 274,418 1376 309,404 1524 342,641 1016 228,418 1145 257,516 1268 285,159
8xK26WS-EPIWRC 41 2.61 7.15 4.80 1283 288,322 1446 325,079 1601 359,999 1067 239,982 1203 270,553 1333 299,595
8xK26WS-EPIWRC 41.28 1 5⁄8 2.63 7.24 4.87 1300 292,205 1466 329,458 1623 364,847 1082 243,212 1220 274,194 1351 303,627
8xK26WS-EPIWRC 42 2.67 7.50 5.04 1346 302,569 1517 341,141 1680 377,785 1120 251,831 1263 283,911 1398 314,388
8xK26WS-EPIWRC 43 2.74 7.86 5.28 1411 317,159 1591 357,590 1761 396,000 1174 263,966 1324 297,592 1466 329,537
8xK26WS-EPIWRC 44 2.80 8.23 5.53 1477 332,093 1666 374,426 1844 414,643 1229 276,386 1386 311,594 1535 345,042
8xK26WS-EPIWRC 44.45 1 3⁄4 2.83 8.40 5.64 1508 338,925 1700 382,129 1882 423,172 1255 282,068 1415 318,000 1566 352,136
8xK26WS-EPIWRC 45 2.86 8.61 5.78 1545 347,370 1742 391,649 1929 433,715 1286 289,092 1450 325,918 1605 360,904
8xK26WS-EPIWRC 46 2.93 8.99 6.04 1615 362,990 1820 409,260 2016 453,216 1344 302,083 1515 340,565 1678 377,122
8xK26WS-EPIWRC 47 2.99 9.39 6.31 1686 378,954 1901 427,257 2105 473,145 1403 315,360 1581 355,533 1751 393,697
8xK26WS-EPIWRC 47.63 1 7⁄8 3.03 9.64 6.48 1731 389,105 1951 438,702 2161 485,818 1440 323,803 1624 365,051 1798 404,238
8xK26WS-EPIWRC 48 3.05 9.79 6.58 1758 395,261 1982 445,641 2195 493,502 1463 328,922 1650 370,823 1827 410,629
8xK31WS-EPIWRC 49 2.70 10.33 6.94 1855 416,996 2091 470,145 2316 520,637 1540 346,098 1736 390,186 1922 432,071
8xK31WS-EPIWRC 50 2.76 10.76 7.23 1931 434,199 2178 489,540 2411 542,113 1603 360,368 1807 406,275 2001 449,886
8xK31WS-EPIWRC 50.8 2 2.80 11.10 7.46 1994 448,212 2248 505,338 2489 559,607 1655 371,992 1865 419,380 2066 464,398
8xK31WS-EPIWRC 51 2.81 11.19 7.52 2009 451,750 2266 509,326 2509 564,024 1668 374,927 1880 422,688 2082 468,062
8xK31WS-EPIWRC 52 2.87 11.64 7.82 2089 469,648 2355 529,504 2608 586,368 1734 389,774 1955 439,427 2164 486,597
8xK31WS-EPIWRC 53 2.92 12.09 8.12 2170 487,894 2447 550,075 2710 609,146 1801 404,910 2031 456,491 2249 505,492
8xK31WS-EPIWRC 54 2 1⁄8 2.98 12.55 8.43 2253 506,487 2540 571,036 2813 632,358 1870 420,333 2108 473,879 2334 524,748
8xK31WS-EPIWRC 55 3.04 13.02 8.75 2337 525,428 2635 592,390 2918 656,004 1940 436,046 2187 491,593 2421 544,363
8xK31WS-EPIWRC 56 3.09 13.49 9.07 2423 544,716 2732 614,136 3025 680,084 2011 452,046 2267 509,631 2510 564,338
8xK31WS-EPIWRC 57 3.15 13.98 9.39 2510 564,352 2830 636,273 3134 704,598 2083 468,335 2349 527,995 2601 584,672
8xK31WS-EPIWRC 57.15 2 1⁄4 3.15 14.05 9.44 2524 567,328 2845 639,628 3151 708,312 2094 470,803 2361 530,778 2614 587,754
8xK31WS-EPIWRC 58 3.20 14.48 9.73 2599 584,336 2930 658,802 3245 729,545 2157 484,911 2432 546,684 2693 605,367
8xK31WS-EPIWRC 59 3.26 14.98 10.07 2690 604,667 3032 681,723 3358 754,927 2232 501,777 2516 565,697 2786 626,422
8xK36WS-EPIWRC 60 2.92 15.62 10.50 2805 630,565 3162 710,920 3502 787,258 2331 523,920 2627 590,661 2909 654,066
8xK36WS-EPIWRC 60.33 2 3/8 2.94 15.79 10.61 2835 637,417 3197 718,645 3540 795,812 2356 529,611 2656 597,077 2941 661,171
8xK36WS-EPIWRC 61 2.97 16.15 10.85 2899 651,766 3269 734,823 3620 813,726 2409 541,529 2716 610,514 3007 676,050
8xK36WS-EPIWRC 62 3.02 16.68 11.21 2995 673,318 3377 759,120 3739 840,632 2488 559,430 2805 630,695 3107 698,397
8xK36WS-EPIWRC 63 3.07 17.22 11.57 3092 695,221 3487 783,813 3861 867,975 2569 577,622 2897 651,204 3208 721,107
8xK36WS-EPIWRC 63.5 2 1⁄2 3.09 17.50 11.76 3142 706,303 3542 796,307 3922 881,810 2610 586,827 2943 661,582 3259 732,599
8xK36WS-EPIWRC 64 3.12 17.77 11.94 3191 717,474 3598 808,900 3985 895,755 2652 596,104 2989 672,041 3310 744,181
8xK36WS-EPIWRC 65 3.17 18.33 12.32 3292 740,077 3712 834,383 4110 923,973 2735 614,878 3084 693,207 3415 767,619
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
