7MINE® HD

When breaking force matters most

The proven 7-strand design is extremely resistant to negative external influences.

Specifications

  • Lang lay or ordinary lay, right or left lay
  • 19 – 48 mm: 7xK19S -EPIWRC(K)
  • 49 – 55 mm: 7xK26WS-EPIWRC(K)
  • 56 – 59 mm: 7xK31WS-EPIWRC(K)
  • 60 – 65 mm: 7xK36WS-EPIWRC(K)
  • Conformity: EN 12385-6 (other standards available upon request)
  • Use without rope swivel
  • Rope finish: bright, galvanized class B, ZnAl

✔ SUPERFILL®
✔ PLASTFILL®

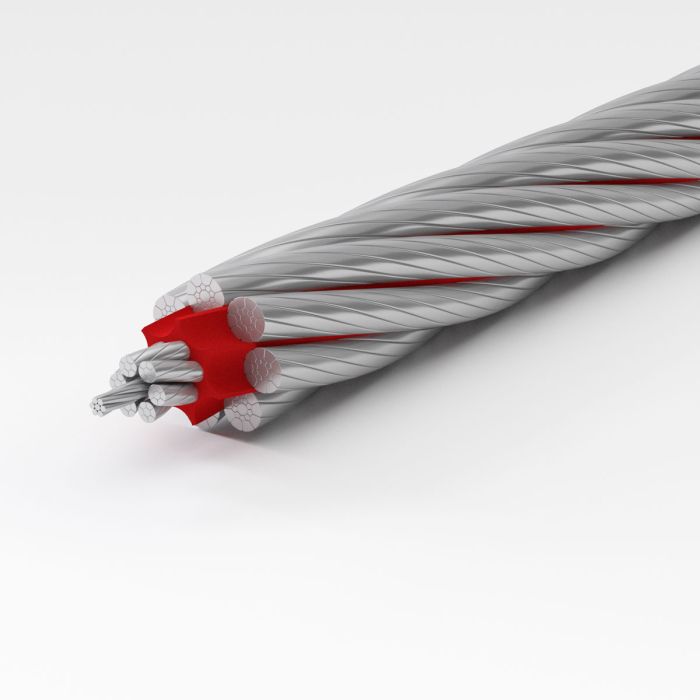

The proven 7-strand design is extremely resistant to negative external influences. All strands are compacted using Teufelberger-Redaelli SUPERFILL® compaction technology. With its PLASTFILL® insert, the rope is extremely stable against
lateral pressure.

Benefits

  • Non-rotation resistant rope
  • High breaking force
  • High resistance to wear and drum crushing
  • High flexibility and bending fatigue performance
  • Very low rope elongation
  • High radial stability
  • Good shock resistance

All technical data and information for the perfect rope selection

Hoist ropes, balance ropes, shaft sinking ropes and guide ropes. TEUFELBERGER has published a new mining catalog with 20 high-performance steel wire ropes that gives you an overview of all relevant rope data, provides comprehensive rope know-how and helps you select the right rope.

Construction Diameter
[mm]
Diameter
[inch]
Außendurchmesser
[mm]
Weight
[kg/m]
Weight
[lbf/ft]
Calculated (= min. aggregated) breaking force at rope grade 1570 N/mm²
[kN]
Berechnete (=min. aggregierte) Bruchkraft bei Seilneigung 1570 N/mm²
[lbf]
Calculated (= min. aggregated) breaking force at rope grade 1770 N/mm²
[kN]
Calculated (= min. aggregated) breaking force at rope grade 1770 N/mm²
[lbf]
Calculated (= min. aggregated) breaking force at rope grade 1960 N/mm²
[kN]
Calculated (= min. aggregated) breaking force at rope grade 1960 N/mm²
[lbf]
Minimum breaking force at rope grade 1570 N/mm²
[kN]
Minimum breaking force at rope grade 1570 N/mm²
[lbf]
Minimum breaking force at rope grade 1770 N/mm²
[kN]
Minimum breaking force at rope grade 1770 N/mm²
[lbf]
Minimum breaking force at rope grade 1960 N/mm²
[kN]
Minimum breaking force at rope grade 1960 N/mm²
[lbf]
7xK19S-EPIWRC(K) 19 1.44 1.70 1.14 312 70,125 352 79,087 390 87,601 243 54,639 274 61,599 303 68,212
7xK19S-EPIWRC(K) 19.05 3/4 1.45 1.71 1.15 314 70,496 354 79,505 392 88,064 244 54,927 275 61,924 305 68,571
7xK19S-EPIWRC(K) 20 1.52 1.89 1.27 346 77,726 390 87,656 432 97,089 269 60,542 304 68,254 336 75,581
7xK19S-EPIWRC(K) 21 1.59 2.08 1.40 381 85,716 430 96,663 476 107,064 297 66,747 335 75,250 371 83,328
7xK19S-EPIWRC(K) 22 1.67 2.28 1.53 419 94,095 472 106,110 523 117,525 326 73,256 367 82,588 407 91,453
7xK19S-EPIWRC(K) 22.23 7/8 1.69 2.33 1.56 427 96,034 482 108,297 534 119,946 333 74,762 375 84,286 415 93,333
7xK19S-EPIWRC(K) 23 1.75 2.49 1.68 458 102,865 516 115,997 571 128,473 356 80,067 402 90,266 445 99,956
7xK19S-EPIWRC(K) 24 1.82 2.71 1.82 498 112,024 562 126,323 622 139,907 388 87,180 437 98,286 484 108,837
7xK19S-EPIWRC(K) 25 1.90 2.95 1.98 541 121,573 610 137,088 675 151,828 421 94,597 474 106,647 525 118,095
7xK19S-EPIWRC(K) 25.4 1 1.93 3.04 2.04 558 125,501 630 141,517 697 156,733 434 97,648 490 110,087 542 121,904
7xK19S-EPIWRC(K) 26 1.97 3.19 2.14 585 131,511 660 148,293 731 164,236 455 102,316 513 115,350 568 127,732
7xK19S-EPIWRC(K) 27 2.05 3.44 2.31 631 141,840 711 159,937 788 177,130 491 110,338 553 124,393 613 137,746
7xK19S-EPIWRC(K) 28 2.13 3.70 2.48 679 152,558 765 172,021 847 190,510 528 118,662 595 133,778 659 148,139
7xK19S-EPIWRC(K) 28.58 1 1⁄8 2.17 3.85 2.59 707 158,897 797 179,168 883 198,425 550 123,586 620 139,329 686 154,285
7xK19S-EPIWRC(K) 29 2.20 3.96 2.66 728 163,666 821 184,544 909 204,378 566 127,289 638 143,504 707 158,909
7xK19S-EPIWRC(K) 30 2.28 4.24 2.85 779 175,164 879 197,506 973 218,731 606 136,219 683 153,572 756 170,057
7xK19S-EPIWRC(K) 31 2.35 4.53 3.04 832 187,051 938 210,908 1039 233,572 647 145,452 729 163,981 808 181,583
7xK19S-EPIWRC(K) 31.75 1 1⁄4 2.41 4.75 3.19 873 196,222 984 221,248 1090 245,021 679 152,575 765 172,011 847 190,476
7xK19S-EPIWRC(K) 32 2.43 4.83 3.24 887 199,328 1000 224,749 1107 248,899 689 154,987 777 174,731 861 193,487
7xK19S-EPIWRC(K) 33 2.50 5.13 3.45 943 211,995 1063 239,030 1177 264,712 733 164,825 827 185,822 915 205,769
7xK19S-EPIWRC(K) 34 2.58 5.45 3.66 1001 225,052 1129 253,750 1250 281,012 778 174,966 877 197,255 972 218,429
7xK19S-EPIWRC(K) 35 1 3⁄8 2.66 5.77 3.88 1061 238,498 1196 268,909 1325 297,799 825 185,409 930 209,028 1030 231,467
7xK19S-EPIWRC(K) 36 2.73 6.11 4.10 1122 252,335 1266 284,508 1402 315,072 873 196,156 984 221,144 1089 244,882
7xK19S-EPIWRC(K) 37 2.81 6.45 4.34 1186 266,560 1337 300,546 1481 332,832 922 207,205 1039 233,600 1151 258,676
7xK19S-EPIWRC(K) 38 1 1⁄2 2.88 6.81 4.57 1251 281,176 1410 317,023 1562 351,078 972 218,556 1096 246,398 1214 272,847
7xK19S-EPIWRC(K) 39 2.96 7.17 4.82 1317 296,182 1485 333,940 1645 369,811 1024 230,210 1154 259,537 1278 287,396
7xK19S-EPIWRC(K) 40 3.04 7.54 5.07 1386 311,577 1563 351,297 1730 389,031 1077 242,167 1214 273,017 1345 302,324
7xK19S-EPIWRC(K) 41 3.11 7.92 5.32 1456 327,362 1642 369,093 1818 408,737 1132 254,427 1276 286,838 1413 317,629
7xK19S-EPIWRC(K) 41.28 1 5⁄8 3.13 8.03 5.40 1476 331,771 1664 374,063 1843 414,241 1147 257,852 1293 290,699 1432 321,904
7xK19S-EPIWRC(K) 42 3.19 8.31 5.59 1528 343,537 1723 387,328 1908 428,929 1188 266,990 1339 301,001 1483 333,312
7xK19S-EPIWRC(K) 43 3.26 8.71 5.86 1602 360,101 1806 406,002 2000 449,609 1245 279,855 1403 315,505 1554 349,373
7xK19S-EPIWRC(K) 44 3.34 9.12 6.13 1677 377,055 1891 425,116 2094 470,774 1303 293,023 1469 330,350 1627 365,812
7xK19S-EPIWRC(K) 44.45 1 3⁄4 3.37 9.31 6.26 1712 384,812 1930 433,861 2137 480,458 1330 299,047 1500 337,142 1661 373,332
7xK19S-EPIWRC(K) 45 3.42 9.54 6.41 1754 394,399 1978 444,670 2190 492,427 1363 306,493 1537 345,537 1702 382,628
7xK19S-EPIWRC(K) 46 3.49 9.97 6.70 1833 412,133 2067 464,663 2289 514,566 1425 320,266 1606 361,065 1779 399,823
7xK19S-EPIWRC(K) 47 3.57 10.41 7.00 1914 430,256 2158 485,095 2390 537,191 1487 334,342 1677 376,934 1857 417,396
7xK19S-EPIWRC(K) 47.63 1 7⁄8 3.61 10.69 7.18 1965 441,781 2216 498,088 2454 551,579 1527 343,294 1722 387,025 1906 428,570
7xK19S-EPIWRC(K) 48 3.64 10.86 7.30 1996 448,770 2251 505,966 2492 560,303 1551 348,721 1749 393,144 1937 435,346
7xK26WS-EPIWRC(K) 49 3.48 10.92 7.34 2006 451,033 2262 508,518 2505 563,129 1616 363,403 1822 409,696 2018 453,674
7xK26WS-EPIWRC(K) 50 3.55 11.37 7.64 2089 469,640 2355 529,495 2608 586,358 1683 378,387 1898 426,589 2101 472,381
7xK26WS-EPIWRC(K) 50.8 2 3.61 11.74 7.89 2156 484,796 2431 546,582 2692 605,279 1737 390,592 1959 440,349 2169 487,618
7xK26WS-EPIWRC(K) 51 3.62 11.83 7.95 2174 488,622 2451 550,896 2714 610,056 1751 393,673 1974 443,823 2186 491,465
7xK26WS-EPIWRC(K) 52 3.69 12.30 8.27 2260 507,981 2548 572,720 2821 634,223 1820 409,263 2052 461,398 2273 510,927
7xK26WS-EPIWRC(K) 53 3.77 12.78 8.59 2347 527,715 2647 594,969 2931 658,859 1891 425,155 2132 479,315 2361 530,767
7xK26WS-EPIWRC(K) 54 2 1⁄8 3.84 13.27 8.92 2437 547,825 2747 617,641 3042 683,965 1963 441,350 2213 497,573 2451 550,985
7xK26WS-EPIWRC(K) 55 3.91 13.76 9.25 2528 568,311 2850 640,736 3156 709,540 2037 457,848 2296 516,172 2543 571,581
7xK31WS-EPIWRC(K) 56 3.43 14.50 9.74 2663 598,736 3003 675,037 3325 747,522 2111 474,648 2380 535,113 2636 592,554
7xK31WS-EPIWRC(K) 57 3.49 15.02 10.09 2759 620,318 3111 699,369 3445 774,466 2187 491,751 2466 554,395 2731 613,906
7xK31WS-EPIWRC(K) 57.15 2 1⁄4 3.50 15.10 10.15 2774 623,589 3127 703,055 3463 778,549 2199 494,343 2479 557,316 2745 617,141
7xK31WS-EPIWRC(K) 58 3.55 15.55 10.45 2857 642,283 3221 724,131 3567 801,887 2265 509,157 2553 574,018 2827 635,636
7xK31WS-EPIWRC(K) 59 3.61 16.10 10.82 2956 664,629 3333 749,324 3691 829,784 2344 526,866 2642 593,982 2926 657,743
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
