6MINE

Compound core and high flexibility

The proven 6-strand rope which can replace conventional triangular strand ropes.

Specifications

  • Lang lay or ordinary lay, right and left lay
  • 21 – 23 mm: 6xK19S -EPIWRC (compound)
  • 24 – 32 mm: 6xK26WS-EPIWRC (compound)
  • 33 – 38 mm: 6xK31WS-EPIWRC (compound)
  • 39 – 65 mm: 6xK36WS-EPIWRC (compound)
  • Conformity: EN 12385-6 (other standards available upon request)
  • Use without rope swivel
  • Rope finish: bright, galvanized class B, ZnAl

✔ SUPERFILL®
✔ PLASTFILL®

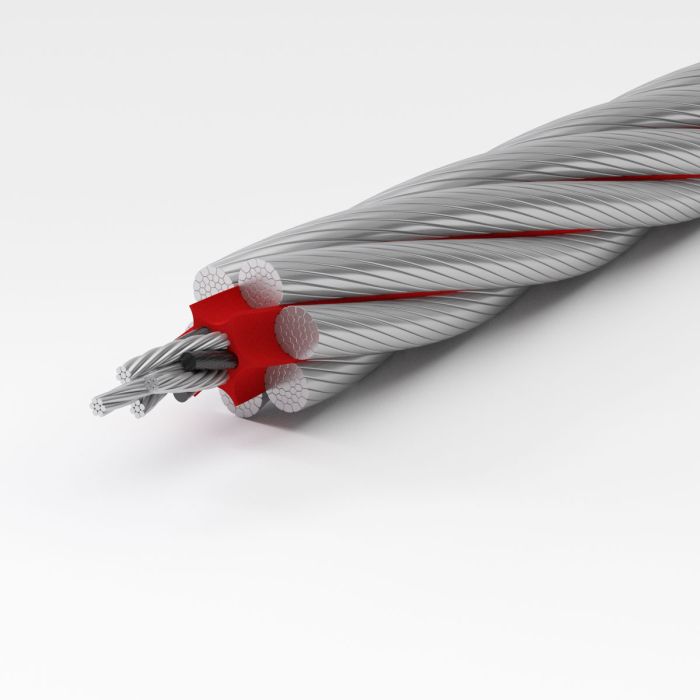

The proven 6-strand rope which can replace conventional triangular strand ropes. Mainly used on Koepe friction winders and single-layer drum winders. The rope features compacted outer strands with Teufelberger-Redaelli SUPERFILL® compaction technology and our unique compound core.

Benefits

  • Non-rotation resistant rope (builds up significantly less torque
    than triangular strand ropes)
  • Good breaking force
  • Medium resistance to wear and drum crushing
  • High flexibility and bending fatigue performance
  • Medium rope elongation
  • Good radial stability
  • Good shock resistance

All technical data and information for the perfect rope selection

Hoist ropes, balance ropes, shaft sinking ropes and guide ropes. TEUFELBERGER has published a new mining catalog with 20 high-performance steel wire ropes that gives you an overview of all relevant rope data, provides comprehensive rope know-how and helps you select the right rope.

Construction Diameter
[mm]
Diameter
[inch]
Außendurchmesser
[mm]
Weight
[kg/m]
Weight
[lbf/ft]
Calculated (= min. aggregated) breaking force at rope grade 1570 N/mm²
[kN]
Berechnete (=min. aggregierte) Bruchkraft bei Seilneigung 1570 N/mm²
[lbf]
Calculated (= min. aggregated) breaking force at rope grade 1770 N/mm²
[kN]
Calculated (= min. aggregated) breaking force at rope grade 1770 N/mm²
[lbf]
Calculated (= min. aggregated) breaking force at rope grade 1960 N/mm²
[kN]
Calculated (= min. aggregated) breaking force at rope grade 1960 N/mm²
[lbf]
Minimum breaking force at rope grade 1570 N/mm²
[kN]
Minimum breaking force at rope grade 1570 N/mm²
[lbf]
Minimum breaking force at rope grade 1770 N/mm²
[kN]
Minimum breaking force at rope grade 1770 N/mm²
[lbf]
Minimum breaking force at rope grade 1960 N/mm²
[kN]
Minimum breaking force at rope grade 1960 N/mm²
[lbf]
6xK19S-EPIWRC 21 1.78 1.96 1.31 356 80,092 402 90,324 445 100,043 261 58,679 294 66,154 326 73,255
6xK19S-EPIWRC 22 1.86 2.15 1.44 391 87,923 441 99,153 489 109,820 286 64,401 323 72,604 358 80,398
6xK19S-EPIWRC 22.23 7⁄8 1.88 2.19 1.47 399 89,736 450 101,196 499 112,083 292 65,725 330 74,097 365 82,051
6xK19S-EPIWRC 23 1.94 2.35 1.58 428 96,119 482 108,392 534 120,052 313 70,388 353 79,355 391 87,873
6xK26WS-EPIWRC 24 1.90 2.45 1.65 446 100,208 503 113,002 557 125,156 341 76,642 384 86,405 426 95,680
6xK26WS-EPIWRC 25 1.98 2.66 1.79 484 108,752 546 122,634 604 135,823 370 83,162 417 93,756 462 103,820
6xK26WS-EPIWRC 25.4 1 2.01 2.74 1.84 499 112,267 563 126,597 624 140,211 382 85,844 430 96,780 477 107,169
6xK26WS-EPIWRC 26 2.06 2.87 1.93 523 117,644 590 132,660 654 146,924 400 89,948 451 101,406 499 112,292
6xK26WS-EPIWRC 27 2.14 3.10 2.08 564 126,886 636 143,078 705 158,461 431 97,000 486 109,357 539 121,096
6xK26WS-EPIWRC 28 2.22 3.33 2.24 607 136,476 685 153,890 758 170,433 464 104,318 523 117,607 579 130,232
6xK26WS-EPIWRC 28.58 1 1/8 2.26 3.47 2.33 632 142,148 713 160,284 790 177,514 483 108,647 545 122,487 603 135,635
6xK26WS-EPIWRC 29 2.29 3.58 2.40 651 146,414 734 165,094 813 182,841 498 111,903 561 126,158 621 139,700
6xK26WS-EPIWRC 30 2.37 3.83 2.57 697 156,702 786 176,692 870 195,683 533 119,753 601 135,008 665 149,501
6xK26WS-EPIWRC 31 2.45 4.09 2.75 744 167,338 839 188,683 930 208,962 569 127,870 641 144,159 710 159,634
6xK26WS-EPIWRC 31.75 1 1/4 2.51 4.29 2.88 781 175,544 880 197,935 975 219,206 597 134,132 673 151,219 745 167,451
6xK26WS-EPIWRC 32 2.53 4.35 2.93 793 178,323 894 201,068 991 222,675 606 136,252 683 153,609 757 170,099
6xK31WS-EPIWRC 33 2.25 4.73 3.18 861 193,581 971 218,269 1075 241,723 645 144,901 727 163,360 805 180,896
6xK31WS-EPIWRC 34 2.32 5.02 3.37 914 205,504 1031 231,712 1141 256,609 684 153,816 771 173,411 854 192,025
6xK31WS-EPIWRC 35 1 3/8 2.39 5.32 3.57 969 217,784 1092 245,556 1210 271,939 725 162,997 817 183,761 905 203,487
6xK31WS-EPIWRC 36 2.45 5.63 3.78 1025 230,420 1156 259,801 1280 287,714 767 172,445 865 194,412 958 215,281
6xK31WS-EPIWRC 37 2.52 5.94 3.99 1083 243,411 1221 274,448 1352 303,932 810 182,158 913 205,363 1012 227,407
6xK31WS-EPIWRC 38 1 1⁄2 2.59 6.27 4.21 1142 256,759 1288 289,496 1426 320,595 855 192,137 964 216,613 1067 239,866
6xK36WS-EPIWRC 39 2.30 6.45 4.34 1175 264,138 1325 297,814 1467 329,807 900 202,383 1015 228,164 1124 252,656
6xK36WS-EPIWRC 40 2.36 6.79 4.56 1236 277,869 1394 313,294 1543 346,949 947 212,894 1068 240,015 1182 265,779
6xK36WS-EPIWRC 41 2.41 7.13 4.79 1299 291,947 1464 329,166 1621 364,525 995 223,672 1122 252,166 1242 279,234
6xK36WS-EPIWRC 41.28 1 5/8 2.43 7.23 4.86 1316 295,880 1484 333,600 1643 369,434 1008 226,683 1137 255,560 1259 282,993
6xK36WS-EPIWRC 42 2.47 7.48 5.03 1363 306,373 1537 345,430 1702 382,534 1044 234,716 1177 264,616 1303 293,021
6xK36WS-EPIWRC 43 2.53 7.84 5.27 1429 321,147 1611 362,086 1784 400,978 1094 246,026 1234 277,367 1366 307,141
6xK36WS-EPIWRC 44 2.59 8.21 5.52 1496 336,268 1686 379,134 1868 419,856 1146 257,602 1292 290,418 1431 321,593
6xK36WS-EPIWRC 44.45 1 3⁄4 2.62 8.38 5.63 1527 343,186 1721 386,933 1906 428,492 1169 262,898 1318 296,389 1460 328,204
6xK36WS-EPIWRC 45 2.65 8.59 5.77 1565 351,737 1764 396,573 1954 439,167 1199 269,445 1351 303,769 1496 336,377
6xK36WS-EPIWRC 46 2.71 8.98 6.03 1635 367,554 1843 414,404 2041 458,913 1252 281,553 1412 317,420 1564 351,493
6xK36WS-EPIWRC 47 2.77 9.37 6.30 1707 383,718 1924 432,628 2131 479,092 1307 293,927 1474 331,370 1632 366,941
6xK36WS-EPIWRC 47.63 1 ⁷⁄8 2.80 9.62 6.47 1753 393,997 1976 444,216 2188 491,925 1342 301,797 1513 340,242 1676 376,765
6xK36WS-EPIWRC 48 2.83 9.77 6.57 1780 400,230 2007 451,243 2223 499,706 1364 306,568 1537 345,621 1702 382,722
6xK36WS-EPIWRC 49 2.89 10.19 6.84 1855 417,089 2092 470,250 2316 520,753 1421 319,475 1602 360,172 1774 398,835
6xK36WS-EPIWRC 50 2.94 10.61 7.13 1932 434,296 2178 489,649 2412 542,234 1480 332,648 1668 375,023 1847 415,280
6xK36WS-EPIWRC 50.8 2 2.99 10.95 7.36 1994 448,312 2248 505,450 2490 559,732 1527 343,377 1722 387,120 1907 428,675
6xK36WS-EPIWRC 51 3.00 11.03 7.42 2010 451,851 2266 509,440 2509 564,150 1539 346,087 1736 390,174 1922 432,057
6xK36WS-EPIWRC 52 3.06 11.47 7.71 2090 469,753 2356 529,623 2609 586,499 1600 359,792 1804 405,625 1998 449,167
6xK36WS-EPIWRC 53 3.12 11.92 8.01 2171 488,003 2447 550,197 2710 609,282 1663 373,763 1874 421,376 2076 466,608
6xK36WS-EPIWRC 54 2 1⁄8 3.18 12.37 8.31 2253 506,600 2541 571,164 2813 632,500 1726 388,000 1946 437,427 2155 484,382
6xK36WS-EPIWRC 55 3.24 12.83 8.62 2338 525,545 2636 592,523 2919 656,151 1790 402,504 2019 453,778 2235 502,489
6xK36WS-EPIWRC 56 3.30 13.30 8.94 2424 544,838 2732 614,273 3026 680,236 1856 417,273 2093 470,429 2317 520,927
6xK36WS-EPIWRC 57 3.36 13.78 9.26 2511 564,479 2831 636,415 3135 704,755 1923 432,309 2168 487,380 2401 539,698
6xK36WS-EPIWRC 57.15 2 1⁄4 3.37 13.86 9.31 2524 567,455 2846 639,770 3151 708,470 1933 434,587 2179 489,949 2413 542,542
6xK36WS-EPIWRC 58 3.42 14.27 9.59 2600 584,467 2931 658,949 3246 729,708 1991 447,611 2245 504,631 2486 558,800
6xK36WS-EPIWRC 59 3.47 14.77 9.92 2690 604,802 3033 681,876 3359 755,095 2060 463,178 2323 522,182 2572 578,236
6xK36WS-EPIWRC 60 3.53 15.27 10.26 2782 625,485 3137 705,194 3474 780,916 2131 479,013 2402 540,033 2660 598,003
6xK36WS-EPIWRC 60.33 2 3⁄8 3.55 15.44 10.37 2813 632,282 3171 712,856 3511 789,402 2154 484,216 2428 545,899 2689 604,499
6xK36WS-EPIWRC 61 3.59 15.79 10.61 2876 646,516 3242 728,903 3590 807,171 2202 495,113 2483 558,184 2749 618,102
6xK36WS-EPIWRC 62 3.65 16.31 10.96 2971 667,895 3350 753,005 3709 833,860 2275 511,479 2565 576,635 2840 638,534
6xK36WS-EPIWRC 63 3.71 16.84 11.31 3068 689,621 3458 777,499 3830 860,983 2349 528,111 2648 595,387 2933 659,298
6xK36WS-EPIWRC 63.5 2 1⁄2 3.74 17.11 11.50 3116 700,614 3514 789,893 3891 874,708 2387 536,527 2691 604,875 2979 669,805
6xK36WS-EPIWRC 64 3.77 17.38 11.68 3166 711,694 3569 802,385 3952 888,540 2424 545,010 2733 614,438 3027 680,394
6xK36WS-EPIWRC 65 3.83 17.92 12.04 3266 734,116 3682 827,662 4077 916,531 2501 562,174 2819 633,789 3122 701,823
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
