12MINE 460(P)

Best strength to weight ratio

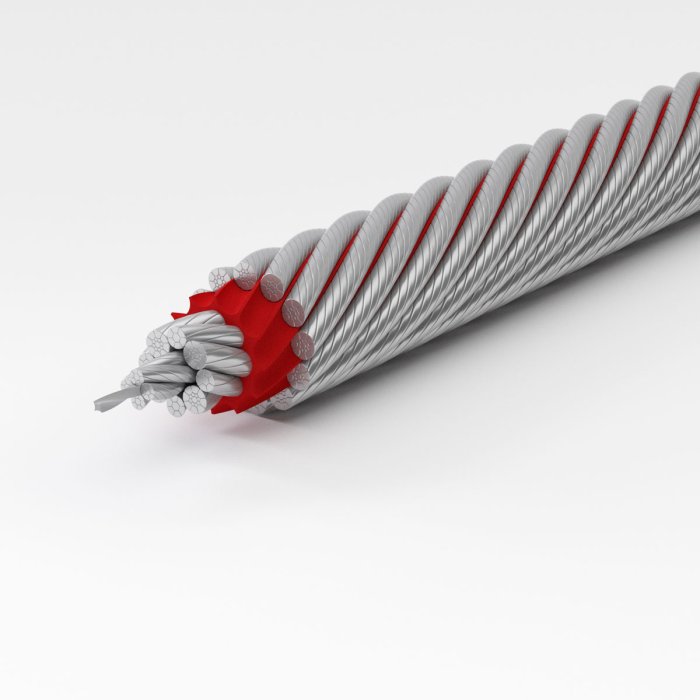

12-strand rotation resistant rope with optional PLASTFILL® insert between the steel core and the outer strands.

Specifications

  • Lang lay or ordinary lay, right and left lay
  • 19 – 65 mm: 12xK7-EPIWRC(K) (or IWRC(K))
  • Conformity: EN 12385-6 (other standards available upon request)
  • Use with or without rope swivel
  • Rope finish: bright, galvanized class B, ZnAl

✔ SUPERFILL®
✔ PLASTFILL®

12-strand rotation resistant rope with optional PLASTFILL® insert between the steel core and the outer strands. All strands are compacted using Teufelberger-Redaelli SUPERFILL® compaction technology, which significantly increases the rope's wear resistance and breaking force. Suitable for use with friction and drum winders.

Benefits

  • Rotation resistant
  • High breaking force
  • High resistance to wear and drum crushing
  • Good flexibility and bending fatigue performance
  • Low rope elongation
  • High radial stability
  • Improved shock resistance with PLASTFILL®

All technical data and information for the perfect rope selection

Hoist ropes, balance ropes, shaft sinking ropes and guide ropes. TEUFELBERGER has published a new mining catalog with 20 high-performance steel wire ropes that gives you an overview of all relevant rope data, provides comprehensive rope know-how and helps you select the right rope.

Construction Diameter
[mm]
Diameter
[inch]
Außendurchmesser
[mm]
Weight
[kg/m]
Weight
[lbf/ft]
Calculated (= min. aggregated) breaking force at rope grade 1570 N/mm²
[kN]
Berechnete (=min. aggregierte) Bruchkraft bei Seilneigung 1570 N/mm²
[lbf]
Calculated (= min. aggregated) breaking force at rope grade 1770 N/mm²
[kN]
Calculated (= min. aggregated) breaking force at rope grade 1770 N/mm²
[lbf]
Calculated (= min. aggregated) breaking force at rope grade 1960 N/mm²
[kN]
Calculated (= min. aggregated) breaking force at rope grade 1960 N/mm²
[lbf]
Minimum breaking force at rope grade 1570 N/mm²
[kN]
Minimum breaking force at rope grade 1570 N/mm²
[lbf]
Minimum breaking force at rope grade 1770 N/mm²
[kN]
Minimum breaking force at rope grade 1770 N/mm²
[lbf]
Minimum breaking force at rope grade 1960 N/mm²
[kN]
Minimum breaking force at rope grade 1960 N/mm²
[lbf]
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 19 1.30 1.63 1.09 298 66,923 336 75,477 372 83,603 242 54,439 273 61,374 302 67,962
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 19.05 3/4 1.30 1.64 1.10 299 67,277 338 75,876 374 84,045 243 54,726 274 61,697 304 68,320
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 20 1.37 1.80 1.21 330 74,177 372 83,655 412 92,659 268 60,320 302 68,004 335 75,304
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 21 1.44 1.99 1.34 364 81,804 410 92,253 455 102,180 296 66,503 334 74,975 369 83,023
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 22 1.51 2.18 1.47 399 89,802 450 101,270 499 112,165 325 72,987 366 82,285 405 91,118
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 22.23 7/8 1.52 2.23 1.50 408 91,653 460 103,357 509 114,476 331 74,488 374 83,977 414 92,991
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 23 1.57 2.38 1.60 437 98,172 492 110,707 545 122,615 355 79,773 400 89,936 443 99,590
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 24 1.64 2.60 1.74 476 106,914 536 120,563 594 133,529 386 86,861 436 97,926 482 108,438
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 25 1.71 2.82 1.89 516 116,029 582 130,838 645 144,907 419 94,250 473 106,257 523 117,663
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 25.4 1 1.74 2.91 1.95 533 119,778 601 135,065 665 149,588 433 97,290 488 109,684 540 121,458
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 26 1.78 3.05 2.05 558 125,515 630 141,533 697 156,750 453 101,941 511 114,927 566 127,264
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 27 1.85 3.29 2.21 602 135,373 679 152,647 752 169,057 489 109,933 551 123,938 610 137,242
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 28 1.92 3.53 2.37 648 145,603 730 164,180 809 181,828 526 118,227 593 133,288 657 147,596
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 28.58 1 1/8 1.96 3.68 2.47 675 151,654 761 171,002 842 189,382 548 123,133 617 138,819 684 153,720
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 29 1.99 3.79 2.55 695 156,206 783 176,133 868 195,064 564 126,823 636 142,979 704 158,327
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 30 2.05 4.06 2.73 744 167,180 839 188,506 929 208,765 604 135,720 681 153,009 754 169,434
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 31 2.12 4.33 2.91 794 178,526 895 201,297 992 222,930 645 144,919 727 163,380 805 180,918
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 31.75 1 1/4 2.17 4.54 3.05 833 187,280 939 211,166 1040 233,858 676 152,016 762 171,381 844 189,778
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 32 2.19 4.62 3.10 846 190,245 954 214,508 1057 237,559 687 154,419 774 174,091 858 192,778
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 33 2.26 4.91 3.30 900 202,335 1015 228,139 1124 252,653 730 164,221 824 185,141 912 205,015
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 34 2.33 5.21 3.50 955 214,797 1077 242,189 1193 268,211 775 174,325 874 196,532 968 217,629
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 35 1 3/8 2.40 5.52 3.71 1013 227,632 1142 256,658 1264 284,233 822 184,730 926 208,263 1026 230,619
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 36 2.46 5.84 3.93 1071 240,838 1208 271,547 1338 300,720 869 195,437 980 220,334 1085 243,985
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 37 2.53 6.17 4.15 1132 254,417 1276 286,855 1413 317,672 918 206,446 1035 232,744 1146 257,728
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 38 1 1/2 2.60 6.51 4.37 1194 268,367 1346 302,583 1491 335,087 969 217,756 1092 245,495 1209 271,848
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 39 2.67 6.86 4.61 1257 282,689 1418 318,729 1570 352,968 1020 229,367 1150 258,586 1274 286,344
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 40 2.74 7.21 4.85 1323 297,384 1491 335,296 1652 371,312 1073 241,280 1210 272,017 1340 301,216
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 41 2.81 7.58 5.09 1390 312,450 1567 352,282 1735 390,121 1128 253,495 1271 285,788 1408 316,465
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 41.28 1 5/8 2.83 7.68 5.16 1409 316,659 1588 357,026 1759 395,375 1143 256,907 1288 289,634 1427 320,725
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 42 2.88 7.95 5.34 1459 327,889 1644 369,687 1821 409,395 1183 266,012 1334 299,898 1477 332,091
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 43 2.94 8.33 5.60 1529 343,699 1724 387,511 1909 429,133 1240 278,830 1398 314,349 1548 348,093
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 44 3.01 8.73 5.86 1601 359,882 1805 405,755 1999 449,335 1299 291,949 1464 329,140 1621 364,472
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 44.45 1 3/4 3.04 8.91 5.98 1634 367,285 1842 414,102 2040 458,577 1325 297,951 1494 335,907 1655 371,965
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 45 3.08 9.13 6.13 1674 376,436 1888 424,418 2091 470,002 1358 305,370 1531 344,271 1696 381,227
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 46 3.15 9.54 6.41 1750 393,363 1973 443,501 2185 491,133 1419 319,093 1600 359,742 1772 398,359
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 47 3.22 9.96 6.69 1827 410,661 2060 463,003 2281 512,728 1482 333,118 1671 375,553 1850 415,867
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 47.63 1 7/8 3.26 10.22 6.87 1876 421,662 2115 475,405 2342 526,462 1521 342,036 1715 385,608 1899 427,001
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 48 3.29 10.39 6.98 1905 428,332 2148 482,925 2379 534,788 1546 347,444 1742 391,704 1929 433,751
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 49 3.35 10.82 7.27 1986 446,374 2239 503,266 2479 557,313 1611 362,071 1816 408,195 2011 452,013
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 50 3.42 11.27 7.57 2067 464,789 2331 524,026 2581 580,302 1677 377,001 1891 425,026 2094 470,650
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 50.8 2 3.48 11.63 7.82 2134 479,788 2406 540,936 2665 599,027 1731 389,161 1952 438,736 2161 485,832
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 51 3.49 11.72 7.88 2151 483,575 2425 545,206 2686 603,755 1745 392,231 1967 442,197 2178 489,665
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 52 3.56 12.19 8.19 2236 502,734 2521 566,805 2792 627,673 1814 407,764 2045 459,708 2264 509,055
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 53 3.63 12.66 8.51 2323 522,264 2619 588,824 2900 652,055 1884 423,598 2124 477,559 2352 528,823
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 54 2 1/8 3.70 13.14 8.83 2412 542,167 2719 611,262 3011 676,901 1956 439,733 2205 495,750 2442 548,967
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 55 3.77 13.64 9.16 2502 562,442 2821 634,119 3124 702,212 2029 456,171 2288 514,282 2533 569,487
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 56 3.83 14.14 9.50 2594 583,088 2924 657,396 3238 727,988 2104 472,910 2372 533,153 2626 590,384
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 57 3.90 14.65 9.84 2687 604,107 3030 681,092 3355 754,227 2179 489,950 2457 552,364 2721 611,657
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 57.15 2 1/4 3.91 14.72 9.89 2701 607,292 3046 684,682 3373 758,203 2191 492,532 2470 555,275 2735 614,881
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 58 3.97 15.16 10.19 2782 625,497 3137 705,207 3474 780,932 2257 507,292 2544 571,915 2817 633,307
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 59 4.04 15.69 10.54 2879 647,260 3246 729,742 3595 808,100 2335 524,936 2632 591,806 2915 655,334
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 60 4.11 16.23 10.90 2978 669,395 3357 754,697 3718 835,733 2415 542,881 2722 612,038 3015 677,737
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 60.33 2 3/8 4.13 16.40 11.02 3010 676,669 3394 762,897 3758 844,814 2441 548,778 2752 618,686 3047 685,099
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 61 4.18 16.77 11.27 3078 691,901 3470 780,070 3843 863,831 2496 561,128 2814 632,609 3116 700,516
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 62 4.25 17.33 11.64 3180 714,780 3585 805,864 3970 892,393 2579 579,676 2907 653,520 3219 723,672
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 63 4.31 17.89 12.02 3283 738,031 3701 832,076 4099 921,419 2662 598,526 3002 674,771 3324 747,205
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 63.5 2 1/2 4.35 18.18 12.21 3335 749,796 3760 845,340 4164 936,106 2705 608,064 3049 685,525 3377 759,112
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 64 4.38 18.46 12.41 3388 761,653 3820 858,708 4230 950,910 2748 617,678 3098 696,363 3430 771,114
12xK7-IWRC(K) or 12xK7-EPIWRC(K) 65 4.45 19.05 12.80 3495 785,648 3940 885,759 4363 980,865 2834 637,131 3195 718,294 3538 795,399
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
