PS610F
The robust rope featuring SUPERFILL® compaction technology and PLASTFILL® insert excels as dragline in gravel mining and scraper installations as well as on logging winches.
Specifications
Lang’s lay, right or left lay

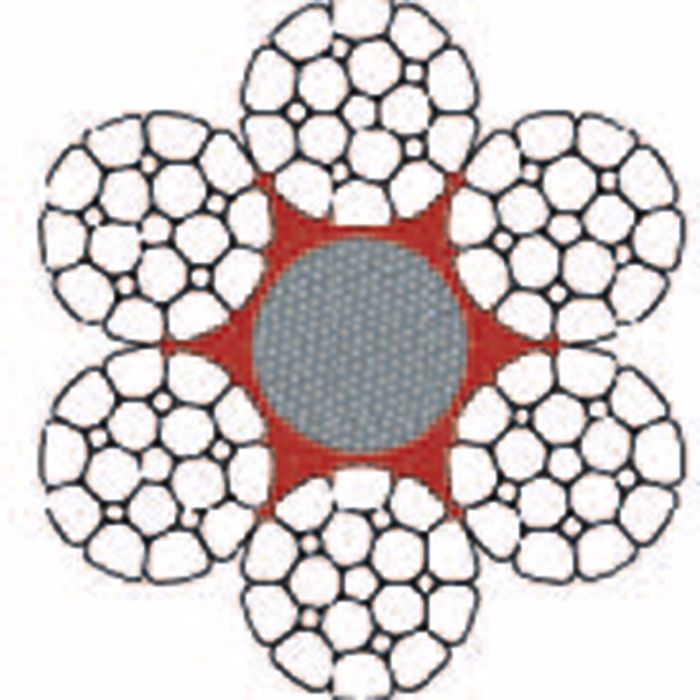

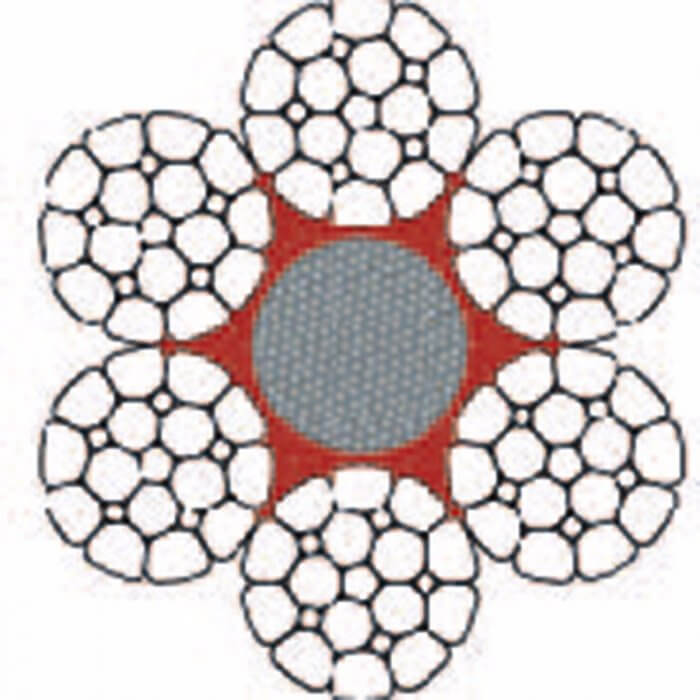

6 x K21F-SFC, RCN 03
Use without swivel
✔ Multilayer spooling
✔ PLASTFILL®
✔ SUPERFILL®
Cable dredgers in gravel mining demand maximum performance of steel wire ropes in terms of flexibility and resistance to shock loads. The 6-strand steel wire rope PS610F from TEUFELBERGER lives up to this requirement.
Benefits of PS610F
- Long service life due to very robust design with plastic-infused fiber core
- Extremely resistant to wear and shock due to the flexible plastic-infused fiber core, the thick outer wires and the high degree of compaction of the strands by means of SUPERFILL® compaction technology
- Very good handling properties in use due to flexibility and dimensional stability under lateral pressure
| Product name | Diameter [mm] | Diameter [inch] | Weight [kg/m] | Weight [lbs/ft] | Minimum breaking force at a tensile strength of 1960 N/mm² [kN] | Minimum breaking force at a tensile strength of 1960 N/mm² [lbs] |
|---|---|---|---|---|---|---|
| PS 610 F | 22 | 2.10 | 1.41 | 375 | 84,303 | |
| PS 610 F | 26 | 2.75 | 1.85 | 517 | 116,226 | |
| PS 610 F | 29 | 3.70 | 2.48 | 643 | 144,552 | |
| PS 610 F | 36 | 5.25 | 3.52 | 955 | 214,693 | |
| PS 610 F | 40 | 6.47 | 4.34 | 1,232 | 276,965 |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
