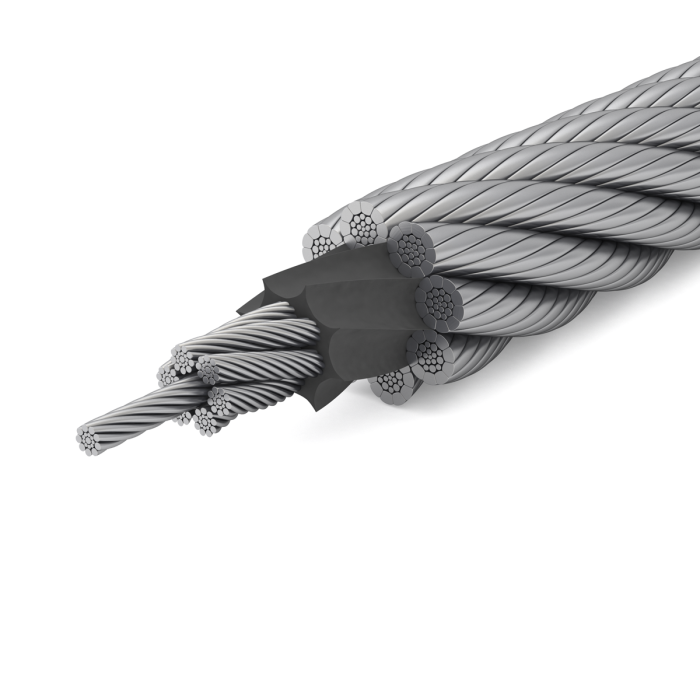

Keeport® 8KP

allrounder

The allrounder within the Teufelberger-Redaelli product range for port applications.

Specifications

— Ordinary lay configuration, right and left hand lay
— 16 – 60 mm: 8 x K26WS – EPIWRC, RCN 09
— Galvanized finish
— Intensive lubrication for maritime applications
— Use without rope swivel

✔ SUPERFILL®
✔ PLASTFILL®

The allrounder within the Teufelberger-Redaelli product range for port applications. Perfect performance because of high breaking forces, high wear resistance, and high crushing resistance. Keeport® guarantees consistent performance, and high stability and load capacity.

Benefits
&emps;— Reliable lifetime results: plastification reduces internal friction and internal wear of the rope components
&emps;— High stability against fleet angles: extremely balanced rope design
&emps;— Optimum balance between flexibility and resistance: ideal degree
of compaction
&emps;— Perfectly applicable on RTG and STS cranes: right mixture of bending fatigue and robustness

Construction Diameter
[mm]
Diameter
[inch]
Weight
[kg/m]
Weight
[lbf/ft]
Minimum breaking force at rope grade 1770 N/mm2
[kN]
Minimum breaking force at rope grade 1770 N/mm2
[lbs]
Minimum breaking force at rope grade 1960 N/mm2
[kN]
Minimum breaking force at rope grade 1960 N/mm2
[lbs]
8xK26WS-EPIWRC 16 5/8 1.18 0.79 204 45,763 225 50,675
8xK26WS-EPIWRC 20 1.84 1.23 318 71,504 352 79,180
8xK26WS-EPIWRC 22 2.23 1.50 385 86,520 426 95,808
8xK26WS-EPIWRC 22.23 7/8 2.27 1.53 393 88,299 435 97,778
8xK26WS-EPIWRC 24 2.65 1.78 458 102,966 507 114,019
8xK26WS-EPIWRC 25.40 1 2.97 2.00 513 115,329 568 127,709
8xK26WS-EPIWRC 26 3.11 2.09 538 120,842 595 133,814
8xK26WS-EPIWRC 28 3.61 2.42 623 140,149 690 155,193
8xK26WS-EPIWRC 28.58 1 1/8 3.75 2.52 649 145,964 719 161,632
8xK26WS-EPIWRC 30 4.14 2.78 716 160,885 792 178,155
8xK26WS-EPIWRC 31.75 1 1/4 4.63 3.11 802 180,202 888 199,546
8xK26WS-EPIWRC 32 4.71 3.17 814 183,051 902 202,701
8xK26WS-EPIWRC 34 5.31 3.57 919 206,648 1,018 228,830
8xK26WS-EPIWRC 36 5.96 4.00 1,031 231,674 1,141 256,543
8xK26WS-EPIWRC 38 1 1/2 6.64 4.46 1,148 258,131 1,271 285,840
8xK26WS-EPIWRC 40 7.36 4.94 1,272 286,018 1,409 316,720
8xK26WS-EPIWRC 42 8.12 5.45 1,403 315,334 1,553 349,184
8xK26WS-EPIWRC 44 8.90 5.98 1,539 346,081 1,705 383,231
8xK26WS-EPIWRC 44.45 1 ³/4 9.08 6.10 1,571 353,196 1,740 391,110
8xK26WS-EPIWRC 46 9.73 6.54 1,683 378,258 1,863 418,862
8xK26WS-EPIWRC 48 10.60 7.12 1,832 411,865 2,029 456,077
8xK26WS-EPIWRC 50 11.49 7.72 1,988 446,902 2,201 494,875
8xK26WS-EPIWRC 50.80 2 11.87 7.98 2,052 461,318 2,272 510,838
8xK26WS-EPIWRC 52 12.43 8.36 2,150 483,370 2,381 535,257
8xK26WS-EPIWRC 54 2 ¹/8 13.41 9.01 2,319 521,267 2,568 577,222
8xK26WS-EPIWRC 56 14.42 9.69 2,494 560,594 2,761 620,771
8xK26WS-EPIWRC 57.15 2 1/4 15.02 10.09 2,597 583,855 2,876 646,529
8xK26WS-EPIWRC 58 15.47 10.39 2,675 601,352 2,962 665,904
8xK26WS-EPIWRC 60 16.55 11.12 2,863 643,540 3,170 712,620
8xK26WS-EPIWRC 60.33 2 3/8 16.74 11.25 2,894 650,530 3,204 720,361
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
