flipLINE

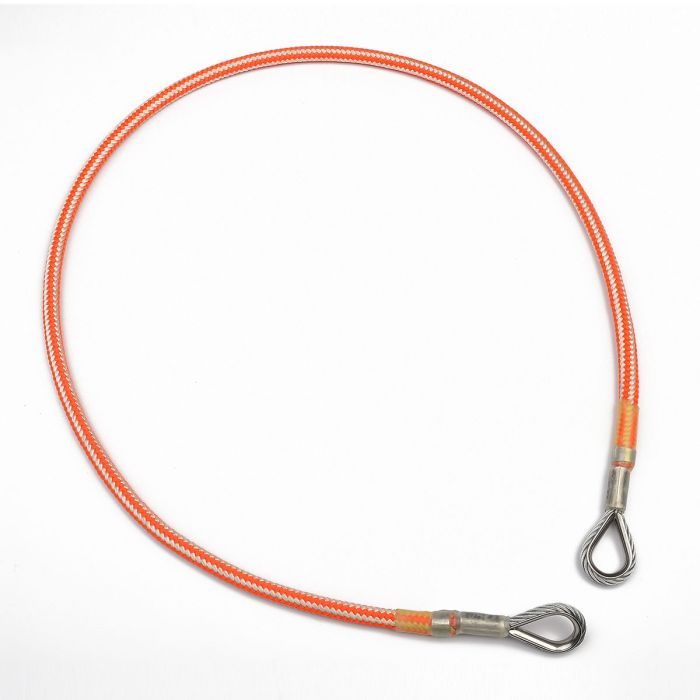

The flipLINEs from TEUFELBERGER are lanyards provided with a steel wire core.
Available in 12.5 mm diameter, our flipLINEs feature a Hi-Vee cover tightly braided over a steel wire core.
Specifications
Lengths:
-
e2e: 1.9 m, 2.5 m, 3.1 m, 3.7 m, 4.3 m, 4.9 m
Standards: EN354:2010, ANSI Z133-2017
Plait number: 16
Color Images
White/Orange
12.5 mm
-
White/Orange
12.5 mm
Available in 12.5 mm diameter, our flipLINEs feature a Hi-Vee cover tightly braided over a steel wire core.
The diameter and construction of the flipLINE allow using this rope product in combination with most types of ascenders and mechanic adjusters. The flipLINEs from TEUFELBERGER are certified to EN and ANSI and are available in different lengths and versions.
Lengths and versions:
-
e2e: 1.9 m, 2.5 m, 3.1 m, 3.7 m, 4.3 m, 4.9 m
-
e2e + swivel: 1.9 m, 2.5 m, 3.1 m, 3.7 m, 4.3 m, 4.9 m
Caution!
The flipLINE is unsuited for use in the vicinity of electrical lines!
| Description | Diameter [mm] | Diameter [inch] | Min. breaking strength [daN] | Min. breaking strength [lbf] | |
|---|---|---|---|---|---|
| e2e | 12.70 | 1/2 | 2 450 | 5 400 | |
| e2e + swivel | 12.70 | 1/2 | 2 450 | 5 400 |
