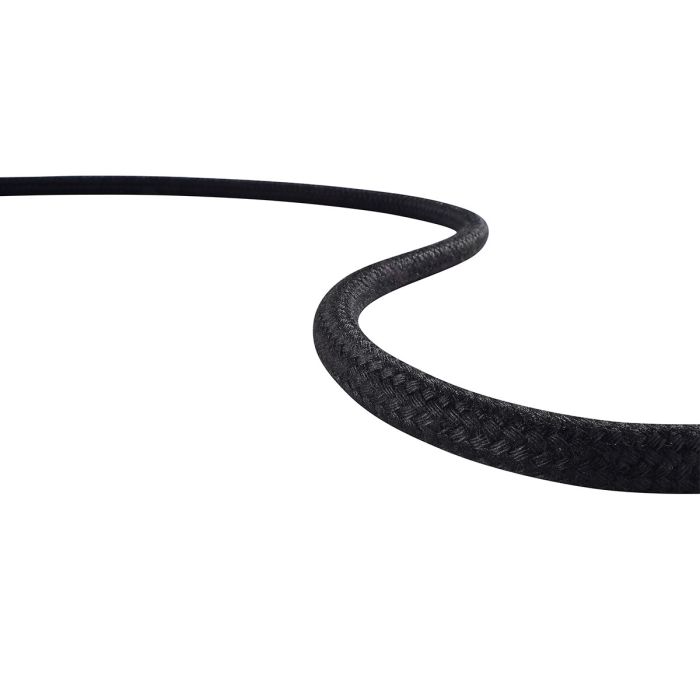

DynaCam Static

Ropes for camera systems

The high performance fiber rope DynaCam Static consists of UHMWPE fibers and a protective PES cover. It has minimal elongation and extremely high breaking force.

Specifications

Diameter: 12 mm
Core: UHMWPE
Cover: Polyester
Color: Black

High performance fiber rope made of UHMWPE fibers and including a protective PES cover. Woven-in metal fibers dissipate static charges which obviously are generated by frequent passing.  The rope demonstrates minimal elongation and extremely high breaking force.


Advantages:

  • 7 times less weight than comparable steel wire ropes
  • Extremely high breaking forces – higher than on a steel wire rope having the same diameter – permit long spans with minimal slack
  • Dissipation of static charges by woven-in metal fibers in the cover ensures trouble-free operation
  • Very high abrasion resistance and long service life
  • Requires no retensioning because of minimal initial elongation and working elongation


Types and areas of use:

  • Carrying rope for high speed camera systems
Diameter
[mm]
Minimum breaking load
[kN]
Weight
[g/m]
12 73 93
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
