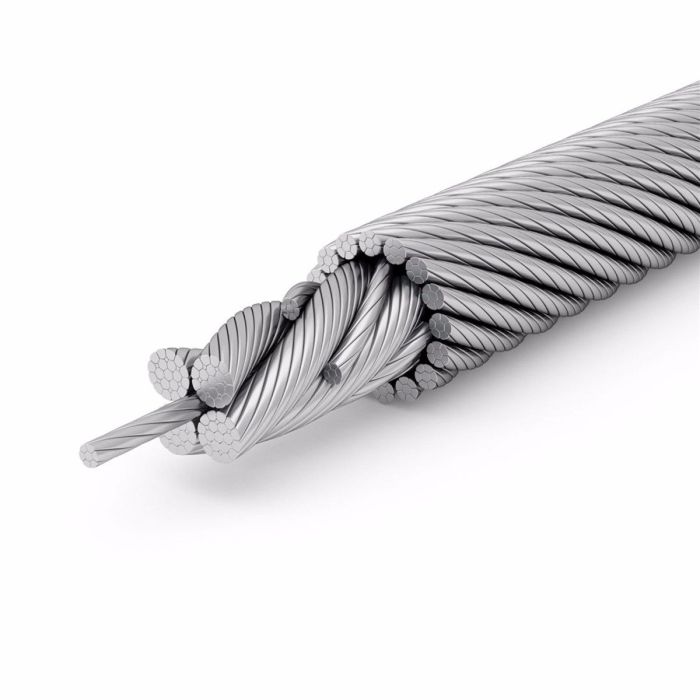

EVOLUTION TK17 PLUS
Featuring extremely high breaking forces and minimum diameter tolerances, EVOLUTION TK17 PLUS is particularly suited for application on all terrain cranes and crawler cranes.
Specifications
Lang’s lay (also available as ordinary lay rope), right or left lay
- 16 x K7-PIWRC (K), RCN 23-2
✔ Multilayer spooling
✔ SUPERFILL®
Made in
All terrain cranes and crawler cranes of leading manufacturers worldwide make it possible to work with ever increasing loads at extreme heights. TEUFELBERGER offers the EVOLUTION TK17PLUS as hoist rope featuring even higher breaking forces due to specifically developed and thoroughly tested manufacturing parameters.
Benefits of EVOLUTION TK17PLUS:
- Breaking forces specified by common manufacturers of all terrain cranes and crawler cranes
- Perfect spooling behavior in multilayer spooling use due to exact diameter tolerances and high dimensional stability under lateral pressure, even under enormously demanding conditions
- Easy installation and perfect handling features on reeving due to the rope’s very high flexibility
- Safe and trouble-free operation and handling due to perfect torsional behavior even with heavy loads and enormous lifting heights
- Excellent service life due to high wear resistance in multilayer spooling applications due to the advanced compacted surface and enormous dimensional stability under lateral pressure
- Teufelberger offers the correct end-terminations for this rope for the most common cranes as well
| Product name | Diameter [mm] | Diameter [inch] | Weight [kg/m] | Weight [lbf/ft] | Minimum breaking force at a tensile strength of 1960 N/mm² [kN] | Minimum breaking force at a tensile strength of 1960 N/mm² [lbf] |
|---|---|---|---|---|---|---|
| EVOLUTION TK 17 Plus | 23 | 2.62 | 1.76 | 550 | 123,645 | |
| EVOLUTION TK 17 Plus | 26 | 3.34 | 2.24 | 682 | 153,320 | |
| EVOLUTION TK 17 Plus | 28 | 3.89 | 2.61 | 811 / 814 * | 182.320 / 182.994 * | |
| EVOLUTION TK 17 Plus | 32 | 1.25 | 4.98 | 3.34 | 1,035 | 232,677 |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
