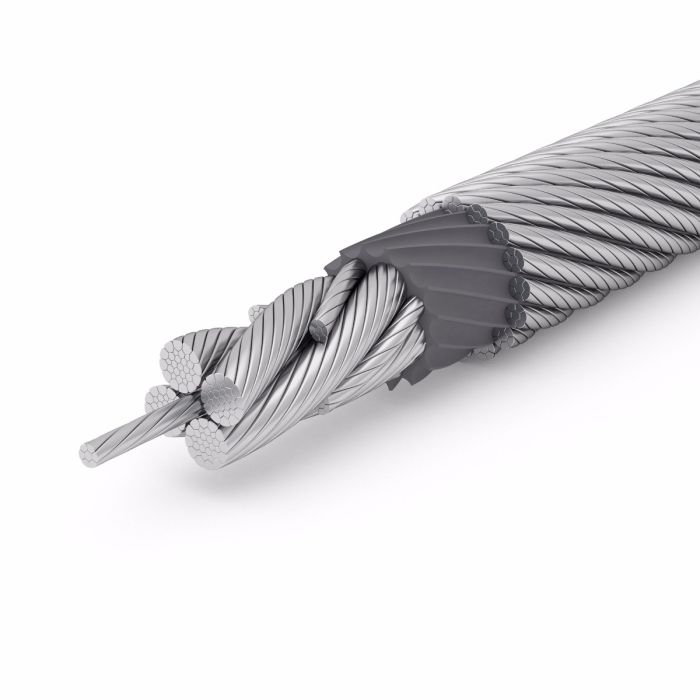

EVOLUTION TK16
This rotation resistant rope combines all characteristics that are crucial to this type of use: excellent longevity, and high flexibility
Specifications
Ordinary or Lang's lay, right or left-handed
8 - 30 mm: 16 x K6-EPIWRC (K), RCN 23-1
32 - 42 mm: 16 x K7-EPIWRC (K), RCN 23-2
✔Multilayer spooling
✔PLASTFILL®
✔SUPERFILL®
✔Pro Active core lubrication
✔PROTECT on request
Using Teufelberger-Redaelli's high performance steel wire ropes as hoist ropes on offshore cranes and subsea winches that are continuously exposed to brutally harsh environmental conditions really puts them to the test. The EVOLUTION TK16, a rope that lives up to expectations day after day on oil platforms and ships around the globe, can withstand such conditions easily.
Benefits of EVOLUTION TK16:
- Extremely resistant to corrosion, external environmental influences, and the ingress of dirt thanks to its PLASTFILL® insert and the resulting perfect permanent lubrication of its core.
- Excellent spooling performance due to its extremely high dimensional stability under lateral pressure, even in multilayer spooling operations
- Highest operational safety due to its high breaking forces and excellent torsional characteristics made possible by the harmoniously balanced rope structure
- Longer lifetime and maximized cost-effectiveness thanks to the wear-optimized and rope-friendly SUPERFILL® compaction of all strands
- Operational safety due to the perfect lubrication of the core thanks to the PLASTFILL® insert
- Special lubrication for applications with active heave compensation (AHC) systems that is ideally designed for high temperatures and extreme lifting heights
- Consistently tight diameter tolerances achieved with the unrivaled SUPERFILL® compaction method; hence, perfect spooling performance even in combination with long rope lengths
| Product name | Diameter | Weight | Mindestbruchkräfte | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Festigkeitsklassen 1770 N/mm² | Festigkeitsklassen 1960 N/mm² | Festigkeitsklassen 2160 N/mm² | ||||||||
| [mm] | [inch] | [kg/m] | [lbs/ft] | [kN] | [lbs] | [kN] | [lbs] | [kN] | [lbs] | |
| EVOLUTION TK 16 | 8 | 5/16 | 0.34 | 0.23 | 54 | 12 140 | 59 | 13 264 | 64 | 14 388 |
| EVOLUTION TK 16 | 9 | 0.41 | 0.27 | 67 | 15 062 | 74 | 16 636 | 78 | 17 535 | |
| EVOLUTION TK 16 | 10 | 0.50 | 0.33 | 82 | 18 434 | 91 | 20 458 | 98 | 22 031 | |
| EVOLUTION TK 16 | 11 | 0.61 | 0.41 | 100 | 22 481 | 111 | 24 954 | 118 | 26 527 | |
| EVOLUTION TK 16 | 12 | 0.74 | 0.50 | 120 | 26 977 | 133 | 29 900 | 144 | 32 372 | |
| EVOLUTION TK 16 | 13 | 0.86 | 0.58 | 141 | 31 698 | 156 | 35 070 | 170 | 38 218 | |
| EVOLUTION TK 16 | 14 | 9/16 | 1.01 | 0.68 | 163 | 36 644 | 181 | 40 690 | 197 | 44 287 |
| EVOLUTION TK 16 | 15 | 1.16 | 0.78 | 194 | 43 613 | 215 | 48 334 | 231 | 51 931 | |
| EVOLUTION TK 16 | 16 | 5/8 | 1.32 | 0.88 | 221 | 49 683 | 244 | 54 853 | 263 | 59 125 |
| EVOLUTION TK 16 | 17 | 1.50 | 1.01 | 241 | 54 179 | 267 | 60 024 | 290 | 65 195 | |
| EVOLUTION TK 16 | 18 | 1.64 | 1.10 | 279 | 62 722 | 309 | 69 466 | 333 | 74 861 | |
| EVOLUTION TK 16 | 19 | 3/4 | 1.85 | 1.24 | 312 | 70 140 | 345 | 77 559 | 371 | 83 404 |
| EVOLUTION TK 16 | 20 | 2.08 | 1.39 | 338 | 75 985 | 374 | 84 079 | 401 | 90 148 | |
| EVOLUTION TK 16 | 21 | 2.26 | 1.52 | 373 | 83 854 | 413 | 92 846 | 444 | 99 815 | |
| EVOLUTION TK 16 | 22 | 7/8 | 2.51 | 1.68 | 408 | 91 722 | 452 | 101 614 | 487 | 109 482 |
| EVOLUTION TK 16 | 24 | 2.94 | 1.97 | 483 | 108 583 | 535 | 120 273 | 580 | 130 389 | |
| EVOLUTION TK 16 | 25 | 1.00 | 3.15 | 2.11 | 537 | 120 722 | 595 | 133 761 | 639 | 143 653 |
| EVOLUTION TK 16 | 26 | 3.49 | 2.34 | 567 | 127 467 | 627 | 140 955 | 675 | 151 746 | |
| EVOLUTION TK 16 | 27 | 3.74 | 2.51 | 609 | 136 909 | 674 | 151 521 | 725 | 162 986 | |
| EVOLUTION TK 16 | 28 | 4.05 | 2.71 | 655 | 147 250 | 725 | 162 986 | 780 | 175 351 | |
| EVOLUTION TK 16 | 28.57 | 1 1/8 | 4.14 | 2.78 | 668 | 150 172 | 744 | 167 258 | 814 | 182 994 |
| EVOLUTION TK 16 | 29 | 4.27 | 2.87 | 701 | 157 591 | 777 | 174 677 | 835 | 187 715 | |
| EVOLUTION TK 16 | 30 | 4.62 | 3.10 | 749 | 168 382 | 830 | 186 591 | 893 | 200 754 | |
| EVOLUTION TK 16 | 32 | 1 1/4 | 5.24 | 3.52 | 853 | 191 762 | 944 | 212 220 | 1 035 | 232 677 |
| EVOLUTION TK 16 | 34 | 5.90 | 3.96 | 958 | 215 367 | 1 061 | 238 522 | 1 141 | 256 507 | |
| EVOLUTION TK 16 | 36 | 6.65 | 4.46 | 1 072 | 240 995 | 1 187 | 266 848 | 1 277 | 287 081 | |
| EVOLUTION TK 16 | 38 | 1 1/2 | 7.35 | 4.93 | 1 237 | 278 089 | 1 369 | 307 763 | 1 472 | 330 919 |
| EVOLUTION TK 16 | 40 | 7.87 | 5.28 | 1 317 | 296 073 | 1 458 | 327 771 | 1 568 | 352 500 | |
| EVOLUTION TK 16 | 42 | 8.97 | 6.02 | 1 452 | 326 423 | 1 608 | 361 493 | 1 729 | 388 695 | |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
