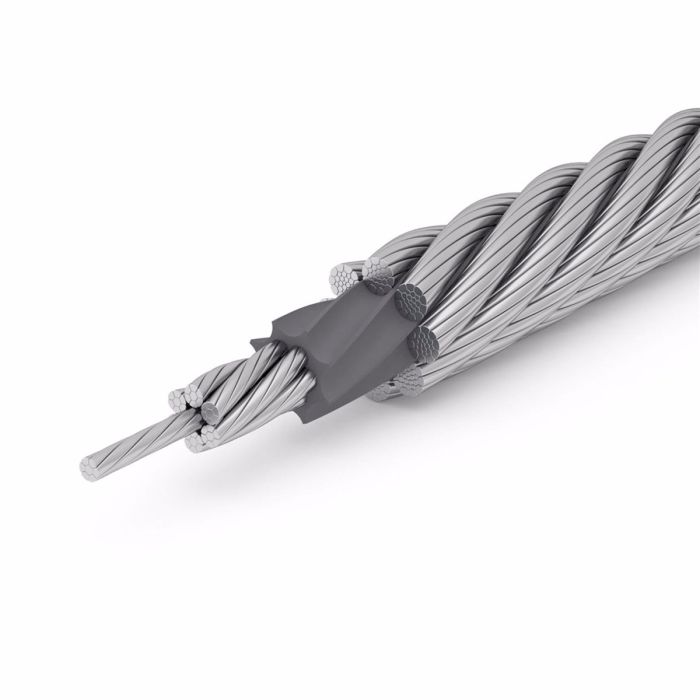

EVOLUTION QS816V

Where a rope offering enormous minimum breaking forces is required, look no further.  Its fantastic durability and superior versatility make it a compelling choice.

Specifications

Ordinary lay or lang’s lay, right or left lay
8 x K26WS EPIWRC (K), RCN 09
Use without swivel

✔ Multilayer spooling
✔ SUPERFILL®
✔ PLASTFILL®

Longevity and reliability combined with maximum operational safety are crucial for high performance steel wire ropes operating in steel mills. EVOLUTION QS816V combines these properties with robustness and resistance to adverse external influences. All this is mainly a result of this rope's excellent versatility and its core-protecting PLASTFILL® insert. Used on request, the special Pro Active lubrication with extreme heat-resistant grease provides permanent lubrication even in high temperature environments, thus ensuring exceptional longevity.

Benefits of EVOLUTION QS816V:

  • Reliability and safety in use due to the rope's high resistance to extremely high actual and minimum breaking forces achieved by SUPERFILL®-compacting all strands
  • Long lifetime due to the wear-optimized construction including SUPERFILL®-compacted strands and a PLASTFILL® insert
  • Highest resistance to internal corrosion, even in the case of high operating temperatures, due to the use of galvanized high quality wires and the permanent lubrication of the rope core
  • High resistance to mechanical wear and damage
Product name Diameter
[mm]
Diameter
[inch]
Weight
[kg/m]
Weight
[lbs/ft]
Minimum breaking force at a tensile strength of 1770 N/mm²
[kN]
Minimum breaking force at a tensile strength of 1770 N/mm²
[lbs]
Minimum breaking force at a tensile strength of 1960 N/mm²
[kN]
Minimum breaking force at a tensile strength of 1960 N/mm²
[lbs]
Minimum breaking force at rope grade 2160 N/mm²
[kN]
Minimum breaking force at rope grade 2160 N/mm²
[lbs]
QS 816 V(G) 10 0.46 0.31 81 18,210 89 20,008 98 22,031
QS 816 V(G) 11 7/16 0.55 0.37 97 21,806 107 24,055 118 26,527
QS 816 V(G) 12 0.69 0.46 117 26,303 129 29,000 143 32,148
QS 816 V(G) 13 0.81 0.54 141 31,698 156 35,070 172 38,667
QS 816 V(G) 14 9/16 0.93 0.62 162 36,419 179 40,241 198 44,512
QS 816 V(G) 15 1.06 0.71 185 41,590 205 46,086 226 50,807
QS 816 V(G) 16 5/8 1.20 0.81 210 47,210 232 52,156 256 57,551
QS 816 V(G) 17 1.35 0.91 235 52,830 261 58,675 287 64,520
QS 816 V(G) 18 1.55 1.04 263 59,125 291 65,419 321 72,164
QS 816 V(G) 19 3/4 1.71 1.15 302 67,892 335 75,311 369 82,954
QS 816 V(G) 20 1.89 1.27 330 74,187 365 82,055 402 90,373
QS 816 V(G) 21 2.15 1.44 374 84,079 414 93,071 457 102,738
QS 816 V(G) 22 7/8 2.34 1.57 408 91,722 451 101,389 497 111,730
QS 816 V(G) 23 2.54 1.70 445 100,040 492 110,606 543 122,071
QS 816 V(G) 24 2.75 1.85 467 104,986 517 116,226 570 128,141
QS 816 V(G) 25 1.00 2.97 1.99 518 116,451 574 129,040 633 142,304
QS 816 V(G) 26 3.19 2.14 555 124,769 615 138,257 678 152,420
QS 816 V(G) 27 3.51 2.36 595 133,761 659 148,149 727 163,436
QS 816 V(G) 28 3.76 2.52 656 147,475 726 163,211 800 179,847
QS 816 V(G) 28.57 1 1/8 3.98 2.67 672 151,072 745 167,483 820 184,343
QS 816 V(G) 29 4.04 2.71 694 156,017 768 172,653 847 190,413
QS 816 V(G) 30 4.37 2.93 764 171,754 846 190,188 897 201,654
QS 816 V(G) 32 1 1/4 4.90 3.29 864 194,235 957 215,142 1,072 240,995
QS 816 V(G) 34 5.59 3.75 945 212,444 1,046 235,150 1,153 259,205
QS 816 V(G) 36 6.36 4.27 1,071 240,770 1,186 266,623 1,284 288,655
QS 816 V(G) 38 1 1/2 7.03 4.72 1,222 274,717 1,354 304,391 1,431 321,702
QS 816 V(G) 40 7.81 5.24 1,342 301,694 1,486 334,066 1,545 347,330
QS 816 V(G) 42 8.60 5.77 1,482 333,167 1,641 368,911 1,736 390,268
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
