114S
Due to the reliability and availability of this 6-strand trolley rope unscheduled downtimes are prevented.
Specifications
Ordinary lay, right or left lay

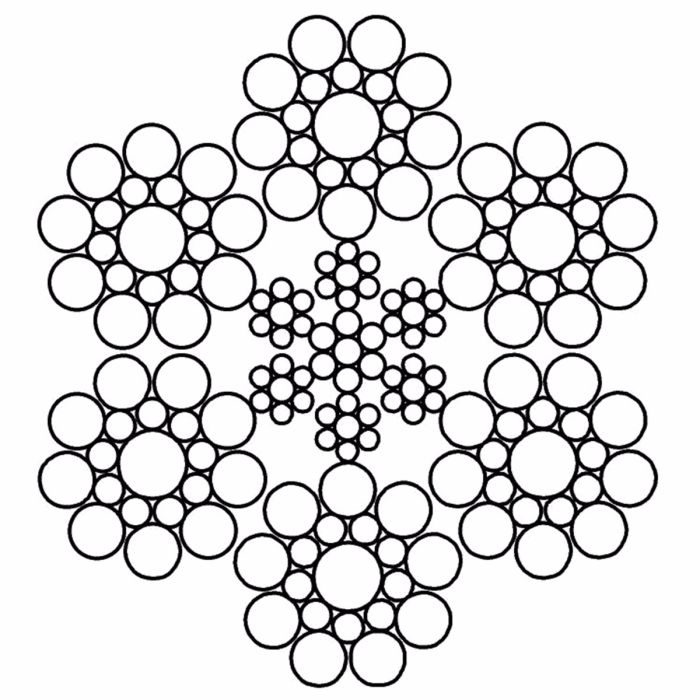

6 x 19S-IWRC, RCN 02
Use without swivel
Unscheduled downtimes of tower cranes may entail high costs. Therefore, customers trust in the reliable trolley rope 114S from TEUFELBERGER.
The benefits of 114S
- Perfect trolley rope in the lower diameter range for all common tower cranes
- Easy to use due to high flexibility
- Very cost-efficient due to excellent service times
| Product name | Diameter [mm] | Diameter [inch] | Weight [kg/m] | Weight [lbf/ft] | Minimum breaking force at a tensile strength of 1960 N/mm² [kN] | Minimum breaking force at a tensile strength of 1960 N/mm² [lbf] |
|---|---|---|---|---|---|---|
| 114 S | 6.50 | 0.17 | 0.11 | 30 | 6 744 | |
| 114 S | 7 | 0.20 | 0.13 | 34 | 7 644 | |
| 114 S | 7.50 | 0.23 | 0.15 | 39 | 8 768 | |
| 114 S | 8 | 0.26 | 0.17 | 45 | 10 116 | |
| 114 S | 9 | 0.32 | 0.21 | 57 | 12 814 | |
| 114 S | 10 | 0.41 | 0.28 | 70 | 15 737 | |
| 114 S | 11 | 0.47 | 0.32 | 84 | 18 884 | |
| 114 S | 12 | 0.59 | 0.40 | 101 | 22 706 |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
