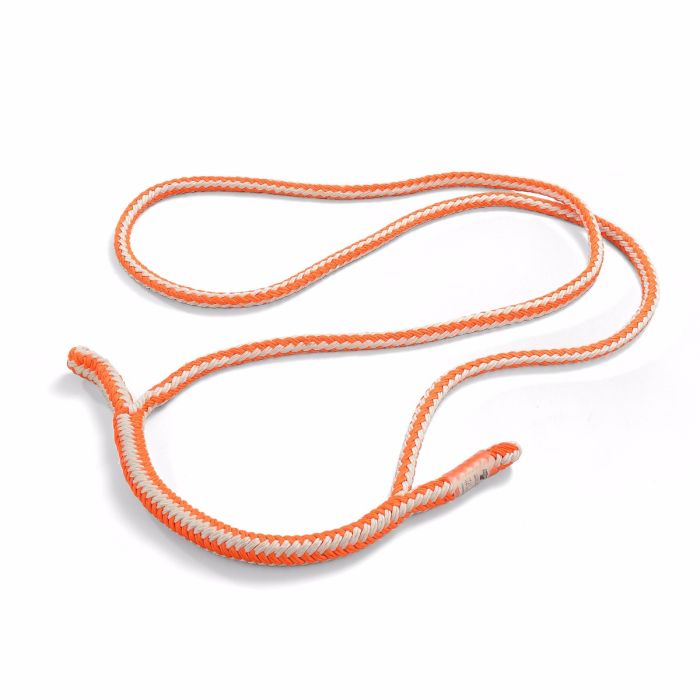

tREX Loopie
Endless sling for rigging applications
Our tREX Loopie is a colorfast endless sling for fixing deflection pulleys in accordance with the Machinery Directive.
Specifications
Lengths: 1 m, 1.5 m, 2.5 m, 3 m, 3.5 m, 4.5 m
Standard: Machinery Directive 2006/42/EC as amended
Cover: polyester
Plait number: 12
Made in
tREX Loopies are our endless slings for rigging applications developed by TEUFELBERGER.
The adjustable endless slings are made up of the new tREX ropes for rigging applications. They are ideally suited for the knotless attachment of a block to the top of a tree, or for the installation of deflection points. These endless slings are available in many different sizes.
The benefits of our tREX Loopies are:
- Suppleness
- Abrasion resistance
- High-vis
- Color fastness
| ID | Diameter [mm] | Diameter [inch] | Min. breaking strength, pull in 90° [daN] | Min. breaking strength, pull in 90° [lbf] | Min. breaking strength, pull in 0° [daN] | Min. breaking strength, pull in 0° [lbf] |
|---|---|---|---|---|---|---|
| 9.50 | 3/8 | 2 800 | 6 290 | 3 300 | 7 410 | |
| 11.10 | 7/16 | 3 700 | 8 310 | 4 400 | 9 890 | |
| 12.70 | 1/2 | 4 800 | 10 790 | 5 700 | 12 810 | |
| 15.90 | 5/8 | 7 200 | 16 180 | 8 500 | 19 100 | |
| 19.10 | 3/4 | 10 000 | 22 480 | 11 800 | 26 520 | |
| 22.20 | 7/8 | 14 000 | 31 470 | 16 600 | 37 310 |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
