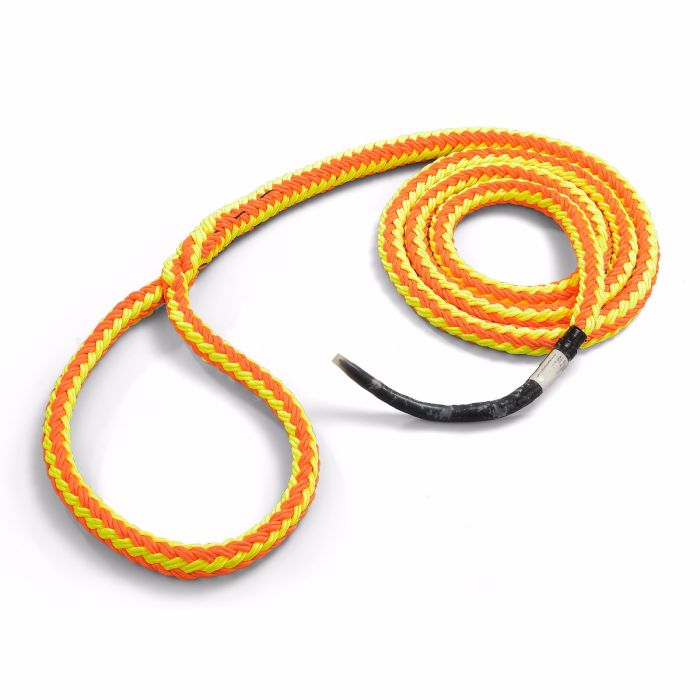

tREX Soft Eye Sling
Sling with one fixed eye for rigging applications
The tREX Soft Eye Sling is the newest sling with one fixed eye made by TEUFELBERGER for rigging applications according to the Machinery Directive.
Specifications
Lengths: 3 m, 4 m, 5 m, 6 m, 6.5 m
Standard: EU Directive 2006/42/EC
Cover: polyester
Plait number: 12
Made in
Our tREX Soft Eye Sling allows you to set hardware to the ideal length for your intended use in practically no time at all.
The loose end is tapered in a special procedure and bent at an optimum angle such that the end can be pulled through and served easily and with minimal effort. The various available lengths and the 35 cm eye offer you several configuration options.
Our tREX Soft Eye Sling will impress you with its:
- Suppleness
- Abrasion resistance
- Hi-vis
- Color fastness
| Product name | Color | Diameter [mm] | Diameter [inch] | Min. breaking strength, pull in 90° [daN] | Min. breaking strength, pull in 90° [lbf] | Min. breaking strength, pull in 0° [daN] | Min. Bruchkraft, Zug in 0° [lbs] |
|---|---|---|---|---|---|---|---|
| tREX Soft Eye Sling | 9.50 | 3/8 | 1 400 | 3 145 | 1 600 | 3 595 | |
| tREX Soft Eye Sling | 11.10 | 7/16 | 1 800 | 4 045 | 2 200 | 4 945 | |
| tREX Soft Eye Sling | 12.70 | 1/2 | 2 400 | 5 395 | 2 800 | 6 290 | |
| tREX Soft Eye Sling | 15.90 | 5/8 | 3 600 | 8 090 | 4 200 | 9 440 | |
| tREX Soft Eye Sling | 19.10 | 3/4 | 5 000 | 11 240 | 5 900 | 13 260 | |
| tREX Soft Eye Sling | 22.20 | 7/8 | 7 000 | 15 735 | 8 300 | 18 655 |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
