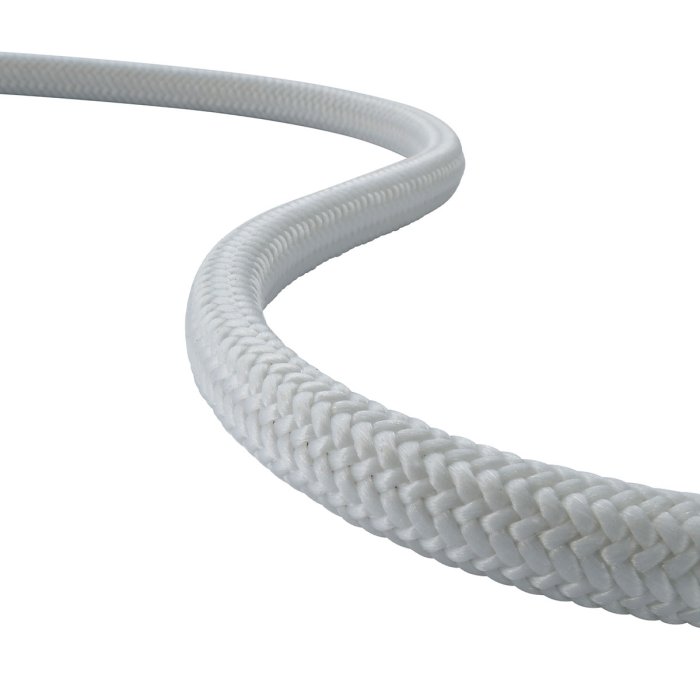

STRATOS® Winch Pro

STRATOS® Winch Pro, a fiber rope featuring a unique protective cover, is TEUFELBERGER's winch rope for professional full-time users.

Specifications

Diameter: 8-23 mm
Lengths: Variable, made as needed
Construction: Kernmantle rope
Core: Dyneema®
Cover: Dyneema®

The STRATOS® Winch Pro kernmantle rope made of Dyneema® is TEUFELBERGER's winch rope for professional use.

The tightly braided Dyneema® cover protects the load-bearing Dyneema® fibers from abrasion and the ingress of dirt and, as a result, increases the rope's lifetime by severalfold.

Dimensioned and used correctly, this long-established and proven winch rope will last much longer than a steel rope.

Types and areas of use:

  • Hauling rope for add-on winches and skidding winches
Rope diameter
[mm]
Core diameter
[mm]
Min. breaking strength, free length
[kN]
Weight
[g/m]
8 6 48 44
10.50 8 90 73
12 10 120 94
13 11 145 102
15 12 180 150
17 14 235 192
20 16 300 259
23 18 355 332
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
