F20

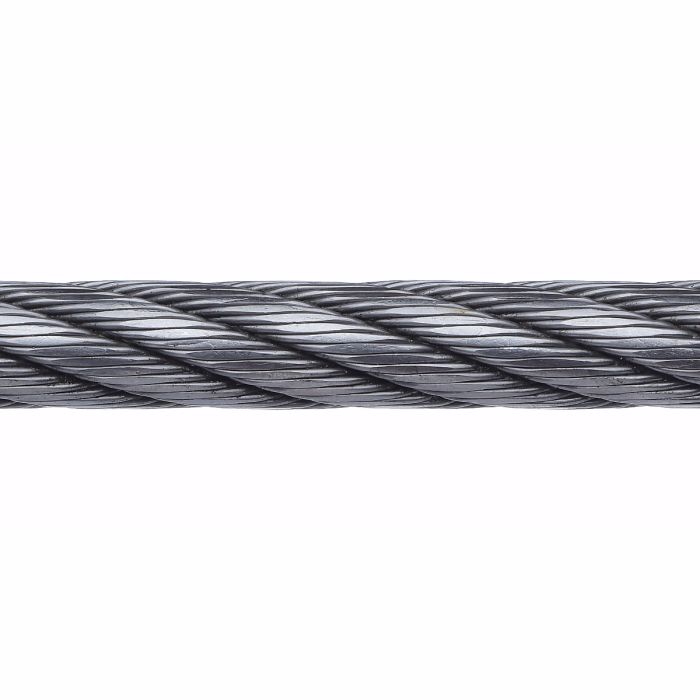

The F20 forestry rope is a versatile steel wire rope for a variety of forestry applications.
Specifications
Diameter: 10-22 mm
Construction: 6 x K25F-IWRC
Rope grade: 1960
Compaction: Rope compaction (hammered)
Surface: Blank
Standard: EN 12385-4
The TEUFELBERGER F20 forestry rope is a versatile steel wire rope for a variety of forestry applications. It is low-twist, flexible, and robust – even with large fleet angles. Other strong points are high breaking force and optimized lubrication.
Types and areas of use:
- Hauling rope for add-on winches and skidding winches
- Skyline for tower yarders and long distance winches
- Skyline extension
- Hauling and haulback rope for tower yarders and long distance winches
- Hoist rope for carriages
| Diameter [mm] | Minimum breaking force at a tensile strength of 1960 N/mm² [kN] | Weight [kg/m] | Aluminum ferrule size | Standard codes | |
|---|---|---|---|---|---|
| 9 | 82 | 0.46 | 11 | N | |
| 10 | 97 | 0.53 | 12 | S | |
| 11 | 115 | 0.63 | 13 | S | |
| 12 | 133 | 0.73 | 14 | S | |
| 13 | 154 | 0.84 | 16 | S | |
| 14 | 177 | 0.96 | 18 | N | |
| 15 | 201 | 1.09 | 18 | N | |
| 16 | 239 | 1.23 | 20 | N | |
| 18 | 294 | 1.64 | 22 | N | |
| 20 | 356 | 1.98 | 24 | N | |
| 22 | 424 | 2.37 | 26 | N |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
