DynaCam NG
Ropes for camera systems

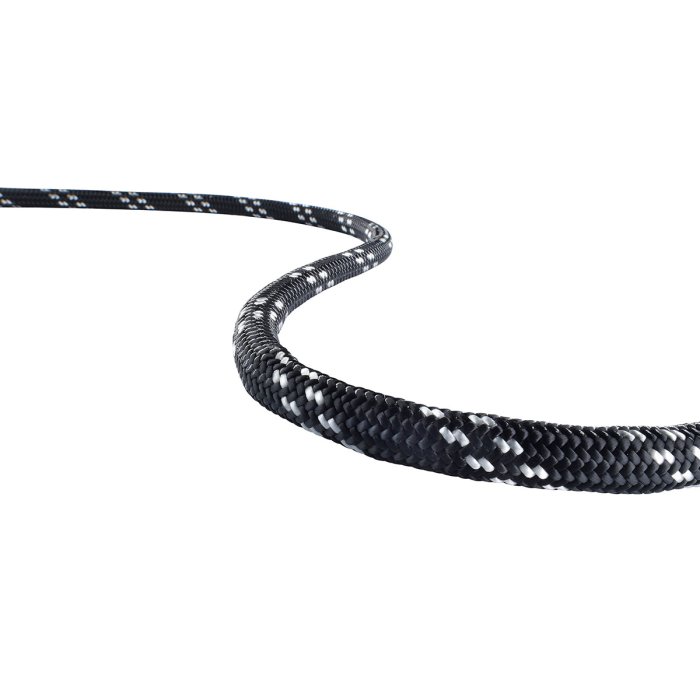

DynaCam NG is a high performance fiber rope made of UHMWPE fibers and including a protective PES cover. It exhibits extremely high breaking force and high reverse bending fatigue strength.
Specifications
Diameter: 8 mm
Core: UHMWPE
Cover: Polyester
Color: Black
Advantages:
- 7 times less weight than comparable steel wire ropes
- Outstandingly high breaking forces – higher than on a steel wire rope having the same diameter – permit long spans with minimal slack
- Extremely abrasion resistant
- Very high reverse bending fatigue strength and long lifetime
- Requires no retensioning because of minimal initial elongation and working elongation
Types and areas of use:
- Hauling rope for high speed camera systems
| Diameter [mm] | Minimum breaking load [kN] | Weight [g/m] | |
|---|---|---|---|
| 8 | 36 | 40 |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
