EVOLUTION QS816V
It’s phenomenal resistance to adverse external influences and superior versatility make this rope a compelling choice as boom hoist rope on offshore cranes.
Specifications
Ordinary or Lang's lay, right or left-handed
10–42 mm: 8 x K26WS – EPIWRC (K), RCN 0 9
44–50 mm: 8 x K31WS – EPIWRC (K), RCN 11
52–70 mm: 8 x K42WS – EPIWRC (K), RCN >13
Use without swivel
✔ Multilayer spooling
✔ PLASTFILL®
✔ SUPERFILL®
Operational safety and reliability are indispensable characteristics for ropes used in offshore applications, as they are permanently exposed to brutally harsh conditions. EVOLUTION QS816V is also extremely versatile, robust, and durable.

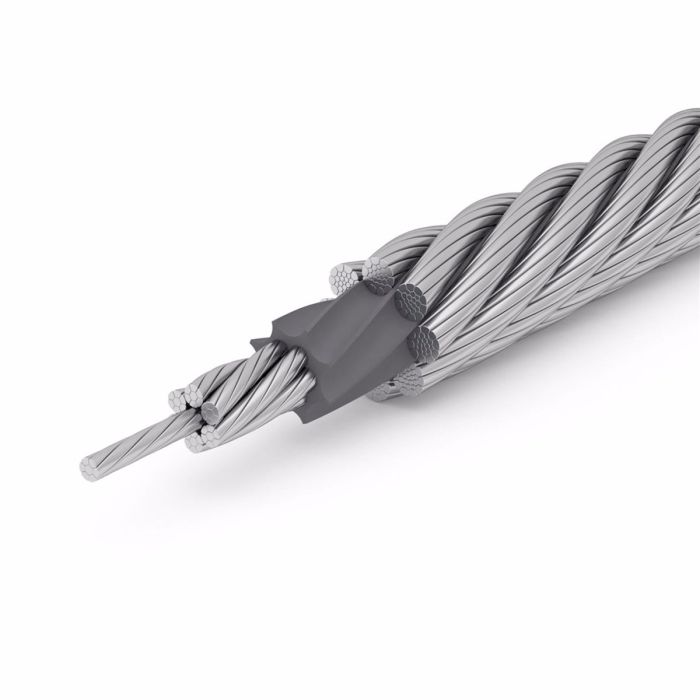

This is made possible by the special rope construction which includes a core-protecting PLASTFILL® insert.
Benefits of EVOLUTION QS816V:
- Reliability and safety in use thanks to the rope's excellent durability under very high actual and minimum breaking forces achieved by SUPERFILL®-compacting all strands
- Long lifetime due to the wear-optimized construction and the core-protecting PLASTFILL® insert
- Excellent spooling performance on multilayer spooling systems thanks to high dimensional stability under lateral pressure
- Low wear even in multilayer spooling use thanks to SUPERFILL® compaction of all strands
| Product name | Diameter | Weight | Mindestbruchkräfte | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Festigkeitsklassen 1770 N/mm² | Festigkeitsklassen 1960 N/mm² | Festigkeitsklassen 2160 N/mm² | ||||||||
| [mm] | [inch] | [kg/m] | [lbs/ft] | [kN] | [lbs] | [kN] | [lbs] | [kN] | [lbs] | |
| QS 816 V(G) | 10 | 0.46 | 0.31 | 81 | 18 210 | 89 | 20 008 | 98 | 22 031 | |
| QS 816 V(G) | 11 | 7/16 | 0.55 | 0.37 | 97 | 21 806 | 107 | 24 055 | 118 | 26 527 |
| QS 816 V(G) | 12 | 0.69 | 0.46 | 117 | 26 303 | 129 | 29 000 | 143 | 32 148 | |
| QS 816 V(G) | 13 | 0.81 | 0.54 | 141 | 31 698 | 156 | 35 070 | 172 | 38 667 | |
| QS 816 V(G) | 14 | 9/16 | 0.93 | 0.62 | 162 | 36 419 | 179 | 40 241 | 198 | 44 512 |
| QS 816 V(G) | 15 | 1.06 | 0.71 | 185 | 41 590 | 205 | 46 086 | 226 | 50 807 | |
| QS 816 V(G) | 16 | 5/8 | 1.20 | 0.81 | 210 | 47 210 | 232 | 52 156 | 256 | 57 551 |
| QS 816 V(G) | 17 | 1.35 | 0.91 | 235 | 52 830 | 261 | 58 675 | 287 | 64 520 | |
| QS 816 V(G) | 18 | 1.55 | 1.04 | 263 | 59 125 | 291 | 65 419 | 321 | 72 164 | |
| QS 816 V(G) | 19 | 3/4 | 1.71 | 1.15 | 302 | 67 892 | 335 | 75 311 | 369 | 82 954 |
| QS 816 V(G) | 20 | 1.89 | 1.27 | 330 | 74 187 | 365 | 82 055 | 402 | 90 373 | |
| QS 816 V(G) | 21 | 2.15 | 1.44 | 374 | 84 079 | 414 | 93 071 | 457 | 102 738 | |
| QS 816 V(G) | 22 | 7/8 | 2.34 | 1.57 | 408 | 91 722 | 451 | 101 389 | 497 | 111 730 |
| QS 816 V(G) | 23 | 2.54 | 1.70 | 445 | 100 040 | 492 | 110 606 | 543 | 122 071 | |
| QS 816 V(G) | 24 | 2.75 | 1.85 | 467 | 104 986 | 517 | 116 226 | 570 | 128 141 | |
| QS 816 V(G) | 25 | 1.00 | 2.97 | 1.99 | 518 | 116 451 | 574 | 129 040 | 633 | 142 304 |
| QS 816 V(G) | 26 | 3.19 | 2.14 | 555 | 124 769 | 615 | 138 257 | 678 | 152 420 | |
| QS 816 V(G) | 27 | 3.51 | 2.36 | 595 | 133 761 | 659 | 148 149 | 727 | 163 436 | |
| QS 816 V(G) | 28 | 3.76 | 2.52 | 656 | 147 475 | 726 | 163 211 | 800 | 179 847 | |
| QS 816 V(G) | 28.57 | 1 1/8 | 3.98 | 2.67 | 672 | 151 072 | 745 | 167 483 | 820 | 184 343 |
| QS 816 V(G) | 29 | 4.04 | 2.71 | 694 | 156 017 | 768 | 172 653 | 847 | 190 413 | |
| QS 816 V(G) | 30 | 4.37 | 2.93 | 764 | 171 754 | 846 | 190 188 | 897 | 201 654 | |
| QS 816 V(G) | 32 | 1 1/4 | 4.90 | 3.29 | 864 | 194 235 | 957 | 215 142 | 1 072 | 240 995 |
| QS 816 V(G) | 34 | 5.59 | 3.75 | 945 | 212 444 | 1 046 | 235 150 | 1 153 | 259 205 | |
| QS 816 V(G) | 36 | 6.36 | 4.27 | 1 071 | 240 770 | 1 186 | 266 623 | 1 284 | 288 655 | |
| QS 816 V(G) | 38 | 1 1/2 | 7.03 | 4.72 | 1 222 | 274 717 | 1 354 | 304 391 | 1 431 | 321 702 |
| QS 816 V(G) | 40 | 7.81 | 5.24 | 1 342 | 301 694 | 1 486 | 334 066 | 1 545 | 347 330 | |
| QS 816 V(G) | 42 | 8.60 | 5.77 | 1 482 | 333 167 | 1 641 | 368 911 | 1 736 | 390 268 | |
