Full-locked coil guide rope (FLC)

Guide rope

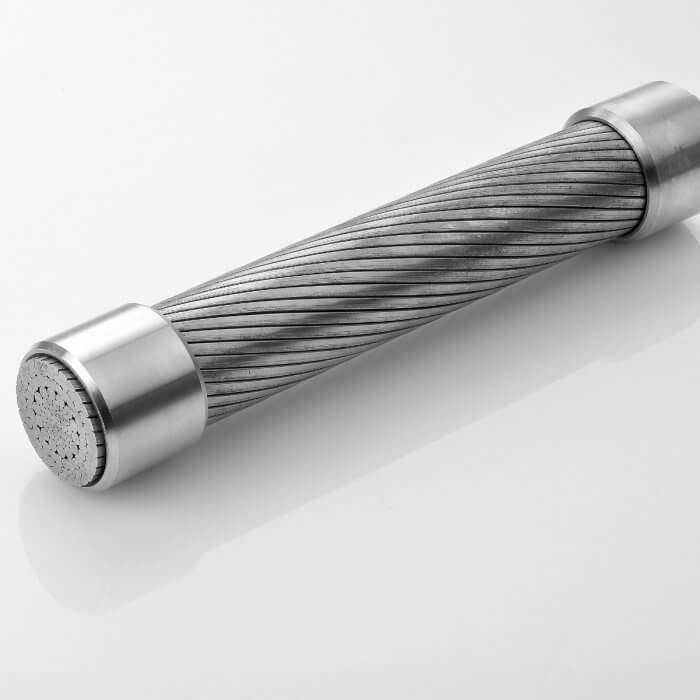

Full-locked coil guide rope of wear resistant high grade materials featuring a stressless rope structure due to STRESSLESS technology.

Specifications

  • Right or left lay, galvanized and bright
  • Example of construction: specifications: 44 mm = 1–6–12–10/10–24Z
  • Certification: EN12385-7; other certificates gladly provided on request

The full-locked coil guide rope from TEUFELBERER is provided with the STRESSLESS technology and excels both in drum hoists and in friction hoist installations all over the world.



In case of wire breakage in the outer layer, the STRESSLESS rope structure achieved by means of the STRESSLESS technology ensures that all wires remain within the rope structure, thus allowing operation to be continued safely and smoothly.



This steel wire rope made of wear resistant high grade materials can be individually adapted to the respective requirements to ensure that the design is optimally balanced in terms of service life, breaking load, etc.



The benefits of the full-locked coil guide rope with STRESSLESS technology are:

  • Big wear-resistant outer wires
  • Very low elongation
  • Closed round rope surface ensuring best guiding properties
  • Due to the STRESSLESS technology, any broken wires in the outer layer will remain within the rope structure (safe and smooth continuation of operation is possible).
  • Rotation resistance making the rope safe and easy to install
  • Optimally harmonized wire dimensions to avoid pipe and arch formation inside the rope
  • Extremely high resistance to external environmental influences and ingress of dirt due to the closed rope surface
Diameter
[mm]
Diameter
[inch]
Weight
[kg/m]
Weight
[lbs/ft]
Minimum breaking force at a tensile strength of 1080 N/mm²
[kN]
Minimum breaking force at a tensile strength of 1080 N/mm²
[lbs]
Minimum breaking force at a tensile strength of 1180 N/mm²
[kN]
Minimum breaking force at a tensile strength of 1180 N/mm²
[lbs]
Minimum breaking force at a tensile strength of 1270 N/mm²
[kN]
Minimum breaking force at a tensile strength of 1270 N/mm²
[lbs]
28 4.47 3.01 493 110,814 539 121,074 580 130,309
30 5.13 3.45 566 127,210 618 138,988 665 149,589
32 1 1/4" 5.84 3.93 644 144,736 703 158,138 757 170,199
34 6.60 4.43 727 163,394 794 178,523 855 192,139
36 7.39 4.97 815 183,182 890 200,143 958 215,408
38 1 1/2" 8.24 5.54 908 204,101 992 222,999 1,068 240,007
40 9.13 6.13 1,006 226,151 1,099 247,090 1,183 265,936
42 1 5/8" 10.06 6.76 1,109 249,331 1,212 272,417 1,304 293,195
44 11.10 7.46 1,224 275,166 1,337 300,581 1,439 323,511
45 1 3/4" 11.50 7.73 1,266 284,608 1,383 310,900 1,489 334,785
48 13.14 8.83 1,449 325,657 1,583 355,810 1,703 382,948
50 14.26 9.58 1,572 353,360 1,717 386,079 1,848 415,525
52 15.43 10.37 1,700 382,194 1,858 417,583 1,999 449,432
53 16.03 10.77 1,766 397,035 1,930 433,798 2,077 466,884
54 2 1/8" 16.64 11.18 1,833 412,159 2,003 450,322 2,156 484,669
56 17.89 12.02 1,972 443,255 2,154 484,297 2,319 521,235
58 19.19 12.90 2,115 475,481 2,311 519,507 2,487 559,131
60 2 3/8" 20.54 13.80 2,263 508,839 2,473 555,953 2,662 598,357
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
