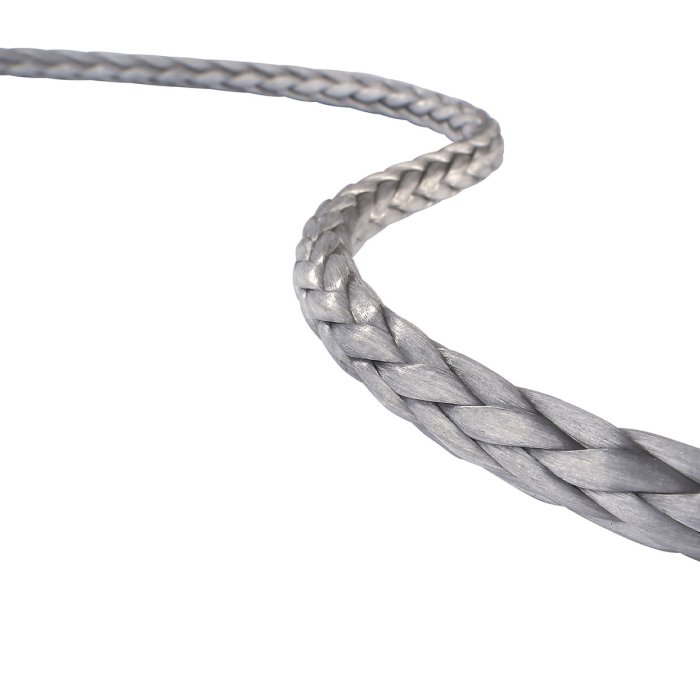

STRATOS® Winch Light

The STRATOS® Winch Light fiber rope is the ideal winch rope for occasional users. It is based on our STRATOS® Winch Pro, but comes without a cover.

Specifications

Rope diameter H (highly compacted): 5-24 mm
Rope diameter S (standard, without compaction): 5-16 mm
Lengths: Variable, made as needed
Material: Dyneema®

STRATOS® Winch Light is the cover-less alternative to our STRATOS® Winch Pro and ideal for hobbyists or part-time users who are looking for serious performance.

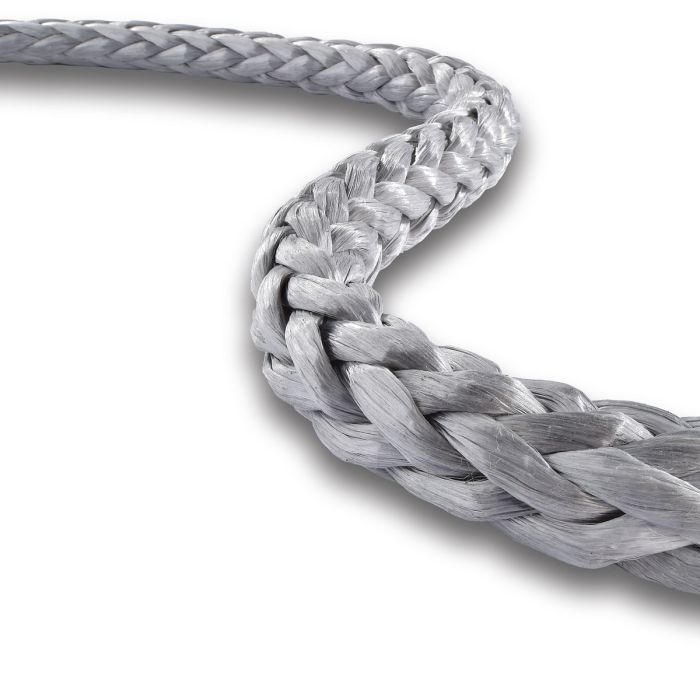

STRATOS® Winch Light H is our highly compacted winch rope offering you a maximum in rope length and breaking force.

STRATOS® Winch Light S is our uncompacted standard version featuring good abrasion strength and breaking force.

Types and areas of use:

  • Hauling rope for add-on winches and skidding winches
Design Rope diameter
[mm]
Min. breaking strength, free length
[kN]
Weight
[g/m]
H (Hochverdichtet/Highly compacted) 5 40 20
H 6 48 25
H 7 70 36
H 8 90 47
H 9 105 59
H 10 120 65
H 11 145 73
H 12 180 101
H 14 235 130
H 15 270 146
H 16 300 176
H 18 355 215
H 20 440 253
H 22 500 270
H 24 600 350
S (Standard) 5 21 15
S 6 35 20
S 7 43 27
S 8 55 34
S 9 72 44
S 10 85 54
S 11 107 65
S 12 125 76
S 14 160 107
S 16 220 144
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
