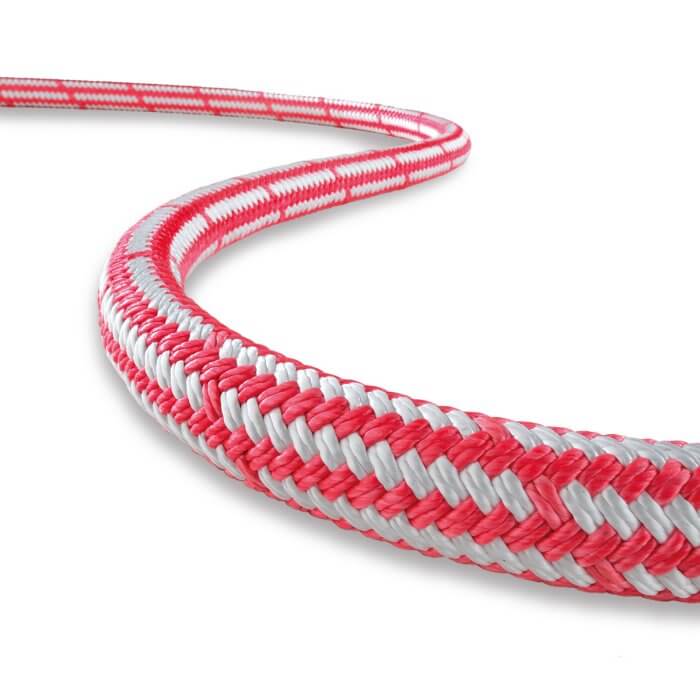

STRATOS® Extension

STRATOS® Extension is the fiber rope from TEUFELBERGER used as a skyline extension in logging operations.

Specifications

Diameter: 23-29 mm
Lengths: 40, 50, and 60 m; other lengths available on request
Construction: Kernmantle rope
Core: Dyneema®
Cover: Dyneema®
Color: Red/Silver

The safe anchoring of skylines for long distance ropeways and tower yarders is a necessary but time-consuming and labor-intensive procedure. Our STRATOS® Extension makes this procedure way more economical and ergonomic.

Unlike STRATOS® Anchor, STRATOS® Extension can be looped directly around trees, resulting in high tensile and frictional loads. Our patented STRATOS® Extension kernmantle rope was engineered specifically for such demanding scenarios and provides maximum robustness and longevity.

It is delivered on wooden reels with two stainless steel thimbles (eye stiffeners) including splices.

Types and areas of use:

  • Skyline extension
Rope diameter
[mm]
Core diameter
[mm]
Min. breaking strength, free length
[kN]
Weight
[g/m]
23 18 355 323
25 20 440 355
29 24 550 517
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
