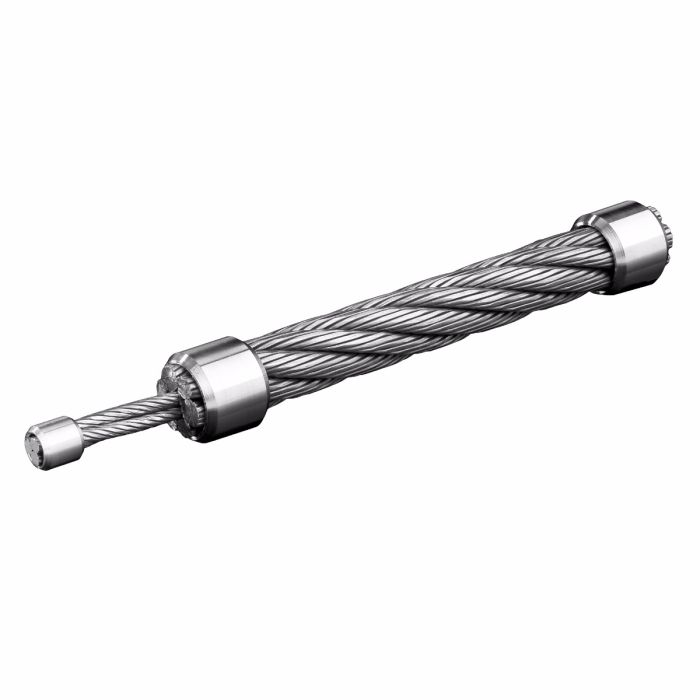

PERFECTION F30 – Woodrunner
PERFECTION F30 – Woodrunner is our steel wire rope developed specifically for forestry use.
Specifications
Diameter: 10.5-26 mm
Construction: 6 x K19-PWRC, RCN 04
Rope grade: 1960
Compaction: Strand compaction (SUPERFILL®)
Surface: Blank
Standard: EN 12385-4
The construction of our PERFECTION F30 - Woodrunner rope is engineered specifically for forestry use. Its high breaking force in the respective diameter range translates into greater safety without a diameter increase. Rope-friendly SUPERFILL® strand compaction (no damage to the rope core) gives the rope high abrasion resistance and a smooth surface.
Types and areas of use:
- Skyline for tower yarders and long distance winches
- Skyline extension
- Hauling and haulback rope for tower yarders and long distance winches
- Hauling rope for add-on winches and skidding winches
| Diameter [mm] | Minimum breaking force at a tensile strength of 1960 N/mm² [kN] | Weight [kg/m] | Aluminum ferrule size | Standard codes | |
|---|---|---|---|---|---|
| 10.50 | 119 | 0.54 | 12 | S | |
| 11 | 130 | 0.59 | 13 | N | |
| 11.50 | 143 | 0.65 | 13 | S | |
| 12 | 155 | 0.70 | 14 | N | |
| 13 | 182 | 0.83 | 16 | N | |
| 14 | 211 | 0.94 | 18 | S | |
| 15 | 242 | 1.10 | 18 | N | |
| 16 | 276 | 1.26 | 20 | N | |
| 17 | 311 | 1.41 | 20 | S | |
| 18.50 | 369 | 1.68 | 22 | S | |
| 20.50 | 453 | 2.05 | 24 | S | |
| 22 | 501 | 2.35 | 26 | S | |
| 22.50 | 546 | 2.48 | 26 | N | |
| 24 | 621 | 2.82 | 28 | N | |
| 26 | 728 | 3.30 | 30 | N |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
