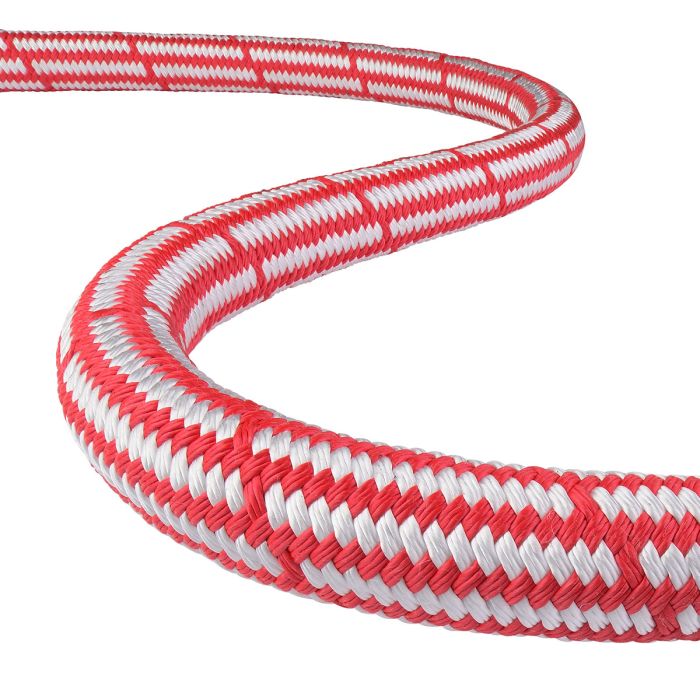

HyperTEN+

Technical fiber rope

HyperTEN+ is a thermally pre-stretched high-end fiber rope made of original Dyneema® SK78 fibers. It is mainly used in industrial applications that require the highest breaking forces, resistance to bending fatigue and the lowest elongation at low weight.

Specifications

Diameter: 3-34 mm

STS - Stronger Than Steel® technology

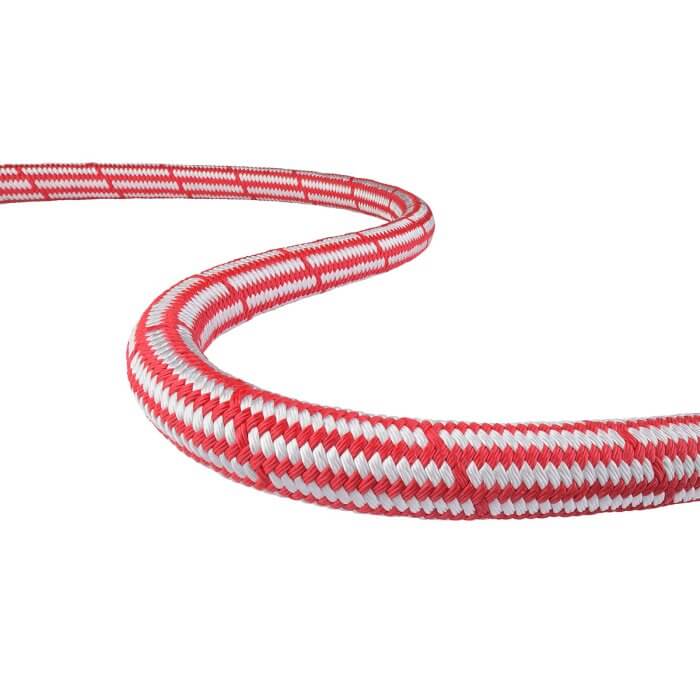

Cover: optionally available with PES (HyperTEN+ Pro-P), UHMWPE (HyperTEN+ Pro-U), or as XBO variant (HyperTEN+ XBO)

Core: Dyneema® SK78, thermally pre-stretched

Colours:

  • Cover: various colours and/or colour combinations possible
  • Core: silver grey



Certification possible for the lifting of loads acc. to the Machinery Directive 2006/42/EC as amended



Made in

In addition to very low weight, this superlative fibre rope offers maximum breaking strength and reduced UHMWPE-typical creep properties.



Produced with STS-Stronger Than Steel® technology.

When looking for particularly high-performing ropes, one automatically thinks of steel wire ropes. But now we have STS – Stronger Than Steel®. Conceived and constructed by TEUFELBERGER’s development team, this fiber rope is not only much lighter than a steel wire rope, but also much more effective.



This is made possible by a combination of high-tech fibers, an optimized rope design, and an innovative pre-stretching process. This process lends highest breaking forces to the rope that, combined with minimal weight and diameter, make it ideally suited for a variety of industrial applications.



HyperTEN+ is optionally available with PES (HyperTEN+ Pro-P), UHMWPE (HyperTEN+ Pro-U) cover or as an XBO variant (HyperTEN+ XBO), which impresses with maximum resistance to bending cycles.



HyperTEN+ is of course specifically adapted to your application. Individual end connections such as

✔ Splice with or without plastic, steel, stainless steel or tubular thimble,

✔ End bond,

✔ Stitching,

✔ Swaging,

✔ Tapered end and

✔ [Slaice]®

are the perfect link between the rope and your attachment point.



HyperTEN+ offers the following advantages and features:

✔ Made of original Dyneema® SK78 fiber

✔ 1/7 of the weight of comparable steel ropes

✔ Highest possible breaking strength - higher than almost all steel ropes on the market with the same diameter

✔ No corrosion or contamination by rope grease

✔ Reduced risk of injury, easy and quick handling

✔ Flexible design

✔ Reduced UHMWPE-typical creep

✔ Completely abrasion resistant due to very smooth surface, especially when provided with a cover

✔ Very low initial and working stretch (already eliminated during the production process)

✔ Features highest flexural fatigue strength and extremely long lifetime – compared to the standard fiber, the XBO variant offers 300 - 400 % more lifetime in terms of bending cycles

✔ Highest running smoothness thanks to the extremely compact cross-section that is very stable under transverse pressure

✔ The kinetic energy unleashed when damage to the rope occurs is significantly lower than with steel wire ropes

HyperTEN+ is used for industrial applications that require the highest breaking forces, flexural fatigue strength, and lowest elongation with minimal weight, such as:

✔ Indoor cranes

✔ Lifting tackles / slings

✔ High-tech winches

✔ High performance ropes for camera systems

✔ Storage and retrieval machines

✔ Static applications that allow lowest elongation and no “creep”

Kern ∅ / Seil ∅ ohne Mantel
[mm]
Seil ∅ mit Mantel
[mm]
Gewicht HyperTEN / HyperTEN+
[g/m]
Gewicht HyperTEN Pro-P / HyperTEN + Pro-P
[g/m]
Gewicht HyperTEN Pro-U / HyperTEN + Pro-U
[g/m]
MBK***
[kN]
3 5 7 15 12 12
4 6 12 22 19 23
5 7 20 47 39 40
6 8 25 53 44 48
7 9 36 69 60 70
8 10 47 84 73 90
9 11 59 100 88 105
10 12 65 105 94 120
11 13 73 114 102 145
12 15 101 171 150 180
14 17 130 217 192 235
15 18 146 237 210 270
16 20 176 293 259 300
18 23 215 381 332 355
20 25 253 454 395 440
22 28 270 507 437 500
24 30 350 629 547 600
26 32 366 650 568 650
28 34 425 710 627 700
30 36 488 792 703 800
32 39 555 936 824 900
34 41 626 1 028 910 1 010
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
