HyperTEN

Mounting rope

The thermally pre-stretched mounting rope HyperTEN features breaking forces and a service life that are equal or even superior to steel wire ropes.

Specifications

Diameter: 3-34 mm
STS - Stronger Than Steel® technology

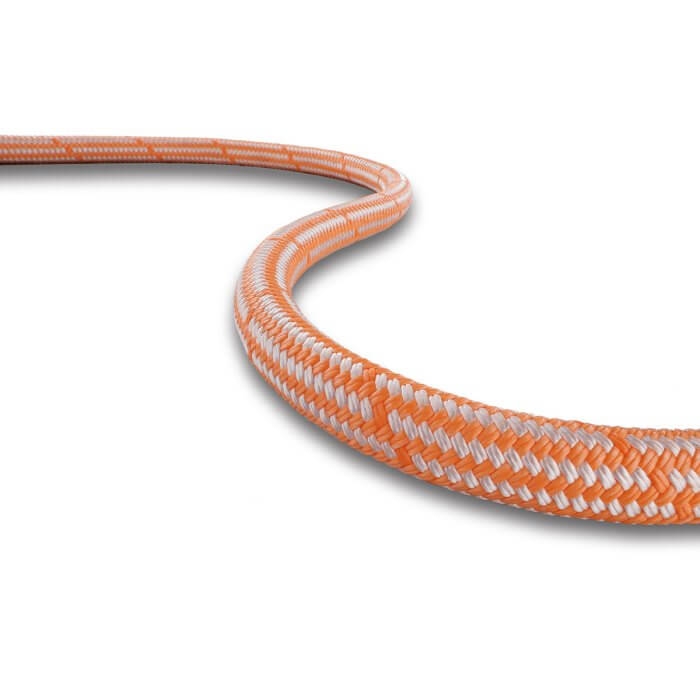

Cover: optionally with PES (HyperTEN-Pro P) or UHMWPE (HyperTEN-Pro U) cover
Core: UHMWPE, thermally pre-stretched
Colors:

  • Cover: various colors and color combinations including longitudinal and torsion markers possible
  • Core: silver gray

Certification possible for the lifting of loads acc. to the Machinery Directive 2006/42/EC as amended

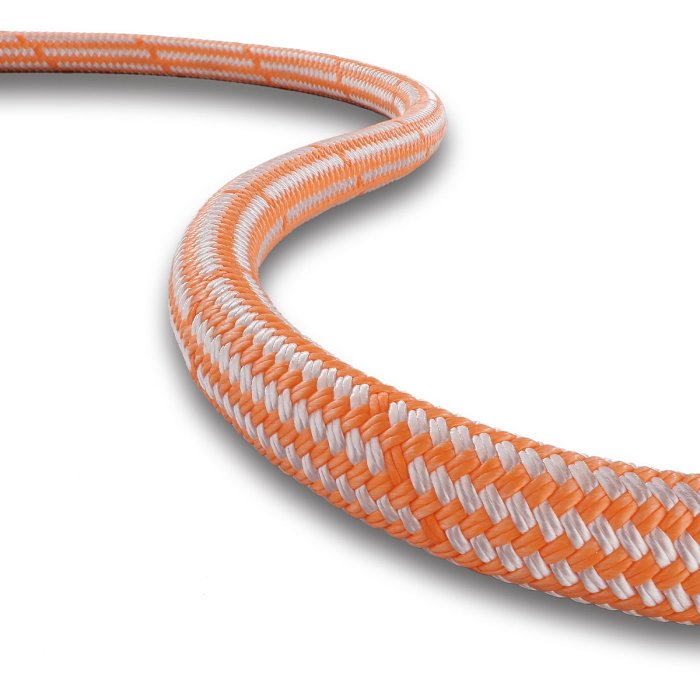

Our HyperTEN mounting rope is a thermally pre-stretched fiber rope made of UHMWPE fibers. The fiber rope is available either with a PES or a UHMWPE cover. This cover can be optionally provided with torsion markers which immediately indicate any twisting of the rope during work. Longitudinal markers in the cover permit the easy visual detection of any damage in the core. Highest dimensional stability under lateral pressure allows the safe tensioning of the mounting rope by means of commercial clamping jaws for steel wire ropes.


The benefits of our HyperTEN:

  • 1/7 of the weight of comparable steel wire ropes
  • Extremely high breaking force - higher than that of most steel wire ropes of the same diameter available in the market
  • No corrosion and/or soiling caused by rope grease
  • No danger of injury, easy and quick handling
  • Flexible design
  • Supreme abrasion resistance due to smooth surface, especially when provided with a cover
  • Very high bending fatigue strength and extremely long service life
  • The kinetic energy released on rope damage is considerably lower than in case of steel wire ropes.
  • Very low initial and working stretch (already eliminated during production)

HyperTEN is used as a mounting rope in various applications. It is especially suitable when used as

  • Rope for utility line construction
  • Pulling line for ropeway construction
  • Rope for motor winches

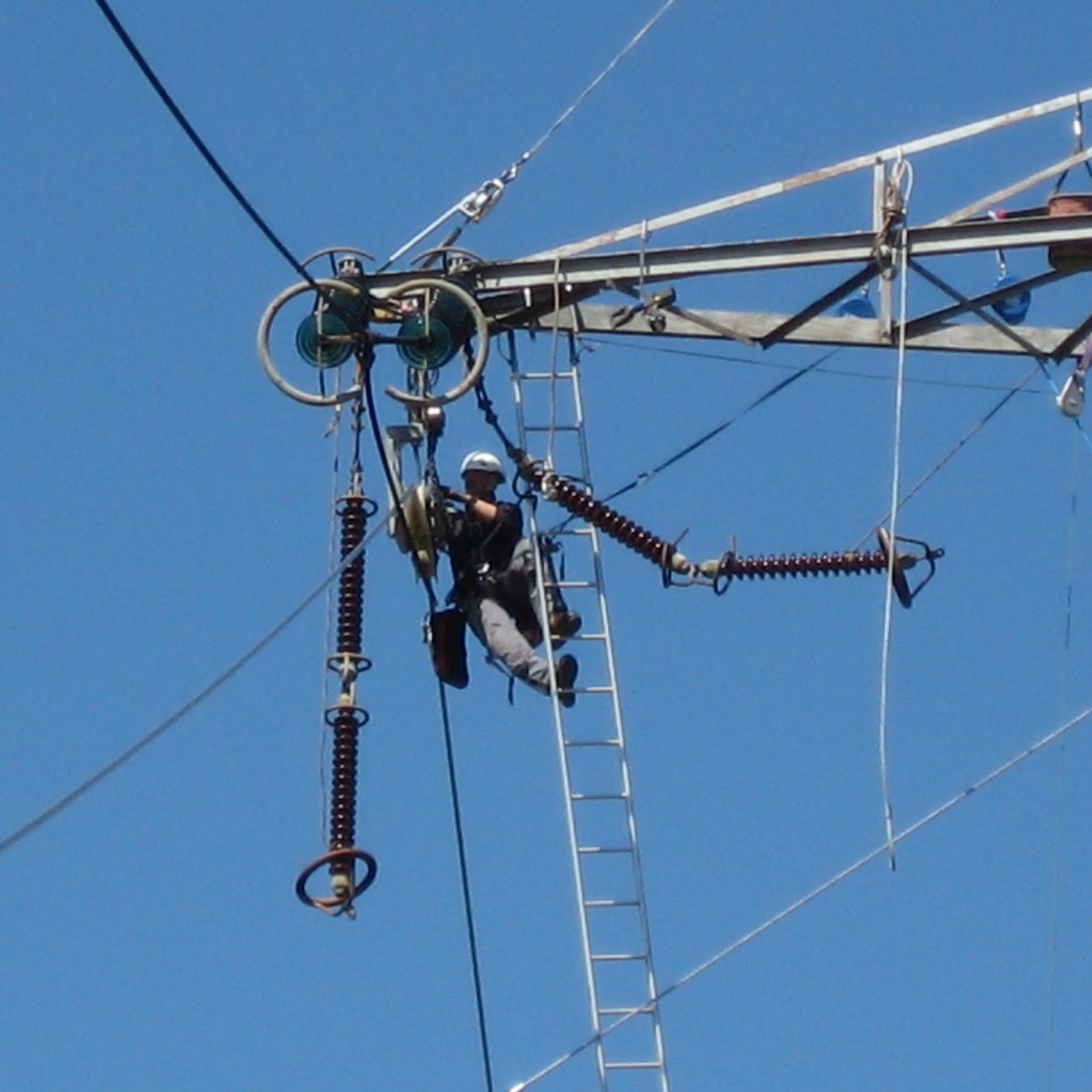

Ropes for utility line construction

For example, our HyperTEN is ideally suited as

  • Spill winch or drum winch pilot rope
  • Helicopter pilot rope
  • Drone pilot rope/li>
  • Pilot rope for buried cable installation
  • Auxiliary winch rope

Faserseil für den Leitungsbau

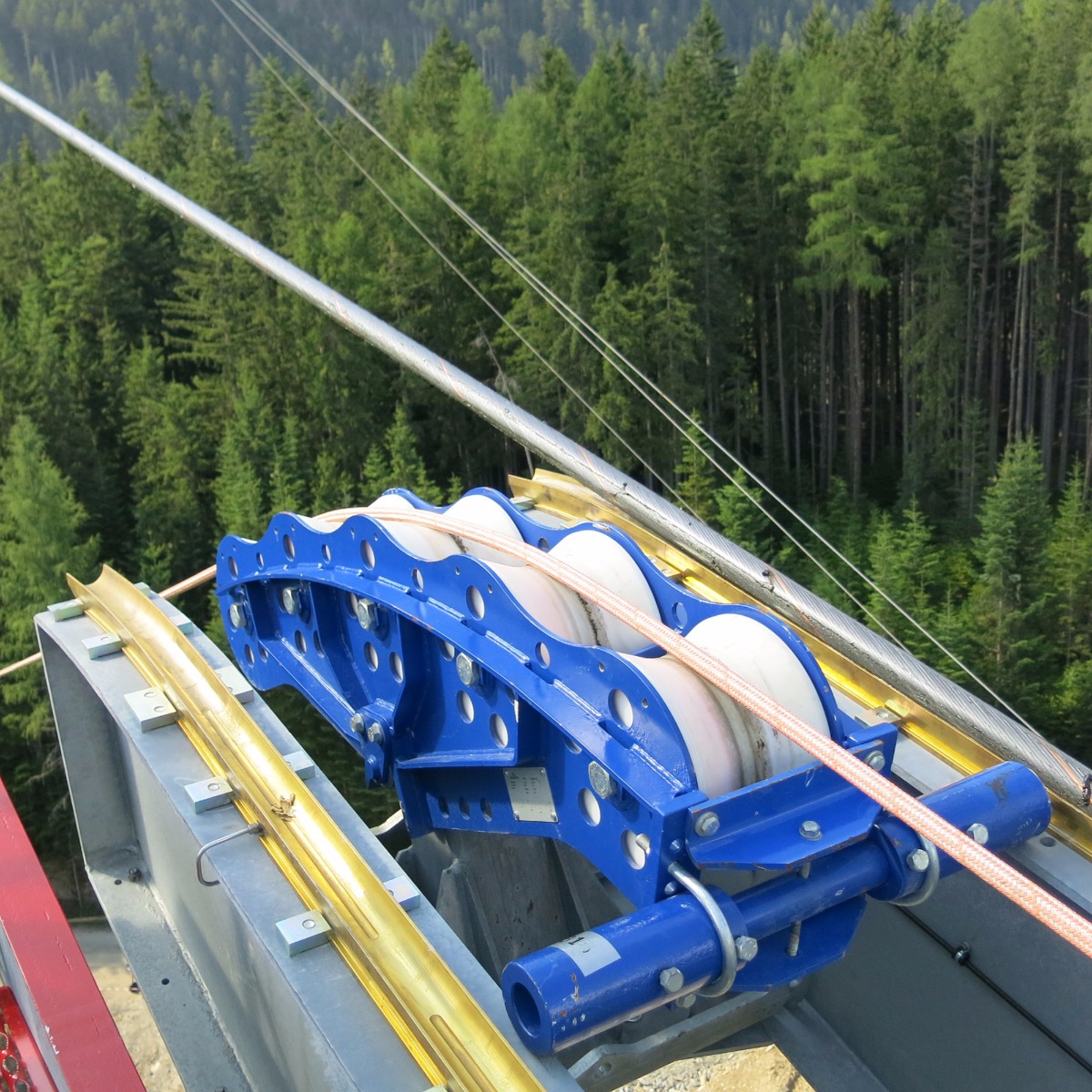

Pulling lines for ropeway construction

For example, our HyperTEN is ideally suited as

  • Spill winch or drum winch pilot rope
  • Helicopter pilot rope
  • Drone pilot rope
  • Auxiliary winch rope

Vorzugsseile für den Seilbahnbau

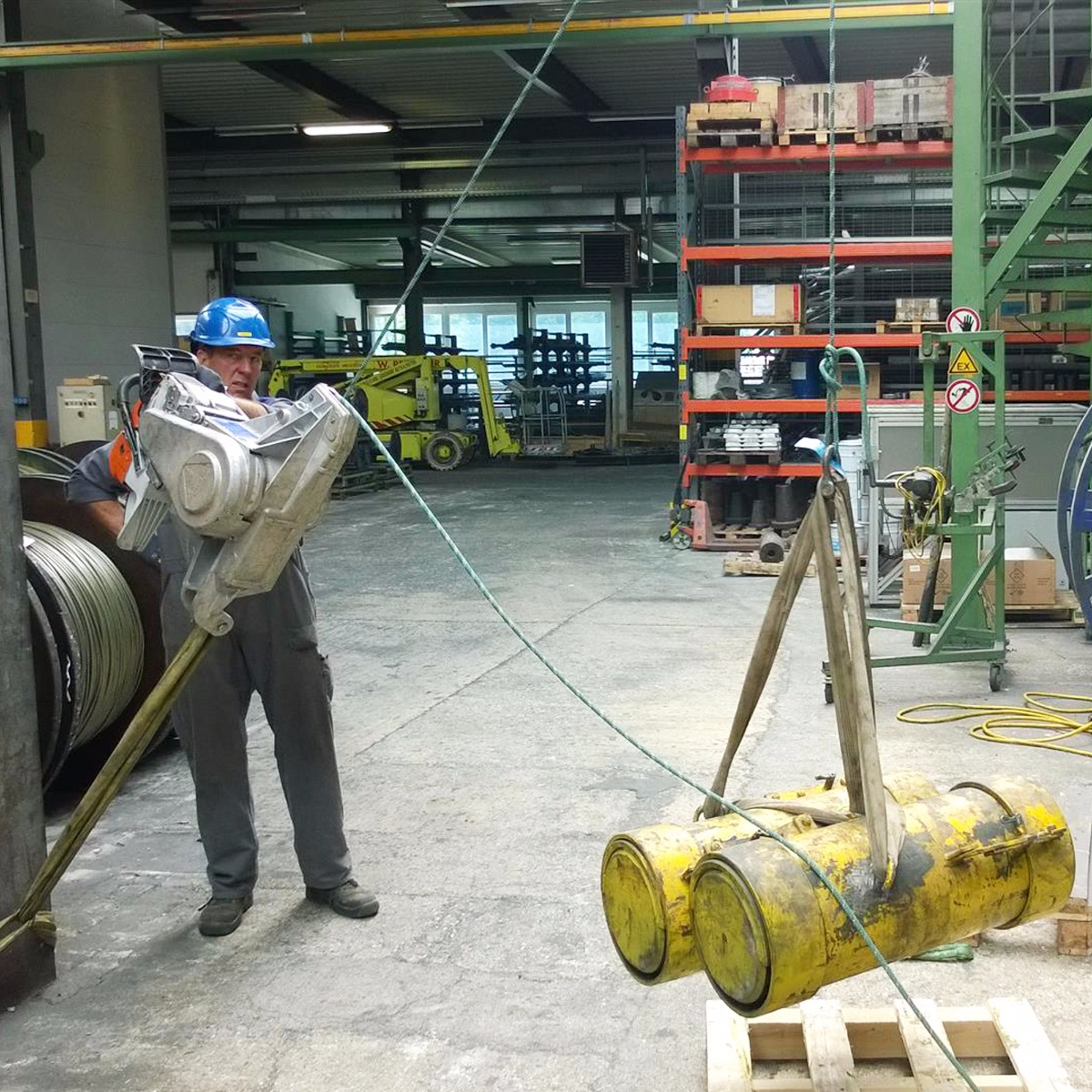

Ropes for motor winches

Our HyperTEN is ideally suited for use in drum winches or spill winches.

Faserseil für Motorwinden

HyperTEN Rope-Diameter
[mm]
HyperTEN Weight
[g/m]
HyperTEN Pro-P / Pro-U Core-Diameter
[mm]
HyperTEN Pro-P Rope-Diameter
[mm]
HyperTEN Pro-P Weight
[g/m]
HyperTEN Pro-U Rope-Diameter
[mm]
HyperTEN Pro-U Weight
[g/m]
HyperTEN / HyperTEN Pro Min. breaking strength, spliced
[kN]
3 9 3 5 20 5 15 21
5 19 5 7 42 7 31 40
6 26 6 8 57 8 44 50
7 36 7 9 77 9 58 70
8 49 8 10 98 10 72 90
9 60 9 11 109 11 84 94
10 64 10 12 127 12 96 115
11 76 11 13 165 13 124 135
12 100 12 15 204 15 151 180
14 125 14 17 250 17 188 235
15 146 15 18 286 18 212 250
16 156 16 20 300 20 224 280
18 199 18 23 410 23 301 355
20 209 20 25 445 25 331 440
22 260 22 28 495 28 370 505
24 329 24 30 635 30 470 550
26 366 26 32 790 32 587 610
28 425 28 34 878 34 670 700
30 488 30 36 990 36 756 800
32 555 32 39 1,105 39 846 900
34 626 34 41 1,230 41 939 1,010
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
