Flexpack® Mining(P)
Bests-in-class 35x7 heavy duty wire rope
Best-in-class 35x7 rotation resistant rope for use in a vast variety of heavy duty underground mining applications in challenging environments.
Specifications
-
Kreuzschlag oder Gleichschlag, rechts- und linksgängig
- 19 – 40 mm: 15xK7-EPIWRC(K) (oder IWRC(K)
- 41 – 65 mm: 18xK7-EPIWRC(K) (oder IWRC(K)
- Konformität: EN 12385-6 (andere Normen auf Anfrage erhältlich)
- Verwendung mit oder ohne Seilwirbel
- Ausführung des Seils: blank, verzinkt Klasse B, ZnAl
✔ SUPERFILL®
✔ PLASTFILL®

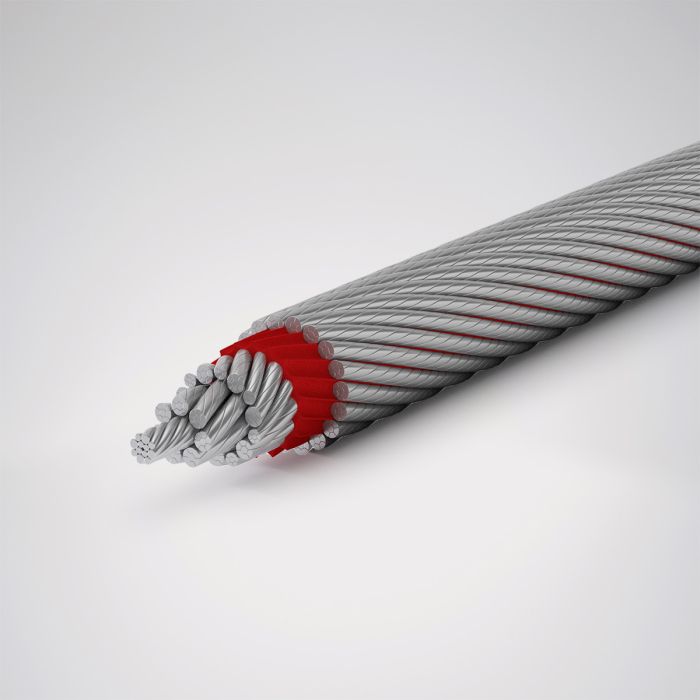

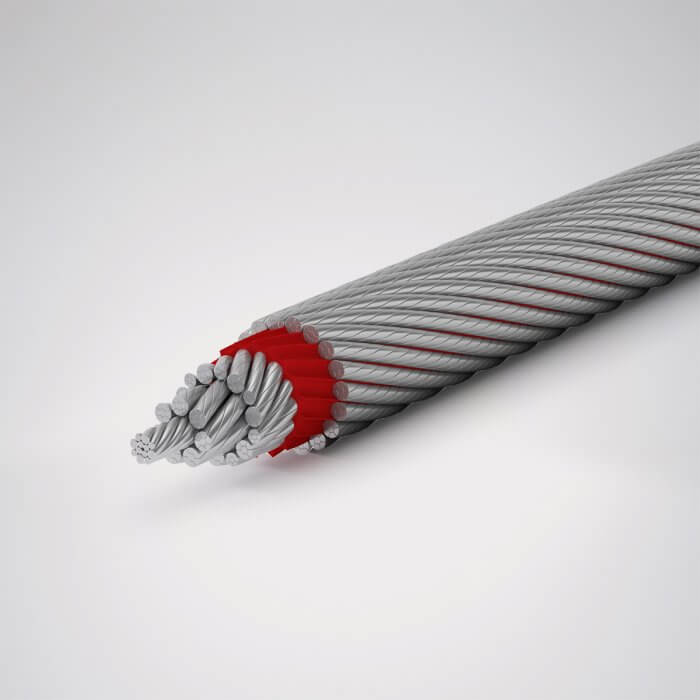

15- or 18-strand rotation-resistant rope with optional PLASTFILL® insert between the steel core and the outer strands. All strands are compacted with Teufelberger-Redaelli SUPERFILL® compaction technology, which significantly increases the rope's wear resistance and breaking strength. Suitable for use with friction and drum winders.
Advantages
- Rotation resistant
- High breaking force
- High resistance to wear and drum crushing
- Good flexibility and bending fatigue performance
- Very low rope elongation
- Excellent radial stability
- Improved shock resistance with PLASTFILL®
| Kunstruktion | Diameter | Außendurchmesser | Weight | Berechnete (=min. aggregierte) Bruchkraft | Minimum breaking force | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1570 N/mm² | 1770 N/mm² | 1960 N/mm² | 1570 N/mm² | 1770 N/mm² | 1960 N/mm² | ||||||||||||
| [mm] | [inch] | [mm] | [kg/m] | [lbs/ft] | [kN] | [lbf] | [kN] | [lbf] | [kN] | [lbf] | [kN] | [lbf] | [kN] | [lbf] | [kN] | [lbf] | |
| 15xK7-IWRC(K) or 15xK7-EPIWRC(K) | 19 | 3/4 | 1.20 | 1.86 | 1.25 | 372 | 83.615 | 419 | 94.267 | 464 | 104.386 | 285 | 64.046 | 321 | 72.204 | 353 | 79.331 |
| 15xK7-IWRC(K) or 15xK7-EPIWRC(K) | 20 | 1.26 | 2.06 | 1.38 | 412 | 92.649 | 465 | 104.451 | 514 | 115.663 | 316 | 70.965 | 356 | 80.005 | 391 | 87.901 | |
| 15xK7-IWRC(K) or 15xK7-EPIWRC(K) | 21 | 1.33 | 2.27 | 1.52 | 454 | 102.145 | 512 | 115.157 | 567 | 127.519 | 348 | 78.239 | 392 | 88.205 | 431 | 96.911 | |
| 15xK7-IWRC(K) or 15xK7-EPIWRC(K) | 22 | 1.39 | 2.49 | 1.67 | 499 | 112.105 | 562 | 126.386 | 623 | 139.952 | 382 | 85.867 | 431 | 96.806 | 473 | 106.360 | |
| 15xK7-IWRC(K) or 15xK7-EPIWRC(K) | 22.23 | 7/8 | 1.40 | 2.54 | 1.71 | 509 | 114.410 | 574 | 128.984 | 635 | 142.830 | 390 | 87.633 | 439 | 98.796 | 483 | 108.547 |
| 15xK7-IWRC(K) or 15xK7-EPIWRC(K) | 23 | 1.45 | 2.72 | 1.83 | 545 | 122.528 | 614 | 138.136 | 680 | 152.965 | 417 | 93.851 | 471 | 105.807 | 517 | 116.249 | |
| 15xK7-IWRC(K) or 15xK7-EPIWRC(K) | 24 | 1.52 | 2.96 | 1.99 | 593 | 133.414 | 669 | 150.409 | 741 | 166.555 | 455 | 102.189 | 512 | 115.207 | 563 | 126.577 | |
| 15xK7-IWRC(K) or 15xK7-EPIWRC(K) | 25 | 1.58 | 3.21 | 2.16 | 644 | 144.763 | 726 | 163.205 | 804 | 180.724 | 493 | 110.883 | 556 | 125.008 | 611 | 137.345 | |
| 15xK7-IWRC(K) or 15xK7-EPIWRC(K) | 25.40 | 1.00 | 1.61 | 3.32 | 2.23 | 665 | 149.433 | 749 | 168.469 | 830 | 186.553 | 509 | 114.459 | 574 | 129.040 | 631 | 141.775 |
| 15xK7-IWRC(K) or 15xK7-EPIWRC(K) | 26 | 1.64 | 3.47 | 2.33 | 696 | 156.576 | 785 | 176.522 | 869 | 195.471 | 533 | 119.931 | 601 | 135.208 | 661 | 148.552 | |
| 15xK7-IWRC(K) or 15xK7-EPIWRC(K) | 27 | 1.71 | 3.75 | 2.52 | 751 | 168.852 | 847 | 190.362 | 938 | 210.796 | 575 | 129.333 | 649 | 145.809 | 713 | 160.199 | |
| 15xK7-IWRC(K) or 15xK7-EPIWRC(K) | 28 | 1.77 | 4.03 | 2.71 | 808 | 181.591 | 911 | 204.724 | 1 008 | 226.700 | 619 | 139.091 | 698 | 156.810 | 766 | 172.286 | |
| 15xK7-IWRC(K) or 15xK7-EPIWRC(K) | 28.58 | 1 1/8 | 1.81 | 4.20 | 2.82 | 841 | 189.126 | 948 | 213.219 | 1 050 | 236.106 | 644 | 144.862 | 726 | 163.316 | 798 | 179.434 |
| 15xK7-IWRC(K) or 15xK7-EPIWRC(K) | 29 | 1.83 | 4.32 | 2.90 | 866 | 194.794 | 977 | 219.608 | 1 082 | 243.182 | 664 | 149.204 | 748 | 168.210 | 822 | 184.812 | |
| 15xK7-IWRC(K) or 15xK7-EPIWRC(K) | 30 | 1.90 | 4.63 | 3.11 | 927 | 208.459 | 1 045 | 235.015 | 1 158 | 260.242 | 710 | 159.671 | 801 | 180.011 | 880 | 197.777 | |
| 15xK7-IWRC(K) or 15xK7-EPIWRC(K) | 31 | 1.96 | 4.94 | 3.32 | 990 | 222.588 | 1 116 | 250.943 | 1 236 | 277.881 | 758 | 170.493 | 855 | 192.212 | 939 | 211.182 | |
| 15xK7-IWRC(K) or 15xK7-EPIWRC(K) | 31.75 | 1 1/4 | 2.01 | 5.18 | 3.48 | 1039 | 233.489 | 1 171 | 263.233 | 1 297 | 291.489 | 796 | 178.842 | 897 | 201.625 | 985 | 221.524 |
| 15xK7-IWRC(K) or 15xK7-EPIWRC(K) | 32 | 2.02 | 5.26 | 3.54 | 1055 | 237.180 | 1 189 | 267.394 | 1 317 | 296.098 | 808 | 181.670 | 911 | 204.813 | 1 001 | 225.026 | |
| 15xK7-IWRC(K) or 15xK7-EPIWRC(K) | 33 | 2.09 | 5.60 | 3.76 | 1122 | 252.236 | 1 265 | 284.368 | 1 401 | 314.893 | 859 | 193.202 | 969 | 217.813 | 1 065 | 239.310 | |
| 15xK7-IWRC(K) or 15xK7-EPIWRC(K) | 34 | 2.15 | 5.94 | 3.99 | 1191 | 267.754 | 1 343 | 301.863 | 1 487 | 334.267 | 912 | 205.088 | 1 028 | 231.214 | 1 130 | 254.034 | |
| 15xK7-IWRC(K) or 15xK7-EPIWRC(K) | 35 | 1 3/8 | 2.21 | 6.30 | 4.23 | 1262 | 283.736 | 1 423 | 319.881 | 1 576 | 354.219 | 967 | 217.330 | 1 090 | 245.015 | 1 197 | 269.196 |
| 15xK7-IWRC(K) or 15xK7-EPIWRC(K) | 36 | 2.28 | 6.66 | 4.48 | 1335 | 300.181 | 1 505 | 338.421 | 1 667 | 374.749 | 1 023 | 229.926 | 1 153 | 259.216 | 1 267 | 284.799 | |
| 15xK7-IWRC(K) or 15xK7-EPIWRC(K) | 37 | 2.34 | 7.04 | 4.73 | 1410 | 317.090 | 1 590 | 357.483 | 1 761 | 395.857 | 1 080 | 242.877 | 1 218 | 273.817 | 1 338 | 300.841 | |
| 15xK7-IWRC(K) or 15xK7-EPIWRC(K) | 38 | 1 1/2 | 2.40 | 7.42 | 4.99 | 1488 | 334.461 | 1 677 | 377.068 | 1 857 | 417.544 | 1 140 | 256.183 | 1 285 | 288.818 | 1 412 | 317.322 |
| 15xK7-IWRC(K) or 15xK7-EPIWRC(K) | 39 | 2.47 | 7.82 | 5.25 | 1567 | 352.296 | 1 767 | 397.175 | 1 956 | 439.809 | 1 200 | 269.844 | 1 353 | 304.219 | 1 487 | 334.243 | |
| 15xK7-IWRC(K) or 15xK7-EPIWRC(K) | 40 | 2.53 | 8.22 | 5.53 | 1648 | 370.594 | 1 858 | 417.804 | 2 058 | 462.653 | 1 263 | 283.859 | 1 424 | 320.020 | 1 564 | 351.604 | |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 41 | 2.18 | 8.41 | 5.65 | 1664 | 374.018 | 1 876 | 421.664 | 2 077 | 466.927 | 1 295 | 291.240 | 1 461 | 328.341 | 1 604 | 360.677 | |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 41.28 | 1 5/8 | 2.20 | 8.52 | 5.73 | 1686 | 379.052 | 1 901 | 427.339 | 2 105 | 473.212 | 1 313 | 295.160 | 1 480 | 332.760 | 1 626 | 365.532 |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 42 | 2.24 | 8.83 | 5.93 | 1746 | 392.486 | 1 968 | 442.484 | 2 180 | 489.982 | 1 359 | 305.620 | 1 533 | 344.552 | 1 684 | 378.486 | |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 43 | 2.29 | 9.25 | 6.22 | 1830 | 411.398 | 2 063 | 463.805 | 2 285 | 513.592 | 1 425 | 320.347 | 1 606 | 361.155 | 1 765 | 396.724 | |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 44 | 2.34 | 9.69 | 6.51 | 1916 | 430.755 | 2 160 | 485.629 | 2 392 | 537.758 | 1 492 | 335.420 | 1 682 | 378.148 | 1 848 | 415.391 | |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 44.45 | 1 3/4 | 2.37 | 9.89 | 6.64 | 1955 | 439.611 | 2 205 | 495.613 | 2 441 | 548.814 | 1 523 | 342.316 | 1 717 | 385.923 | 1 886 | 423.931 |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 45 | 2.40 | 10.13 | 6.81 | 2004 | 450.558 | 2 259 | 507.953 | 2 502 | 562.479 | 1 561 | 350.839 | 1 759 | 395.532 | 1 933 | 434.486 | |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 46 | 2.45 | 10.59 | 7.11 | 2094 | 470.805 | 2 361 | 530.780 | 2 614 | 587.756 | 1 631 | 366.605 | 1 838 | 413.307 | 2 020 | 454.012 | |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 47 | 2.50 | 11.05 | 7.43 | 2186 | 491.497 | 2 465 | 554.108 | 2 729 | 613.589 | 1 702 | 382.718 | 1 919 | 431.472 | 2 108 | 473.966 | |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 47.63 | 1 7/8 | 2.54 | 11.35 | 7.63 | 2245 | 504.656 | 2 531 | 568.943 | 2 802 | 630.016 | 1 748 | 392.964 | 1 971 | 443.023 | 2 165 | 486.655 |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 48 | 2.56 | 11.53 | 7.75 | 2280 | 512.634 | 2 571 | 577.938 | 2 847 | 639.977 | 1 776 | 399.177 | 2 002 | 450.028 | 2 199 | 494.349 | |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 49 | 2.61 | 12.01 | 8.07 | 2376 | 534.217 | 2 679 | 602.270 | 2 967 | 666.920 | 1 850 | 415.983 | 2 086 | 468.974 | 2 292 | 515.161 | |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 50 | 2.66 | 12.51 | 8.40 | 2474 | 556.244 | 2 789 | 627.103 | 3 089 | 694.419 | 1 927 | 433.135 | 2 172 | 488.311 | 2 386 | 536.403 | |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 50.8 | 2 | 2.71 | 12.91 | 8.68 | 2554 | 574.186 | 2 879 | 647.331 | 3 189 | 716.818 | 1 989 | 447.106 | 2 242 | 504.062 | 2 423 | 544.775 |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 51 | 2.72 | 13.01 | 8.74 | 2574 | 578.716 | 2 902 | 652.438 | 3 214 | 722.474 | 2 005 | 450.634 | 2 260 | 508.039 | 2 442 | 549.073 | |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 52 | 2.77 | 13.53 | 9.09 | 2676 | 601.633 | 3 017 | 678.275 | 3 341 | 751.084 | 2 084 | 468.479 | 2 349 | 528.157 | 2 539 | 570.816 | |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 53 | 2.82 | 14.05 | 9.44 | 2780 | 624.996 | 3 134 | 704.613 | 3 471 | 780.249 | 2 165 | 486.670 | 2 441 | 548.667 | 2 638 | 592.981 | |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 54 | 2 1/8 | 2.88 | 14.59 | 9.80 | 2886 | 648.803 | 3 254 | 731.453 | 3 603 | 809.970 | 2 247 | 505.209 | 2 534 | 569.566 | 2 738 | 615.569 |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 55 | 2.93 | 15.13 | 10.17 | 2994 | 673.055 | 3 375 | 758.795 | 3 738 | 840.247 | 2 331 | 524.093 | 2 628 | 590.857 | 2 841 | 638.579 | |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 56 | 2.98 | 15.69 | 10.54 | 3104 | 697.752 | 3 499 | 786.638 | 3 875 | 871.079 | 2 417 | 543.324 | 2 725 | 612.538 | 2 945 | 662.011 | |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 57 | 3.04 | 16.26 | 10.92 | 3216 | 722.894 | 3 625 | 814.983 | 4 014 | 902.467 | 2 504 | 562.902 | 2 823 | 634.609 | 3 051 | 685.866 | |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 57.15 | 2 1/4 | 3.04 | 16.34 | 10.98 | 3233 | 726.704 | 3 644 | 819.278 | 4 036 | 907.223 | 2 517 | 565.869 | 2 838 | 637.954 | 3 067 | 689.480 |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 58 | 3.09 | 16.83 | 11.31 | 3329 | 748.482 | 3 754 | 843.830 | 4 156 | 934.410 | 2 593 | 582.826 | 2 923 | 657.072 | 3 159 | 710.142 | |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 59 | 3.14 | 17.42 | 11.70 | 3445 | 774.514 | 3 884 | 873.178 | 4 301 | 966.909 | 2 683 | 603.097 | 3 024 | 679.925 | 3 269 | 734.841 | |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 60 | 3.20 | 18.01 | 12.10 | 3563 | 800.991 | 4 017 | 903.028 | 4 448 | 999.963 | 2 774 | 623.714 | 3 128 | 703.168 | 3 380 | 759.962 | |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 60.33 | 2 3/8 | 3.21 | 18.21 | 12.23 | 3602 | 809.692 | 4 061 | 912.838 | 4 496 | 1,010,826 | 2 805 | 630.489 | 3 162 | 710.807 | 3 417 | 768.217 |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 61 | 3.25 | 18.62 | 12.51 | 3683 | 827.913 | 4 152 | 933.380 | 4 598 | 1,033,573 | 2 868 | 644.678 | 3 233 | 726.803 | 3 494 | 785.505 | |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 62 | 3.30 | 19.23 | 12.92 | 3804 | 855.281 | 4 289 | 964.233 | 4 750 | 1,067,739 | 2 962 | 665.988 | 3 340 | 750.827 | 3 610 | 811.471 | |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 63 | 3.36 | 19.86 | 13.34 | 3928 | 883.093 | 4 429 | 995.589 | 4 904 | 1,102,460 | 3 059 | 687.645 | 3 448 | 775.243 | 3 727 | 837.858 | |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 63.5 | 2 1/2 | 3.38 | 20.17 | 13.56 | 3991 | 897.166 | 4 499 | 1,011,454 | 4 982 | 1,120,028 | 3 108 | 698.603 | 3 503 | 787.597 | 3 786 | 851.210 |
| 18xK7-IWRC(K) or 18xK7-EPIWRC(K) | 64 | 3.41 | 20.49 | 13.77 | 4054 | 911.350 | 4 570 | 1,027,445 | 5 061 | 1,137,736 | 3 157 | 709.648 | 3 559 | 800.049 | 3 846 | 864.668 | |
| 65 | 3.46 | 21.14 | 14.20 | 4182 | 940.052 | 4 714 | 1,059,804 | 5 220 | 1,173,568 | 3 256 | 731.998 | 3 671 | 825.246 | 3 967 | 891.900 | ||
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
