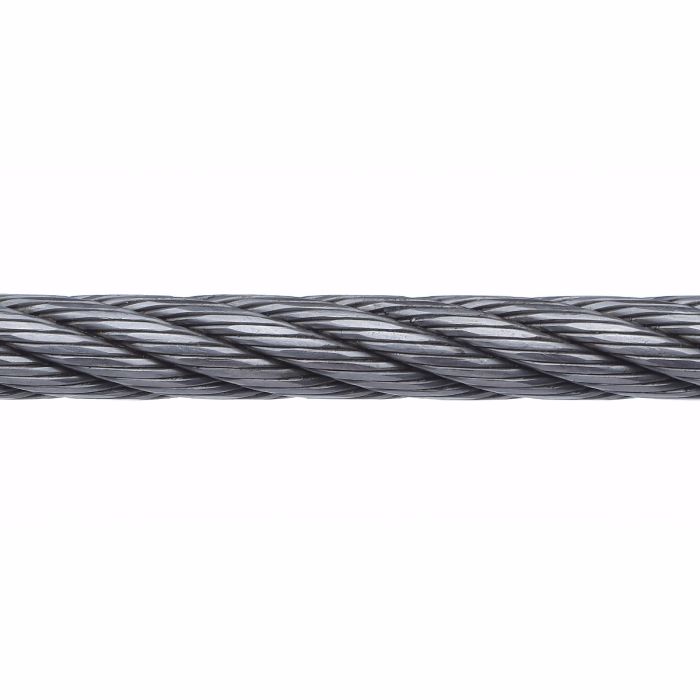

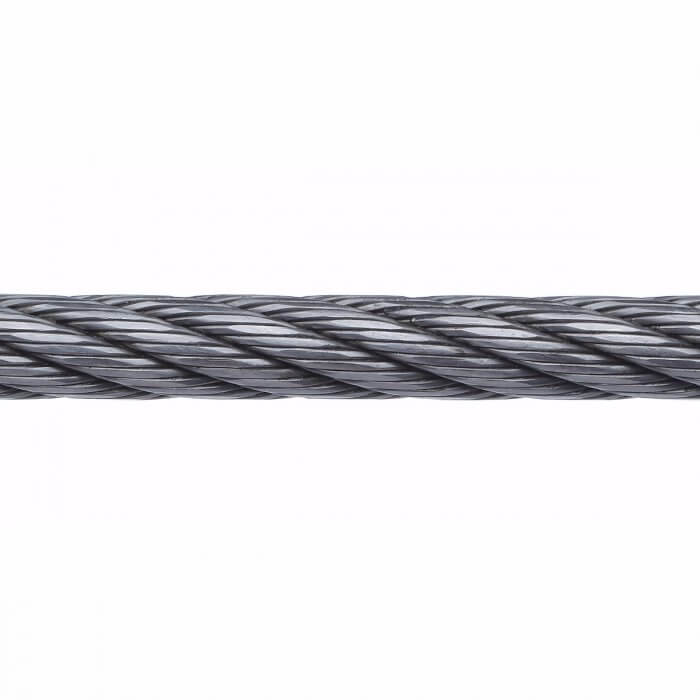

F10
The F10 steel wire rope is a forestry rope that can be used for a variety of forestry activities.
Specifications
Diameter: 6-22 mm
Construction: 6 x K19S IWRC
Rope grade: 1960
Compaction: Rope compaction (hammered)
Surface: Blank
Standard: EN 12385-4
TEUFELBERGER's F10 is a special steel wire rope for a variety of forestry applications. It boasts low twist and excellent flexibility. Furthermore, it is robust when exposed to large fleet angles and provides high breaking force.
Types and areas of use:
- Hauling rope for add-on winches and skidding winches
- Hauling and haulback rope for tower yarders and long distance winches
- Auxiliary and mounting rope for tower yarders
- Hoist rope for carriages
| Diameter [mm] | Minimum breaking force at a tensile strength of 1960 N/mm² [kN] | Weight [kg/m] | Aluminum ferrule size | Standard codes | |
|---|---|---|---|---|---|
| 6 | 37.40 | 0.18 | 7 | N | |
| 7 | 47 | 0.26 | 8 | S | |
| 8 | 66 | 0.37 | 10 | S | |
| 8.50 | 74 | 0.40 | 10 | N | |
| 9 | 81 | 0.45 | 11 | S | |
| 10 | 97 | 0.54 | 12 | S | |
| 11 | 115 | 0.64 | 13 | S | |
| 12 | 133 | 0.75 | 14 | S | |
| 13 | 154 | 0.86 | 16 | S | |
| 14 | 176 | 0.98 | 18 | N | |
| 15 | 201 | 1.09 | 18 | N | |
| 16 | 239 | 1.23 | 20 | N |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
