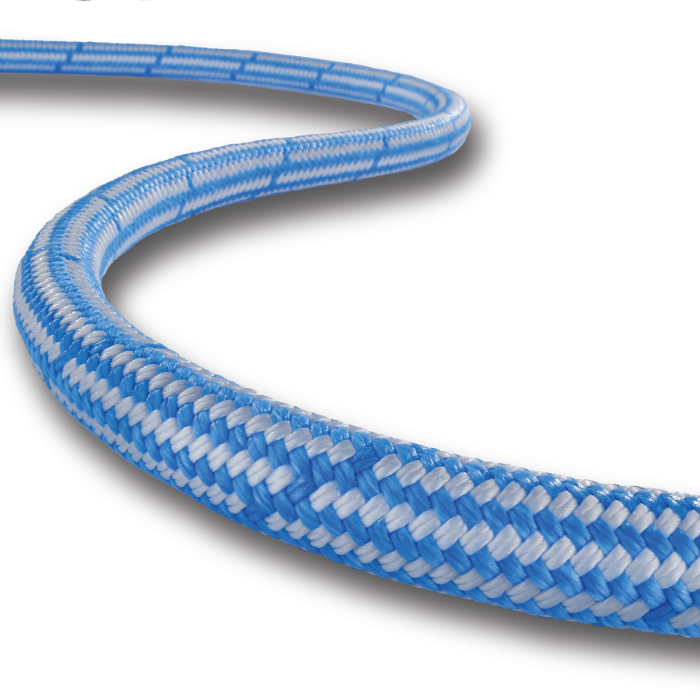

DuraTEN+
The high-performance fiber rope DuraTEN+ offers highest breaking forces, bending cycle resistance and abrasion resistance. This fiber rope serves as an ideal steel rope replacement in industrial applications, without the need to convert or adapt the periphery.
Specifications
Diameter: 5-72 mm
Cover: Optionally with PES (DuraTEN+ Pro-P), without cover or as XBO variant (DuraTEN+ XBO)
Core: Dyneema® SK78, not stretched
Colours:
- Cover: various colours and/or colour combinations possible
- Core: dark grey
Certification possible for the lifting of loads acc. to the Machinery Directive 2006/42/EC as amended
Our high-strength fiber rope DuraTEN+ made of original Dyneema® SK78 fibers offers high strength related to its light weight. High resistance to bending fatigue and a long service life make this rope perfect for high-end applications.
DuraTEN+ is optionally available with PES (DuraTEN+ Pro-P), without cover or as an XBO variant (DuraTEN+ XBO), which impresses with maximum resistance to bending fatigue.
Our high-performance fibre rope DuraTEN+ is of course specifically adapted to your application. Individual end connections such as
✔ Splice with or without plastic, steel, stainless steel or tubular thimble
✔ End bond,
✔ Stitching,
✔ Swaging,
✔ Tapered end, and
✔ [Slaice]®
round off our range perfectly.
DuraTEN+ offers the following advantages and features:
✔ Made of original Dyneema® SK78 fiber
✔ 1/7 of the weight of comparable steel wire ropes
✔ Extremely high breaking force – comparable with the breaking force of a steel wire rope of the same diameter
✔ No corrosion and/or soiling by rope grease
✔ No risk of injury, easy and quick handling
✔ Flexible design
✔ Very high abrasion resistance, especially when provided with a cover
✔ Possesses reduced UHMWPE-typical creep characteristics
✔ Features highest flexural fatigue strength and extremely long lifetime – compared to the standard fiber, the XBO variant offers 300 - 400 % more lifetime in terms of bending cycles
✔ The kinetic energy unleashed when damage to the rope occurs is significantly lower than with steel wire ropes
DuraTEN+ is used for industrial applications which require high breaking forces, flexural fatigue strength, and low elongation in combination with minimal weight, such as:
✔ Indoor cranes
✔ Lifting tackles / slings
✔ High-tech winches
✔ Static applications that allow low elongation and no “creep”
| Kern ∅ / Seil ∅ ohne Mantel [mm] | Seil ∅ mit Mantel [mm] | Gewicht DuraTEN / DuraTEN+ [g/m] | Gewicht DuraTEN Pro-P / DuraTEN + Pro-P [g/m] | MBK*** [kN] | |
|---|---|---|---|---|---|
| 5 | 7 | 15 | 35 | 21 | |
| 6 | 8 | 20 | 42 | 35 | |
| 7 | 9 | 27 | 52 | 43 | |
| 8 | 10 | 34 | 61 | 55 | |
| 9 | 11 | 44 | 75 | 72 | |
| 10 | 12 | 54 | 88 | 85 | |
| 11 | 13 | 65 | 101 | 107 | |
| 12 | 15 | 76 | 137 | 125 | |
| 14 | 17 | 107 | 179 | 160 | |
| 16 | 20 | 144 | 259 | 220 | |
| 18 | 23 | 183 | 332 | 275 | |
| 22 | 28 | 248 | 442 | 378 | |
| 24 | 30 | 291 | 508 | 436 | |
| 26 | 32 | 332 | 569 | 500 | |
| 28 | 34 | 392 | 653 | 591 | |
| 30 | 36 | 445 | 749 | 663 | |
| 33 | 40 | 502 | 902 | 738 | |
| 35 | 42 | 564 | 985 | 823 | |
| 36 | 44 | 620 | 1 050 | 912 | |
| 40 | 48 | 850 | 1 447 | 1 134 | |
| 42 | 50 | 1 042 | 1 657 | 1 343 | |
| 48 | 60 | 1 223 | 2 197 | 1 525 | |
| 52 | 64 | 1 510 | 2 610 | 1 810 | |
| 56 | 68 | 1 704 | 2 848 | 2 148 | |
| 60 | 72 | 1 914 | 3 106 | 2 353 | |
| 64 | 77 | 2 283 | 3 729 | 2 651 | |
| 66 | 82 | 2 405 | 4 255 | 2 800 | |
| 72 | 88 | 2 817 | 4 786 | 3 332 |
