V-12

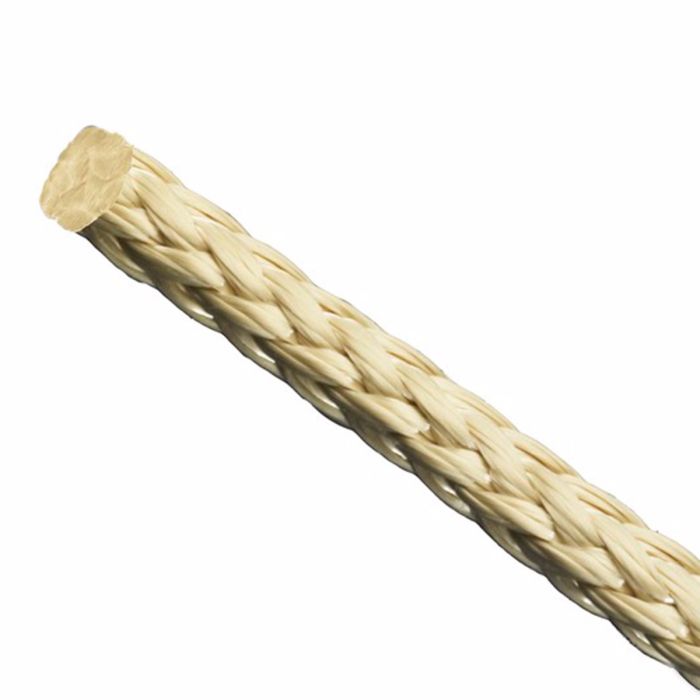

V-12 is a 12-strand single braid of 100% Vectran®. It provides highest strength, lowest stretch and creep of any other 12-strand.

Color Images

  • Tan

V-12 is treated with a proprietary urethane coating for improved abrasion resistance.
This 12-strand single braid provides highest strength, lowest stretch and creep of any other 12-strand.

Features:

  • Good fatigue resistance
  • Easily spliced
  • No creep
  • High temperature resistance
ID Diameter
[mm]
Diameter
[inch]
Circumference Weight
[g/m]
Weight
[lbs/100']
Min. breaking strength
[lbs]
Avg. Breaking strength
[lbs]
3 1/8 6.80 0.46 1,600 2,100
4 5/32 11.90 0.80 2,800 3,300
5 3/16 17.90 1.20 3,500 4,950
6 1/4 3/4 22.30 1.50 5,800 7,200
8 5/16 1.00 49.10 3.30 9,500 10,900
10 3/8 1 1/8 69.90 4.70 14,600 17,000
11 14-Feb 1 1/4 98.20 6.60 23,500 26,000
12 1/2 1 1/2 111.60 7.50 26,000 29,200
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
