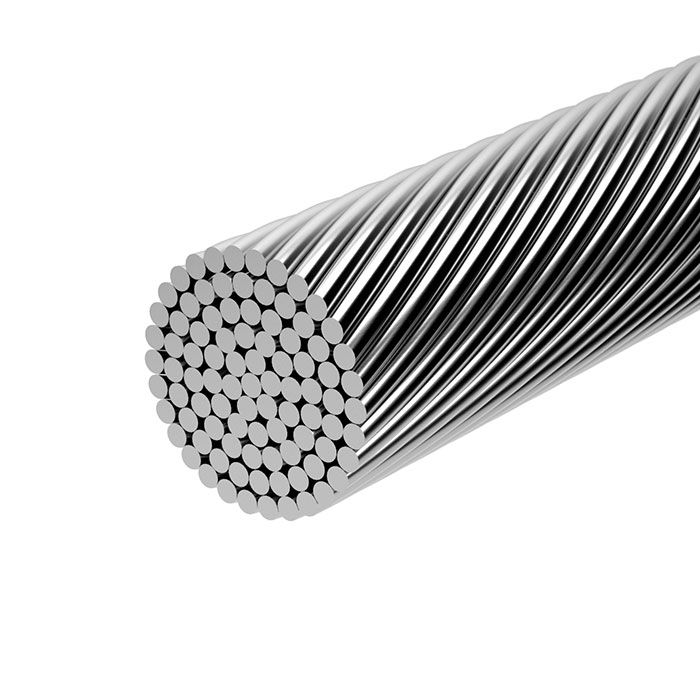

STAINLESS STEEL OPEN SPIRAL STRAND (OSX)

OSX cables are manufactured using layers of helically wound stainless steel round wires around a central core. The standard stainless-steel grade used to produce OSX is 1.4401 (AISI 316). Each wire has a minimum tensile strength of 1470 N/mm2. Stainless steel cables do not need for an internal corrosion inhibitor compound. Therefore, they are usually produced dry or with a light manufacturing oil.

Specifications

  • High axial stiffness
  • High strength to weight ratio
  • High fatigue resistance
  • Torque balanced
  • Teufelberger-Redaelli patented anti-vibration solution (Surface Treatment)

Mechanical characteristics of steel wires:

  • Nominal Tensile Strength    1450 Mpa (after hot dip galvanizing)
  • Proof Stress Rp 0.2             1080 Mpa
  • Modulus of Elasticity            130 ± 10kN/mm²

Teufelberger-Redaelli Stainless Steel Open Spiral Strands (OSX) are manufactured using layers of helically wound stainless steel round wires around a central core.

Each individual wire is tested and verified for tensile strength, ductility, elongation at fracture, bending and torsional properties in accordance with EN 10264. Main properties: high axial stiffness, high strength to weight ratio, high fatigue resistance, torque balanced.

Facades, Cable net roofs and canopies, Cable Stayed bridges, Hangers of Arch bridges, Hangers and main cable of suspension bridges.
