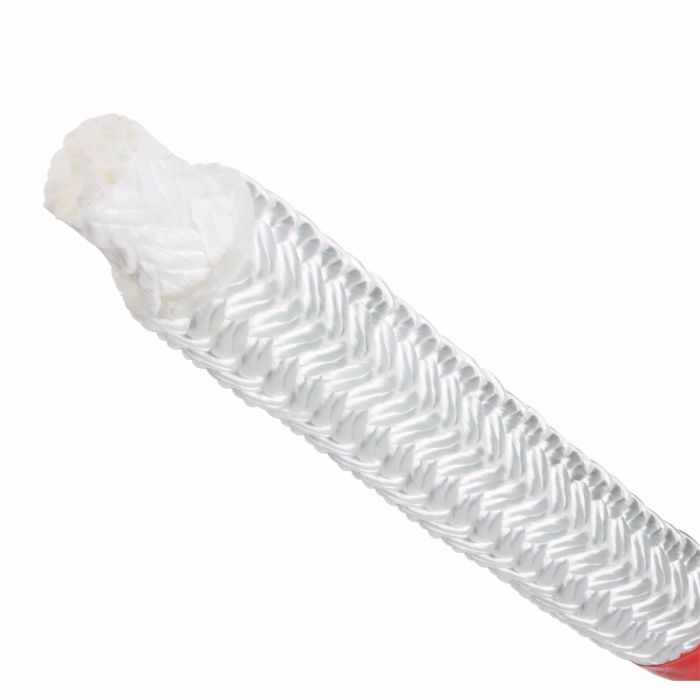

Nylon Double Braid
The most elastic double braid construction available.
Nylon Double Braid’s elasticity makes it great for docking and mooring lines because of its ability to absorb energy.
Color Images
White
Black
Nylon Double Braid has the most elastic double braid construction available. It has excellent energy absorption properties and minimal strength loss due to UV exposure. It conforms to military specification Mil-R-24050 B&C and with twice as much stretch as polyester, Nylon Double Braid is great for docking and mooring lines because of its ability to absorb energy.
Features:
- Excellent shock /energy abs orption
- Durable
- Marine finish a vailable
Our Nylon Double Braid can be used for following applications:
- Dock lines
- Anchor lines
- Hand lines
- Pulling lines
- Slings
- Mooring tails
- Pendant lines
- Shock lines
| ID | Diameter [mm] | Diameter [inch] | Circumference | Weight [g/m] | Weight [lbf/100'] | Min. breaking strength [lbf] | Avg. Breaking strength [lbf] |
|---|---|---|---|---|---|---|---|
| 12 | 1/2 | 1 1/2 | 104.10 | 7 | 7 500 | 8 000 | |
| 14 | 9/16 | 1 3/4 | 136.90 | 9.20 | 10 500 | 12 300 | |
| 16 | 5/8 | 2 | 148.80 | 10 | 11 000 | 13 100 | |
| 18 | 3/4 | 2 1/4 | 223.20 | 15 | 18 900 | 20 500 | |
| 22 | 7/8 | 2 3/4 | 287.10 | 19.30 | 22 000 | 24 750 | |
| 24 | 1 | 3 | 367.50 | 24.70 | 29 200 | 32 750 | |
| 28 | 1 1/8 | 3 1/2 | 513.30 | 34.50 | 35 000 | 43 700 | |
| 30 | 1 1/4 | 3 3/4 | 610 | 41 | 54 000 | 60 250 | |
| 33 | 1 5/16 | 4 | 684.40 | 46 | 66 800 | 74 250 | |
| 38 | 1 1/2 | 4 1/2 | 828.70 | 55.70 | 70 000 | 77 550 | |
| 41 | 1 5/8 | 5 | 1 032.50 | 69.40 | 80 000 | 90 000 | |
| 44 | 1 3/4 | 5 1/2 | 1 202.10 | 80.80 | 96 150 | 102 000 | |
| 51 | 2 | 6 | 1 495.20 | 100.50 | 117 000 | 131 000 | |
| 57 | 2 1/4 | 7 | 1 978.80 | 133 | 150 000 | 166 600 | |
| 63 | 2 1/2 | 7 1/2 | 2 231.70 | 150 | 164 600 | 183 000 | |
| 66 | 2 5/8 | 8 | 2 395.40 | 161 | 176 400 | 196 000 | |
| 70 | 2 7/8 | 9 | 3 035.10 | 204 | 185 100 | 205 750 | |
| 76 | 3 | 9 | 3 392.20 | 228 | 225 000 | 261 000 | |
| 83 | 3 1/4 | 10 | 4 165.80 | 280 | 271 400 | 301 600 |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
