Multiline II

Tack product

Multiline II is our most popular 3-strand rope. It can be used as pack rope and for making hobbles.

Color Images

  • White

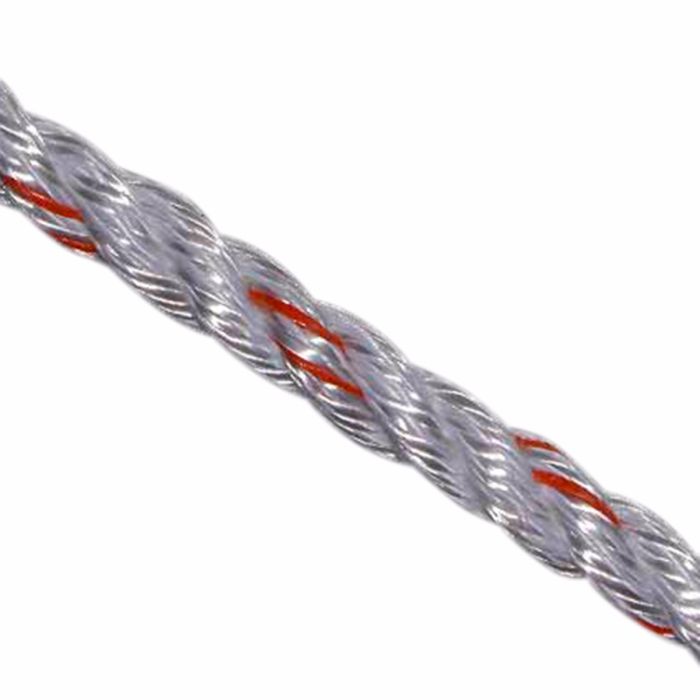

The most popular 3-strand rope is our Multiline II.
It is a composite rope made of polyester yarns wrapped around a core of fibrillated polyolefin in each strand.

Features:

  • Polyolefin keeps line diameter up without adding weight.
  • Very little water absorption
  • Multiline II will not break down from UV exposure
  • Soft, spun polyester is added to the surface for better grip and chafe protection.
  • Characteristics:

Applications:

  • Pack rope
  • Making hobbles

Characteristics:

  • Colors available: White
  • Lengths available: 600

Material specifications:

  • Sunlight/UV: Very little degradation from sunlight. Can be used outside over long term if inspected regularly.
  • Chemicals: Polyester has good resistance to most chemicals, except 95% sulfuric acid and strong alkalines at boil. Polypropylene has excellent resistance to most acids and alkalines, except chlorosulphonic, concentrated sulfuric acids, and chlorinated hydrocarbons at 160°F. Additionally polypropylene withstands most diluted bleaching solutions.
  • Heat: Polyester melts at 480°F with progressive strength loss above 300°F. Polypropylene melts at 330°F with progressive strength loss above 200°F.
  • Dielectrics: Good resistance to the passage of electrical current. However, dirt, surface contaminants, water entrapment, and the like can significantly affect dielectric
  • properties. Extreme caution should be exercised any time a rope is in the proximity of live circuits.
  • Sheaves: N/A
  • Working loads: No blanket safe working load (SWL) recommendations can be made for any line because SWL's must be calculated based on application, conditions of use, and potential danger to personnel among other considerations. It is recommended that the end user establish working loads and safety factors based on best practices established by the end user's industry; by professional judgment and personal experience; and after thorough assessment of all risks. The SWL is a guideline for the use of a rope in good condition for non-critical applications and should be reduced where life, limb, or valuable property is involved, or in cases of exceptional service such as shock loading, sustained loading, severe vibration, etc. The Cordage Institute specifies that the SWL of a rope shall be determined by dividing the Minimum Tensile Strength of the rope by a safety factor. The safety factor ranges from 5 to 12 for non-critical uses and is typically set at 15 for life lines.
Diameter
[inch]
Diameter
[mm]
Weight
[lbs/100']
Weight
[g/m]
Tensile
[lbs]
Tensile
[kg]
3/8" 10 4.20 62.50 3,500 1,588
7/16" 11 4.70 69.90 4,300 1,951
1/2" 12 6.70 99.70 6,700 3,040
5/8" 16 10.40 154.70 9,800 4,446
3/4" 18 14.50 215.70 13,300 6,034
7/8" 22 17.90 266.30 15,200 6,897
1" 24 21.10 313.90 19,100 8,666
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal.
